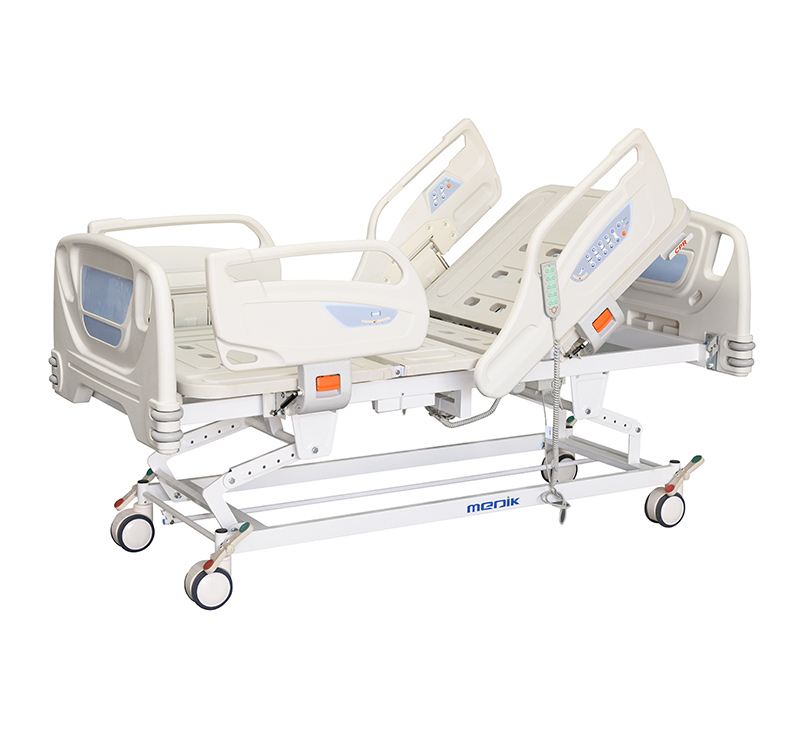

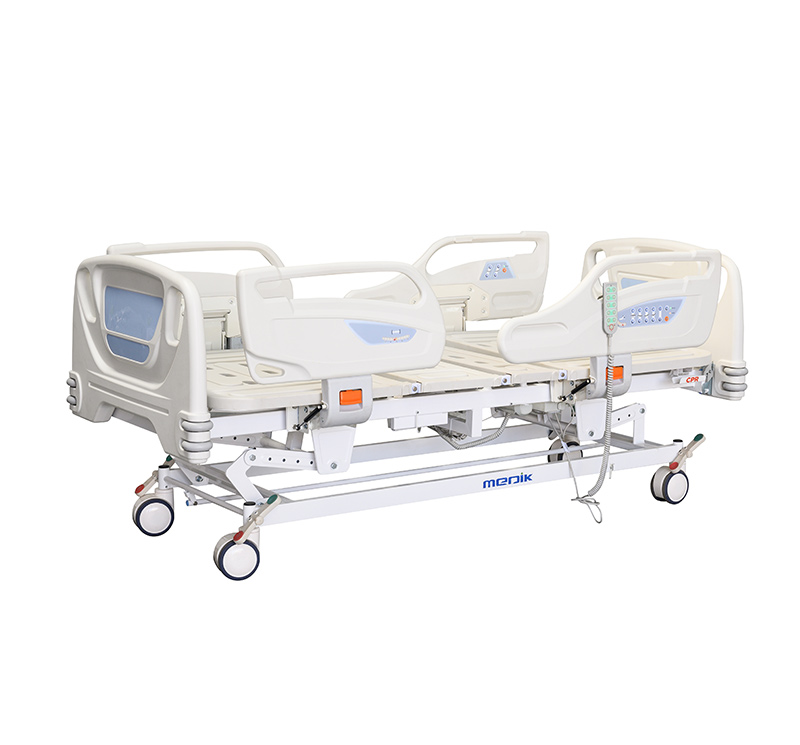

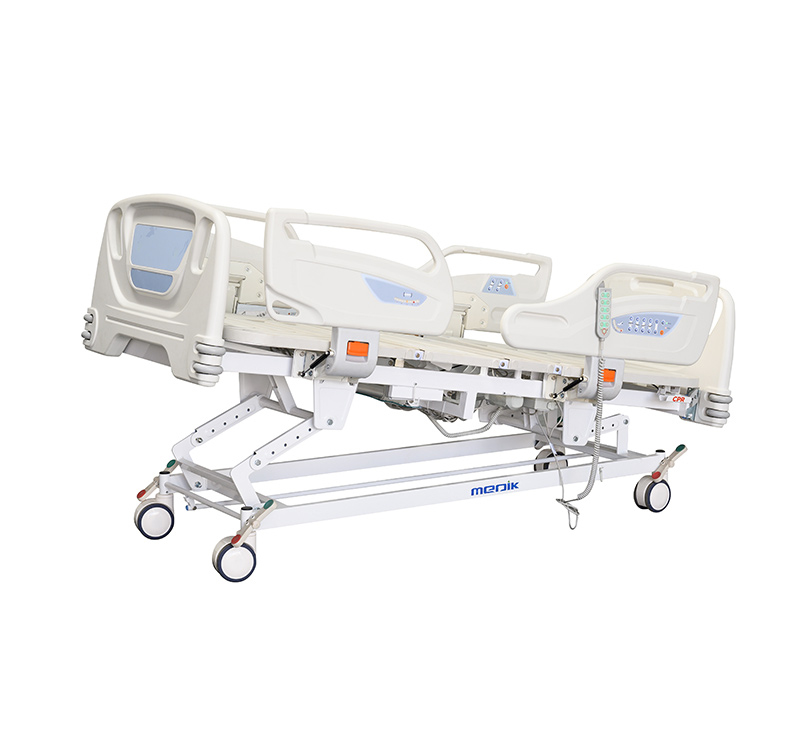

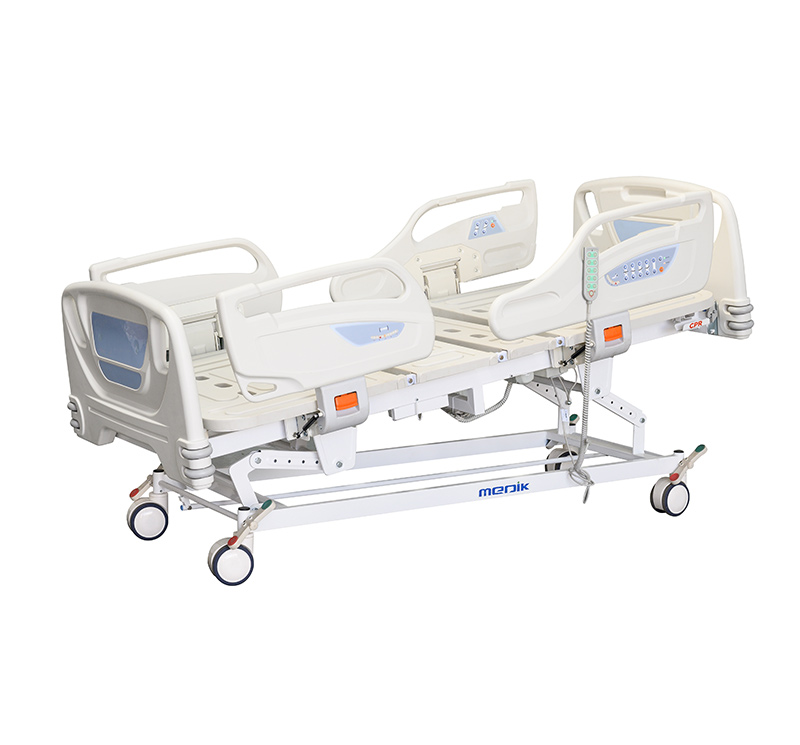

YA-D5-3 Hospital ICU Bed


Model: YA-D5-3

Overall Size:2150*980 *420-750mm

Loading capacity: 250kg

Functions: Backrest,Footrest adjustable, High-low,Trendelenburg,Reverse-Trend

Customization:  Available

Motor:  Jiechang motor ( Linak/Timotion/Dewert motor option)

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details
  • Downloads

YA-D5-3 is a total updated design full electric hospital bed, It equips with a Timotion brand motor control system and is widely used in ICU rooms due to its stable quality. It will provide an economical solution for some ICU rooms due to the embedded side railing control/patient control and the remote nurse hand control.

Main features

- Four split side rails, drop-down under-bed platform

- Incorporated railing control with an easily identifiable icon

- Nurse control incorporated in foot panel

- Detachable head/footboard with easy lock

- Central brake system with a wheel diameter of 125mm ( 5)

- Manual CPR on both sides

- Auto-counter to prevent the patient from sliding onto the foot end

- Removable ABS platform

- Electric CPR

- With angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)

Technical parameter

Overall size2150*980 *420mm (84.5″ x 38.5″ x 16.5″)
Lying size1960*900 mm (77″ 33.5″ )
Height adjustment420-750mm (16.5″ – 29.5″ )
Back section up/down0-75°
Foot section up/down0-35°
Revere- Trendelenburg0-13°
Loading capacity250kg(550 Ibs)
