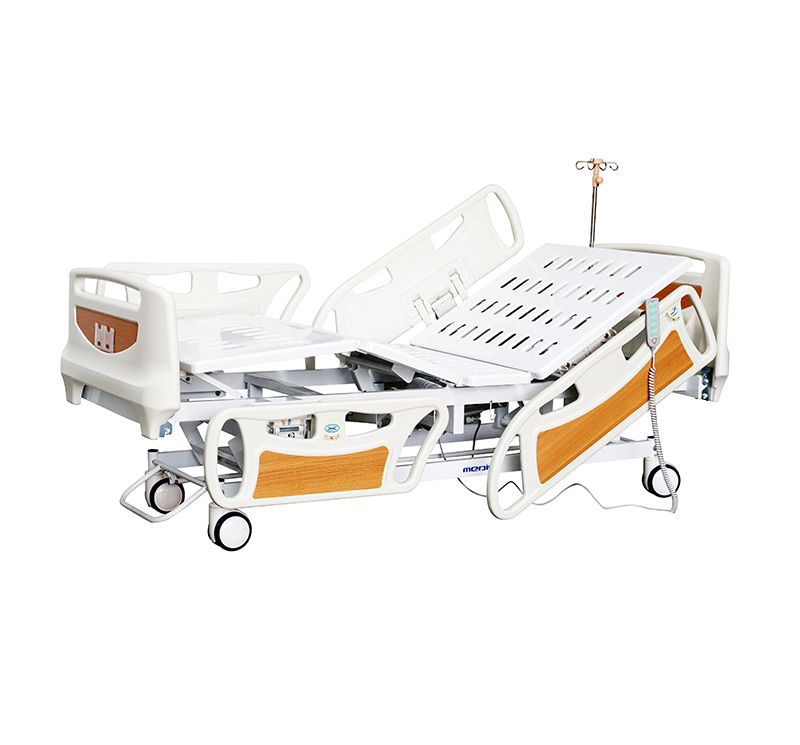

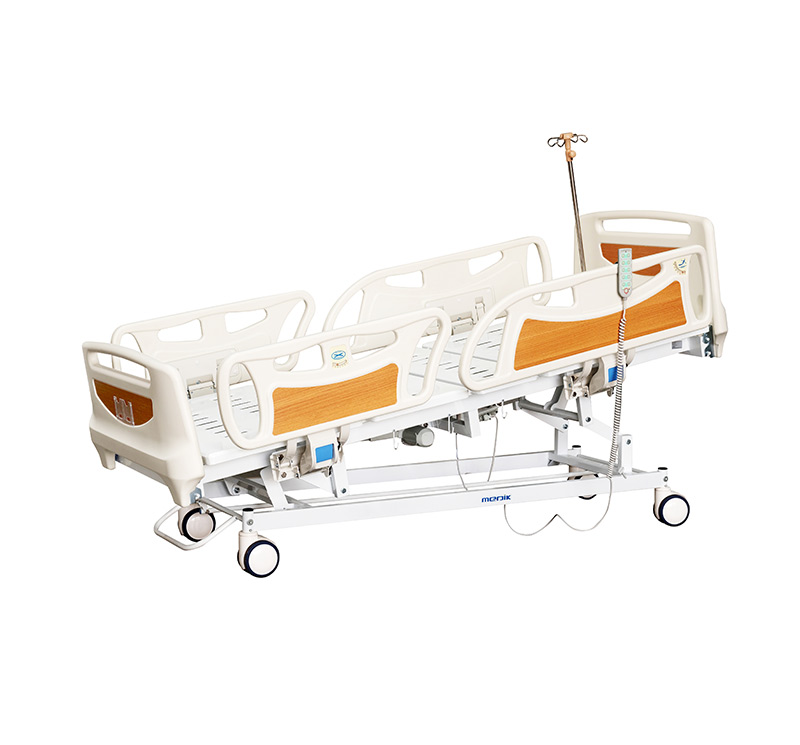

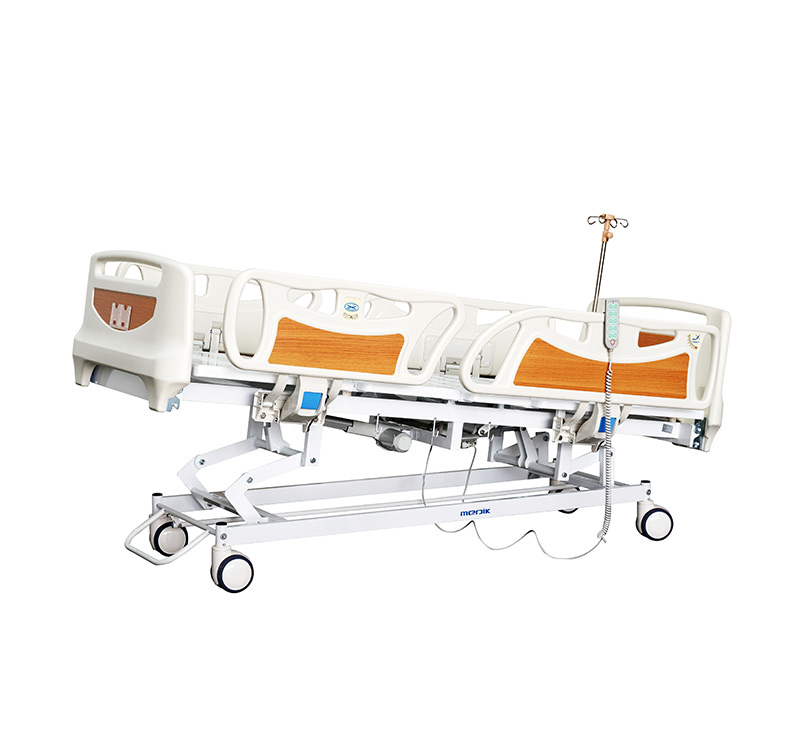

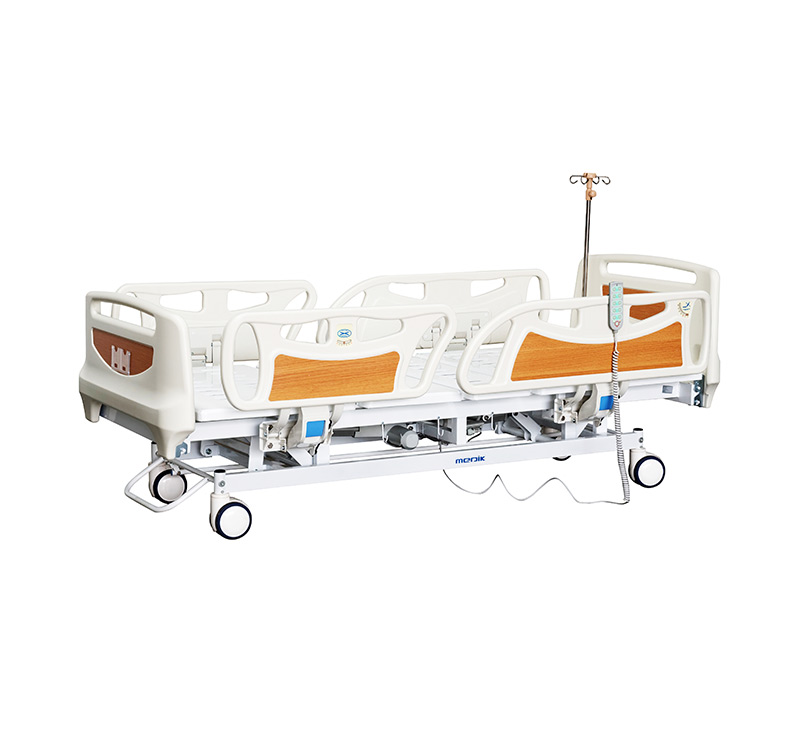

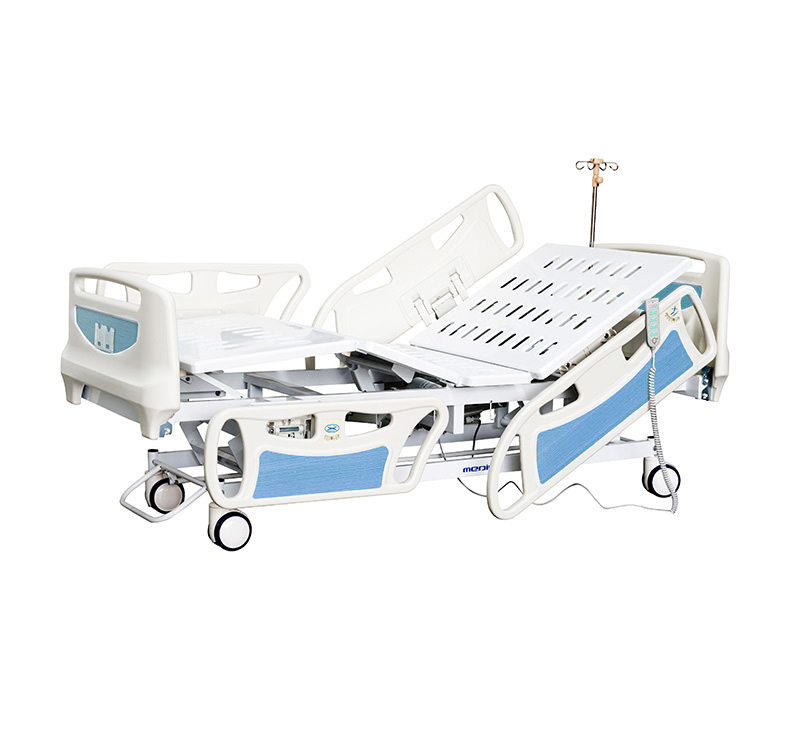

YA-D5-7 Power Hospital Electric Bed With CPR


Model: YA-D5-7

Overall Size:2245*1060*500-780mm

Loading capacity: 250kg

Functions: Backrest, Footrest,High-low,Trendelenburg, Reverse trendelenburg

Certificate: ISO/CE

Color option:  Green, Blue, Yellow

Motor:  Jiechang motor ( Linak, Timotion, Dewert motor option)

Warranty:3-Year on Frame and Welds, and 1-Year on Parts

After-sale Service: Online technical support

Customization:  Available

  • Product Details


- Bed Frame Electrophoresis and powder coating

- Bed platform Wholly molded cold steel sleeping platform

- Motor Quiet and robust electric actuators provide reliable operation

- Hand remote controller of all electrically operated functions and movements

- Handrails Four split side rail, drop down

- Head and Footboard ABS material, detachable

- Castors: Four silent duty wheels, two with brakes, φ125mm

- Angle indicator With angle indicator embedded in the railing for back and trendenleburg adjustment(optional)

- Auto-counter function Auto-counter to provide the patient from sliding onto the foot end

- Mechanical CPR function Control by the CPR handles on both sides of bed to realize the CPR procedure in one step

Technical parameter

Size(L*W*H)2245*1060*500mm (88.3″ x 41.7″ x 19.6″)
Lying surface:2045× 900mm (80.5″ 35.4″ )
High-Low:500-780mm (19.6″ – 30.7″ )
Back secticn adjustable0° to 75°
Knee secticn adjustable0° to 40°
Trendelenburg0° to 12°
Reverse trendelenburg0° to 12°
Loading Capacity250kg(551 Ibs)

 Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 4 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces

Hospital Bed Details

YA-D5-7 Power Hospital Electric Bed With CPRYA-D5-7 Power Hospital Electric Bed With CPRYA-D5-7 Power Hospital Electric Bed With CPR

Remote nurse control and electric CPR included.

Degree indicator, easy for position indication.

Detachable ABS head/foot board for emergency application.

YA-D5-7 Power Hospital Electric Bed With CPRYA-D5-7 Power Hospital Electric Bed With CPR

4 pcs Dia125mm castors with central locking.

Manual CPR in each side of back board.
