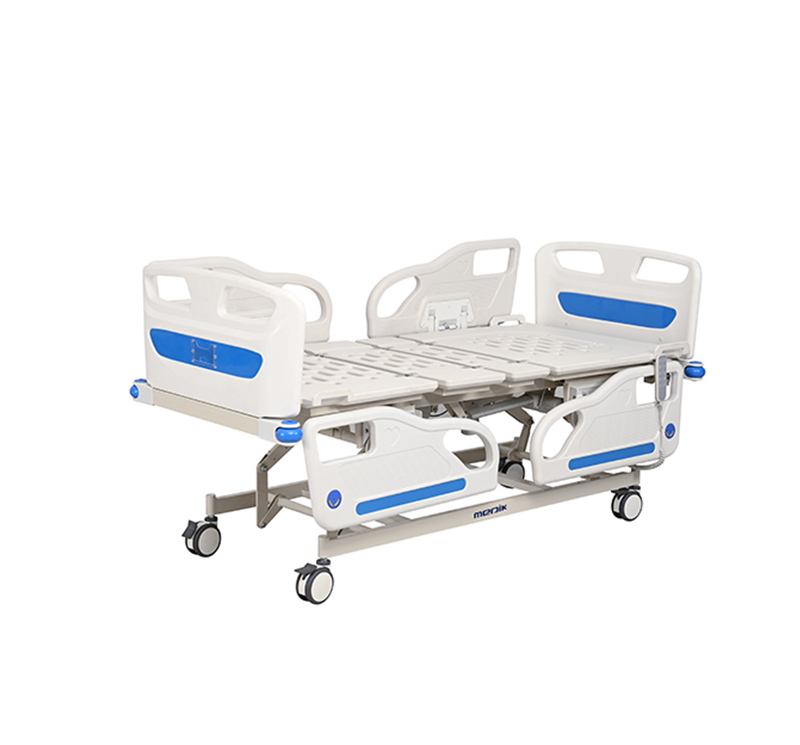

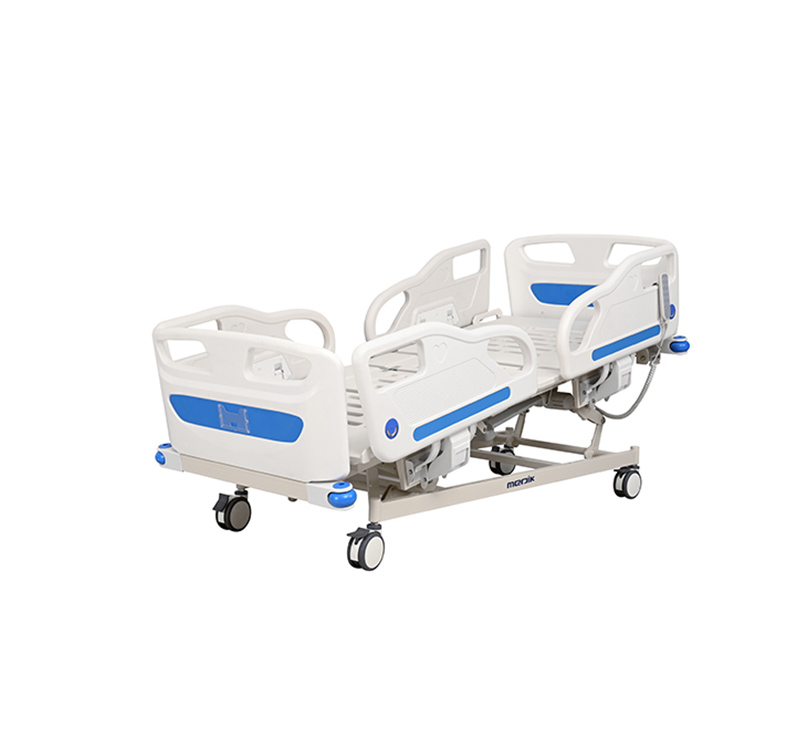

YA-D5-5 Hospital Electric Adjustable Bed With ABS Sleeping Platform

share

Model:YA-D5-5

Overall Size:2200*1060*510-800mm

Safe Working Load: 225kg

Functions:Back secticn adjustable,Foot secticn adjustable,High-low,Trendelenburg,

Anti-trendeleburg


Product Details

Features:

Four split side rail,drop down under the bed platform

Hand remote control

Detachable head/foot board with easy lock

Removable ABS platform

Central brake system with wheel diameter of 125mm

Auto-counter to provide the patient from sliding onto foot end

With angle indicator embeded in the railing for back and trendenleburg adjustment(optional)

Manual CPR on both sides(optional)


Technical features:

Model

YA-D5-5

Size

2200*1060*510-800mm

Lying surface

1960*900mm

Overall Height

510-800mm

Back secticn adjustable

0° to 75°

Knee secticn adjustable

0° to 40°

Trendelenburg

012°

Anti-trendeleburg

012°

Safe working load

225kg

 Specification

  • Bed Frame Electrophoresis and powder coating

  • Bed platform ABS material bed platform

  • Motor Quiet and robust electric actuators provide reliable operation

  • Hand remote controller of all electrically operated functions and movements

  • Handrails Four split side rail,drop down under the bed platform

  • Head and Foot board Detachable wooden head/foot board with easy lock

  • Castors Central brake system with wheel diameter of 125mm

  • Auto-counter function Auto-counter to provide the patient from sliding onto foot end

  • Manual CPR Manual CPR on both sides(optional)

  • Angle indicator With angle indicator embeded in the railing for back and trendenleburg adjustment(optional)

 Standard Accessories

  • Head/Foot Board 2 pieces

  • Side Rails 4 pieces

  • Bed Frame 1 set

  • Bed Boards 4 pieces

  • Casters 4 pieces

  • IV Pole Holder 4 pieces

  • IV Pole 1 piece

  • Drainage Bag Holders 2 pieces
