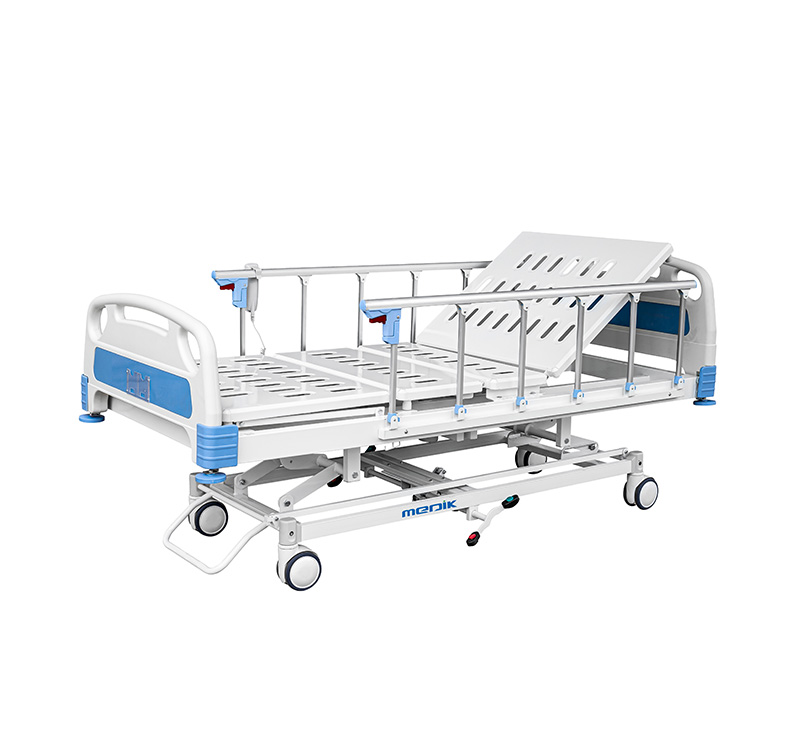

YA-D5-1 Fully Electric Hospital Bed Height Adjustable

share

Model: YA-D5-1

Overall Size: 2200*980 *450-750mm

Safe Working Load: 220kg

Funtions: Back secticn adjustable, Knee secticn adjustable,High-Low,Trendelenburg,Revere- Trendelenburg

Certificate: ISO/CE



  • Product Details

MEDIK YA-D5-1 electric hospital bed is a fully electric operation type ICU bed to take care of the pa­tient in the ICU area. It will provide convenient support for both caregiver and patient. The road to re­covery is often a critical and sensitive experience. Both patient and medical staff will have to work hand-in-hand to achieve their goal of nursing the patient back to health.

Main features

- Bed Frame Electrophoresis and powder coating

- Bed platform removable ABS platform

- Motor Quiet and robust electric actuators provide reliable operation

- Build-in controller can control all electrically operated functions and movements

- 4 ABS side rails with Tuck-away model, collapsible below the bed surface

- Head and Footboard ABS material, detachable

- Central brake system with a wheel diameter of 125mm

- Hand remote control

- Patient control inner constructed in side rails

- Nurse control located in the footboard, with side rail control and a functions lockout feature

- Auto-counter to provide the patient from sliding onto foot end

- Electric CPR function control by one single button on the side rails

- Manual CPR

Technical parameter

ModelYA-D5-1
Overall size2200*980 *450-750mm
Lying size1950*850 mm
Back section up/down0-70°
Foot section up/down0-40°
Height adjustment450-750mm
Trendelenburg0-12°
Revere- Trendelenburg0-12°
Loading capacity220kg
