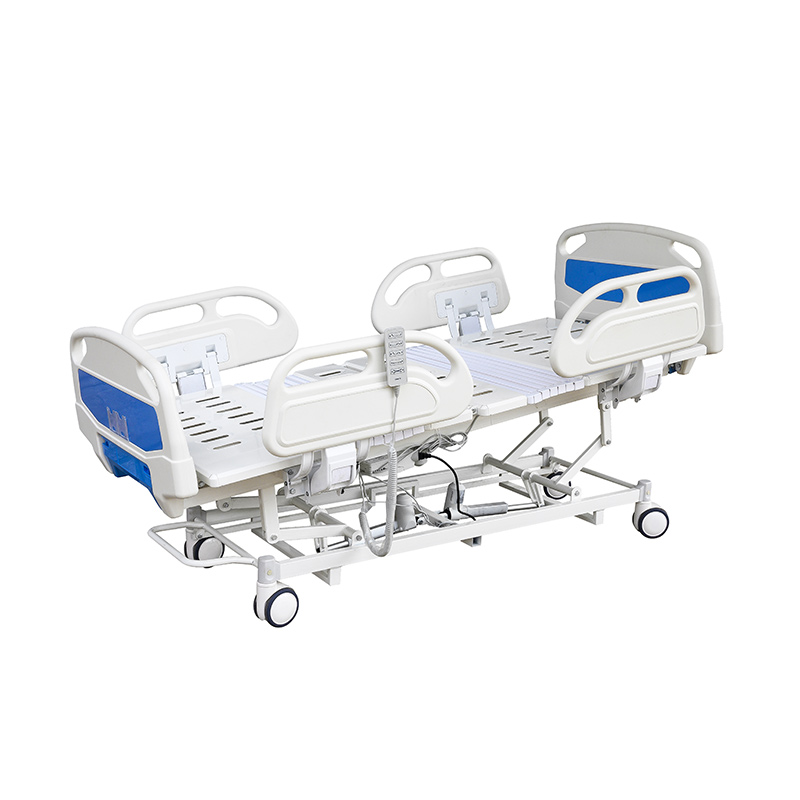

YA-D5-10 Electric Adjustable Hospital Bed For Patients


Model: YA-D5-10

Overall Size: 2160*1050 *450-700mm

Safe Working Load: 205kg

Funtions: Back , Knee , High-Low,Trendelenburg,Revere- Trendelenburg

Certificate: ISO/CE

Color options:  Green, Blue, Yellow

Motor:  Jiechang motor ( Linak/Timotion/Dewert motor option)

Warranty:3-Year on Frame and Welds, and 1-Year on Parts

After-sale Service: Online technical support

Customization:  Available

  • Product Details

Main features

- Four split side rail, drop down under the bed platform

- Hand remote control

- Detachable head/footboard with easy lock

- With articulated ABS soft joint between different platform sections

- Central brake system with a wheel diameter of 125mm

- Auto-counter to provide the patient from sliding onto foot end

- Manual CPR on both sides(optional)

Technical parameter

Overall size2160*1050 *450mm (85″ x 41.3″ x 17.7″)
Lying size1910*900 mm (75.1″ 35.4″ )
Back section up/down0-75°
Foot section up/down0-40°
Height adjustment450-700mm (17.7″ – 27.5″ )
Revere- Trendelenburg0-12°
Safe loading capacity205kg(451 Ibs)


- IV stand

- Urine bag hook

- Hand remote controller

- ABS soft joint


- Nurse controller

- 5th direction wheel

- Manual CPR

- Mattress
