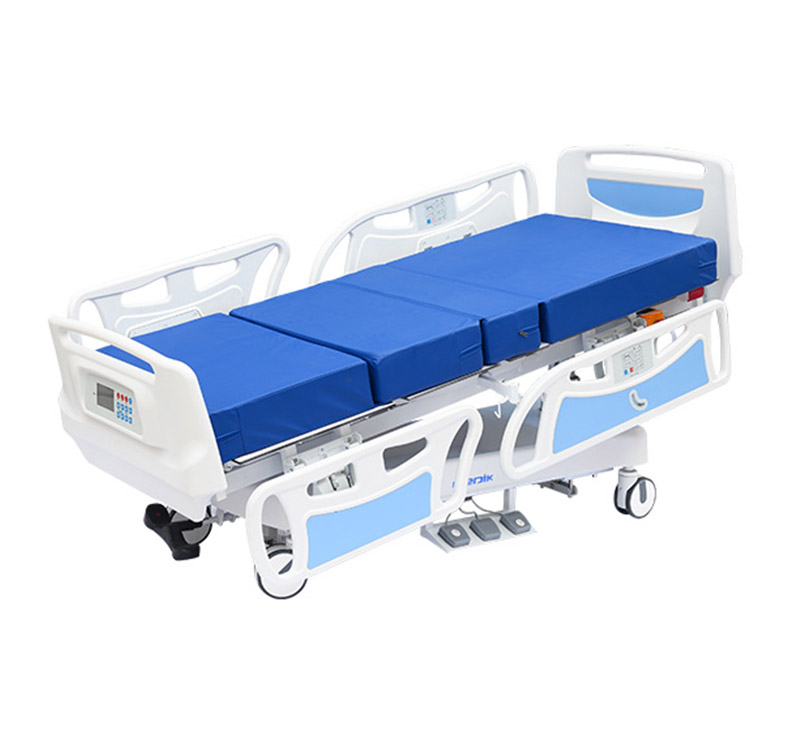

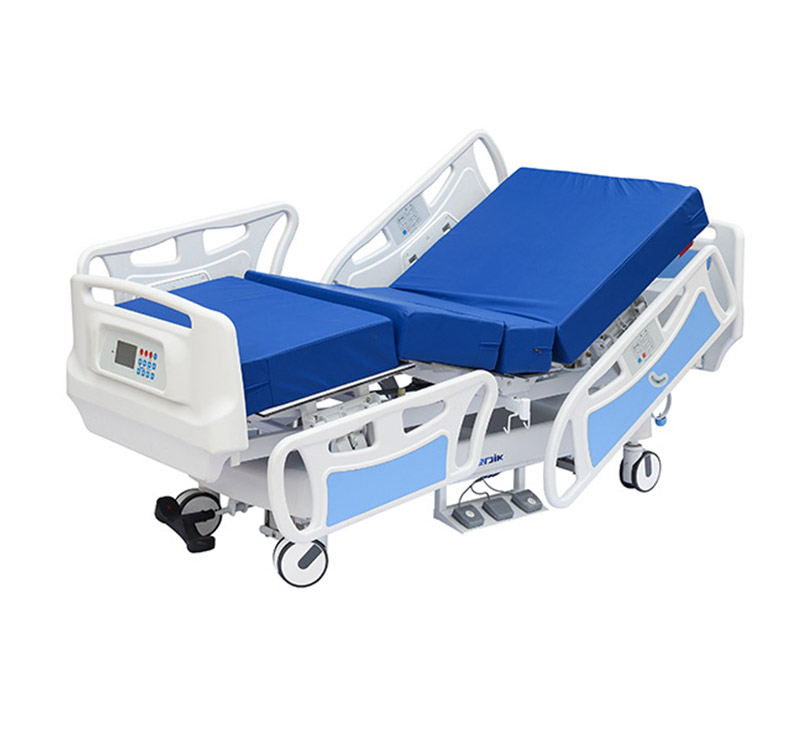

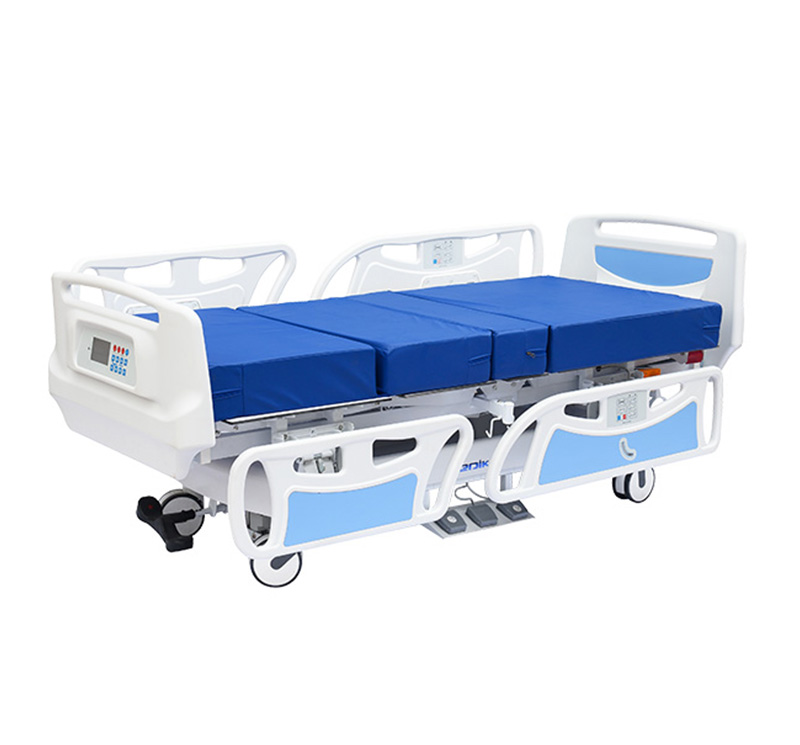

YA-D7-1 Electric ICU Patient Bed


Model: YA-D7-1

Overall Size: 2280*1050*530-780mm

Loading capacity: 230kg

Functions: Backrest, Footest, High-low, Trendelenburg/Reverse trend., Electric CPR, Weighing scale

Color options:  Green, Blue, Wood

Motor:  Jiechang motor ( Linak/Timotion/Dewert motor option)

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details
  • Downloads

The YA-D7-1 ICU bed provides an ideal solution for problems that occur in critical and intensive care units. The progressive features of the bed ensure the safety of the patient and safer working conditions for the staff.

Main features

- Four split side rail, drop down

- Incorporated railing control with easily identifiable icon

- Nurse control incorporated in foot panel with LED display for moving state

- Detachable head/footboard with easy lock

- Central brake system with a wheel diameter of 125mm

- Auto-regress to remove the pressure of the abdomen when adjusting the backrest

- Auto-counter to provide the patient from sliding onto foot end

- Full-length X-ray translucent platform

- Weighing scale system

- One button emergency stop switch can quickly stop all going movements.

- Electric CPR

- Manual CPR on both sides

- Bumper caster on four corners

- Angle Indicator for Backrest &Trendelenburg & Rev.Trend.

Technical parameters

Overall size(L*W*H)2280*1050*530mm (90″ x 41″ x 21″)
Height adjustable530-780mm (21″ – 31″ )
Back section adjustable0-75°±5°
Foot section adjustable0-40°±5°
CastorDia125mm ( 5″ )
Loading capacity230kg(505 Ibs)
