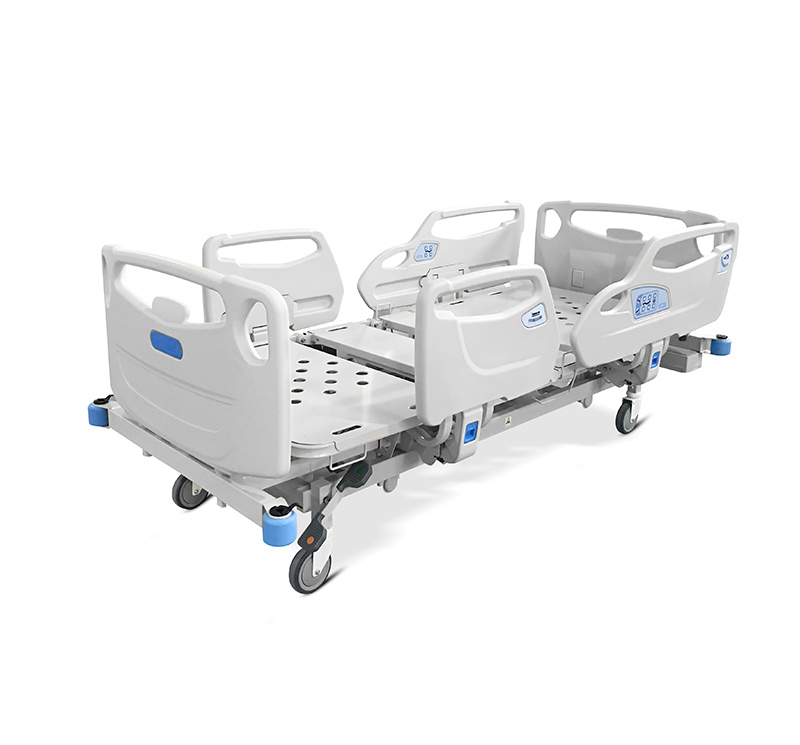

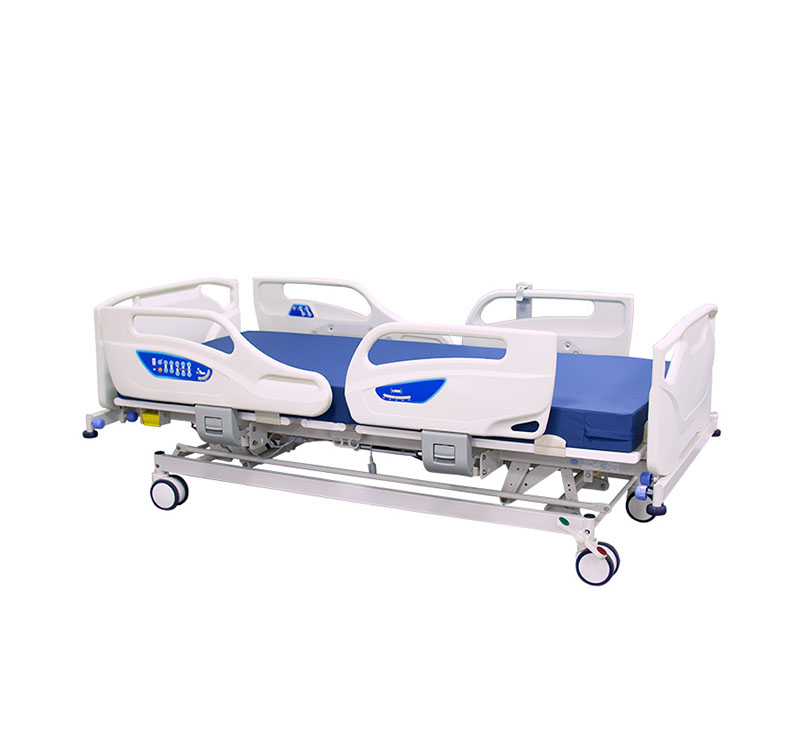

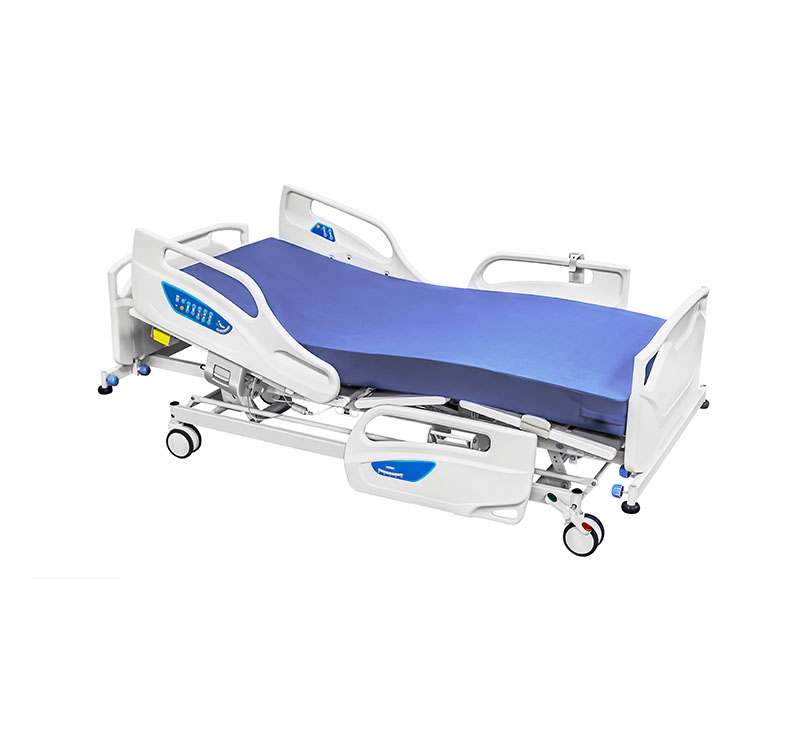

YA-D5-11 Electric hospital bed 5 functions with CPR Function

Share:

Model: YA-D5-11

Overall Size:2200*990*350-700mm

Loading Capacity: 225kg

Functions:Backrest,Footrest,High-low,Trendelenburg ,Reverse trendelenburg

Certificate:  ISO/CE

Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

After-sale Service: Online technical support

  • Product Details

Watch Video


Recovering patients requires a nurturing environment where they can recuperate with peace of mind. Placing particular emphasis on safety, the YA-D5-11 electric bed is designed to mitigate accidents. In addition to safety, the beds are also designed for usability, easy cleaning, and easy maintenance.

Features

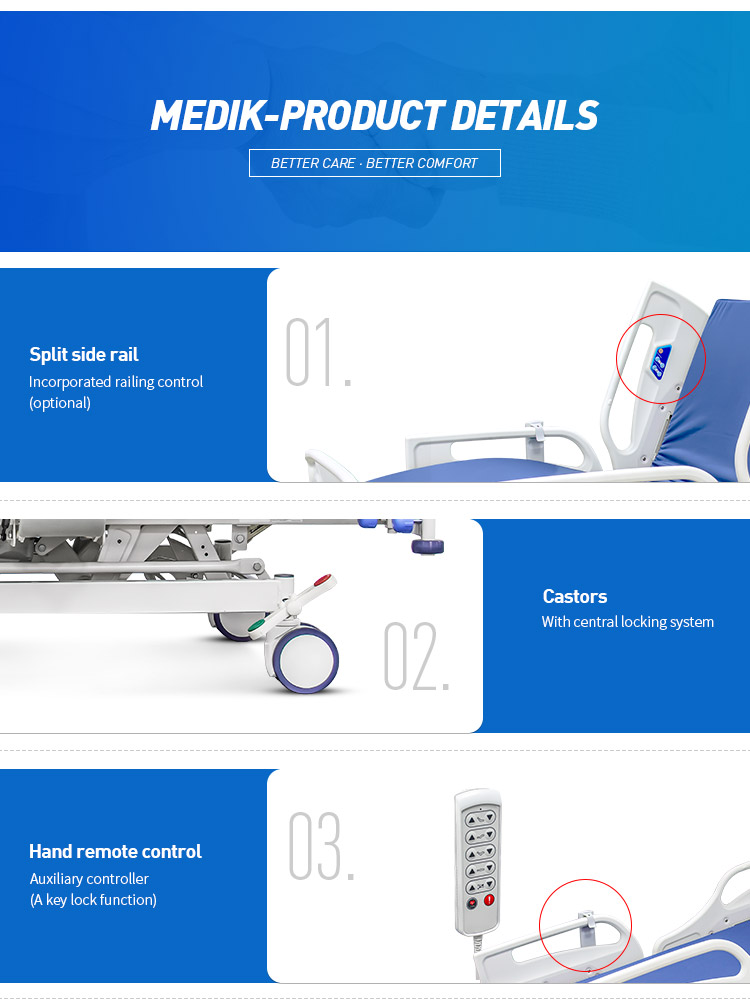

- Four split side rails, drop down

- Hand remote control

- Detachable head/footboard with easy lock

- Central brake system with a wheel diameter of 125mm

- Bumper caster on four corners

- Auto-counter to prevent the patient from sliding onto the foot end

- ABS articulated soft joint for the platform

- With an angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)

- Manual CPR on both sides

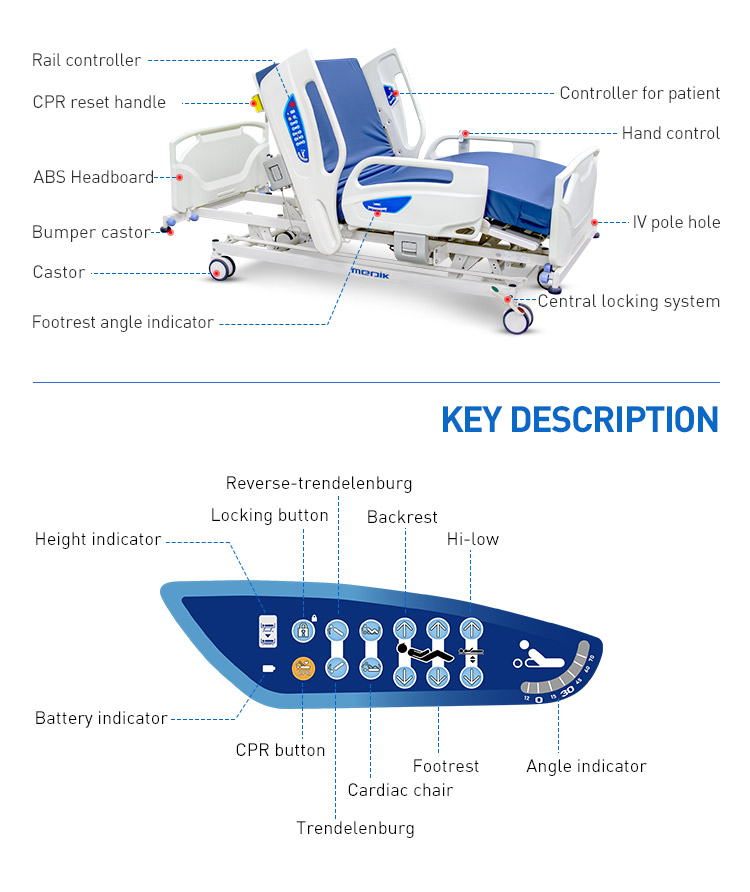

- Incorporated railing control(optional)

- Weighing scale with LED display (optional)

Technical parameter

ModelYA-D5-11
Size(L*W*H)2200*990*350mm(86.6″ x 39″ x 13.7″)
Recommended mattress size1950*900mm(76.7″ – 35.4″ )

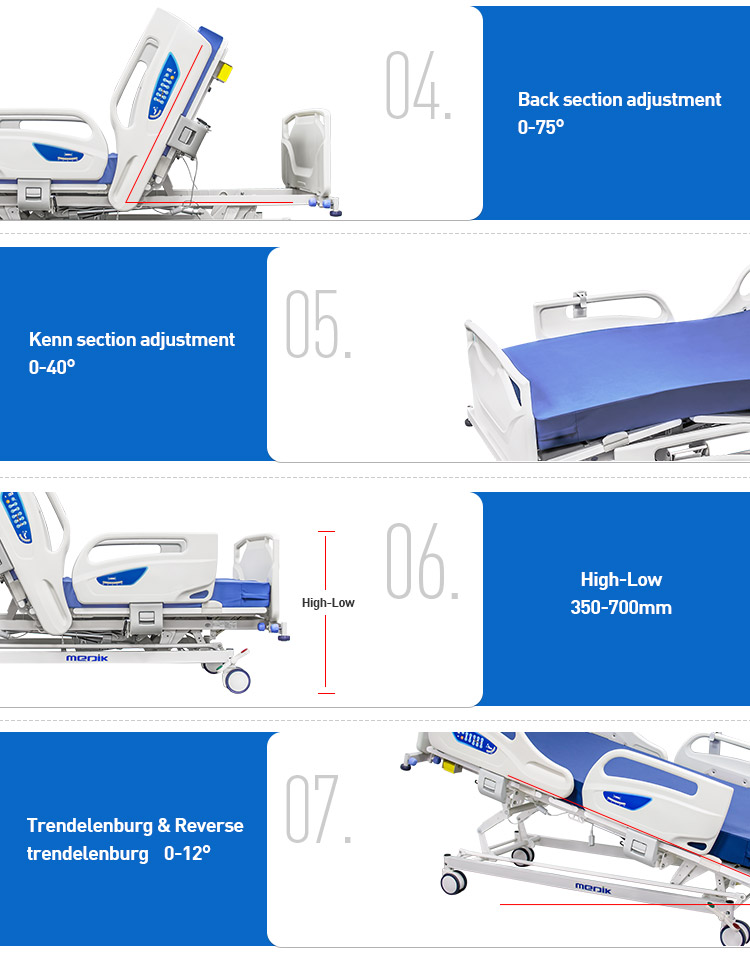

High-Low:350-700mm(13.7″ – 27.5″ )

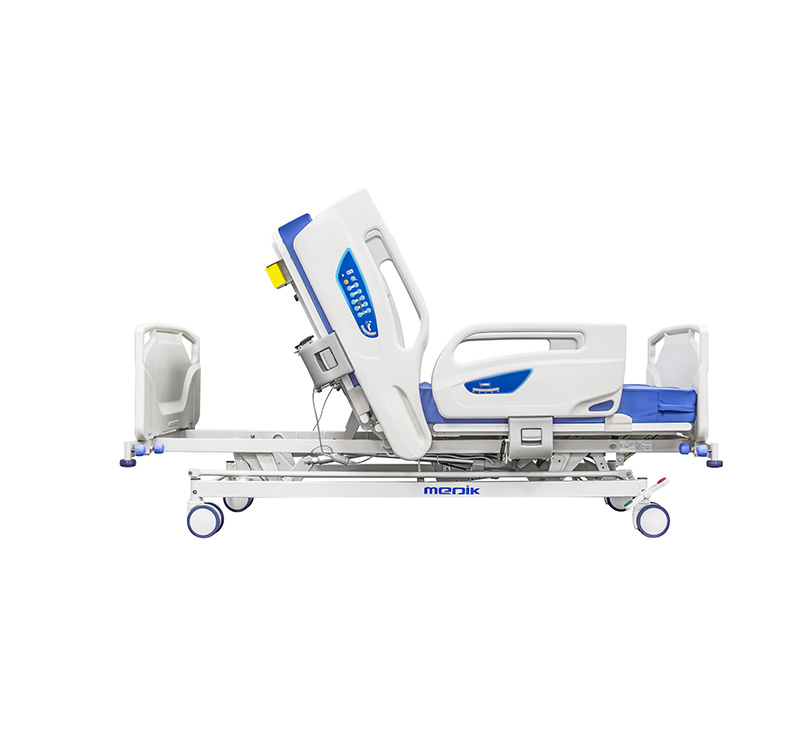

Back section adjustable0° to 75°
Knee section adjustable0° to 40°
Trendelenburg0° to 12°
Reverse trendelenburg0° to 12°
Safe working load225kg(496 Ibs)

 Standard Accessories

Head/Foot Board2 pieces
Side Rails4 pieces
Bed Frame1 set
Bed Boards5 pieces
Casters4 pieces
IV Pole Holder4 pieces
IV Pole1 piece
Drainage Bag Holders2 pieces
