YA-D7-2 Hospital Patient Recovery Bed


Model: YA-D7-2

Overall Size: 2280*1050*550-950mm

Loading capacity: 250kg

Functions: Backrest, Footest, High-low, Trendelenburg/Reverse trend., Electric CPR

Motor:  Jiechang motor ( Linak/Timotion/Dewert motor option)

Color options:  Green, Blue, Wood

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details

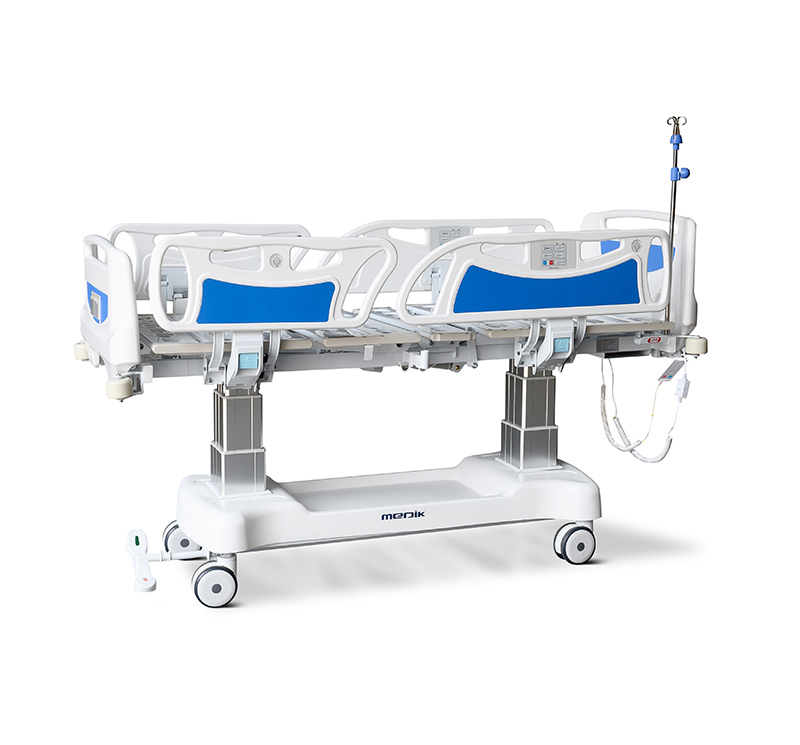

MEDIK YA-D7-2 ICU column Bed is with ergonomic design to take care of the patient in the ICU area. This column structure makes the C-arm exam accessible and minimizes the trap risk during operation, also it is easy for hygiene. All the standard features together with extraordinary column features make this bed an ideal option for medical institutions.

Main features

- Two-column motor lifting structure

- Four split side rail, drop down

- Incorporated railing control with easily identifiable icon

- Nurse control incorporated in foot panel with LED display for moving state

- Detachable head/footboard with easy lock

- Auto-regress to remove the pressure of the abdomen when adjusting the backrest

- Auto-counter to provide the patient from sliding onto foot end

- Electric CPR

- Manual CPR on both sides

- Bumper caster on four corners

- Central brake system with a wheel diameter of 125mm

- Angle Indicator for Backrest &Trendelenburg & Rev.Trend.

- Option Choice: motor brand, battery back up, nurse control in the footboard, weighing scale

Technical parameters

Overall size2280*1050*550mm (90″ x 41″ x 21.5″)
Height adjustable550-770mm (21.5″ – 30″ )
Back section adjustable0-75°±5°
Foot section adjustable0-40°±5°
CastorDia125mm ( 5″ )
Loading capacity250kg(550 Ibs)
