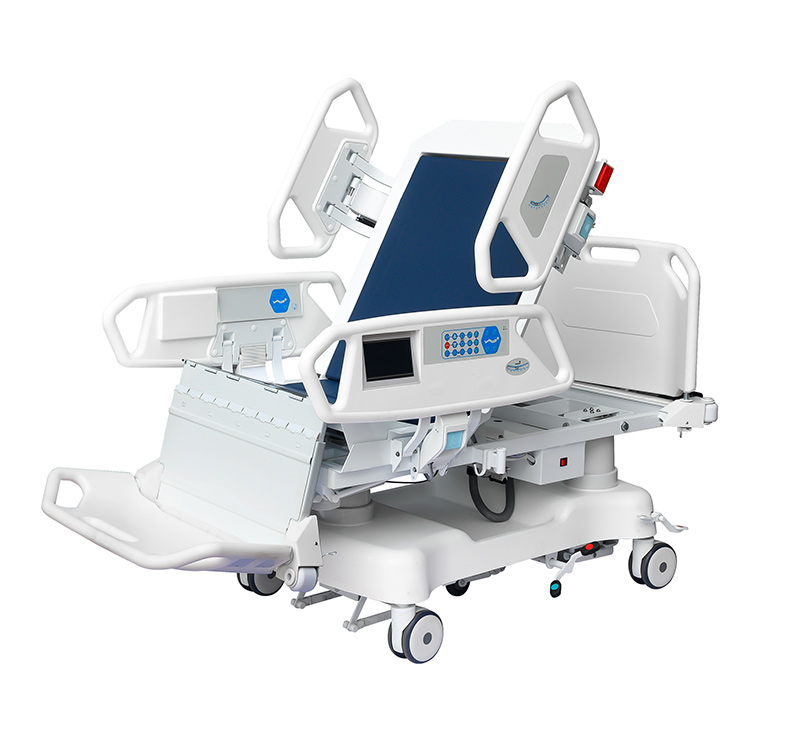

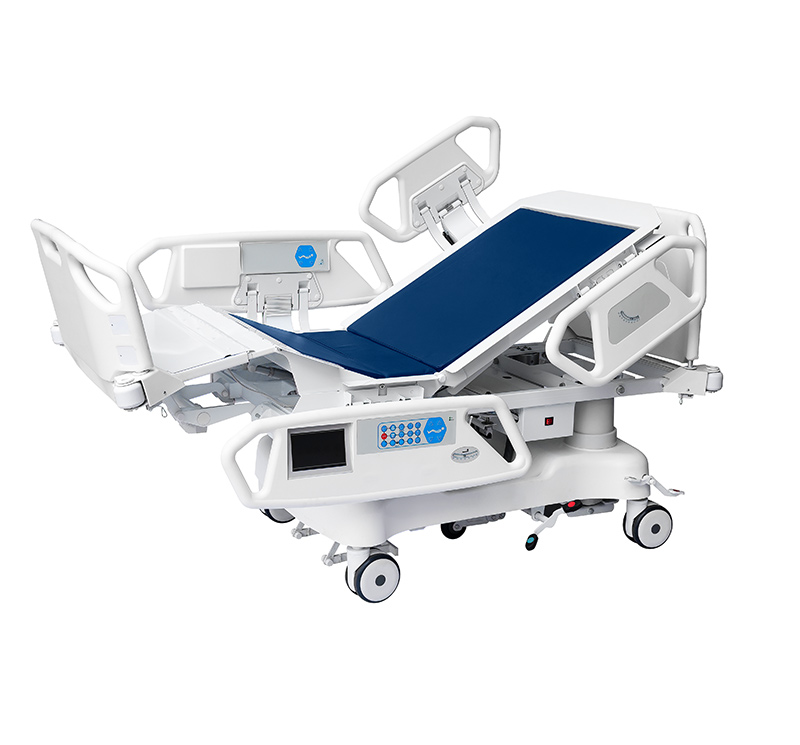

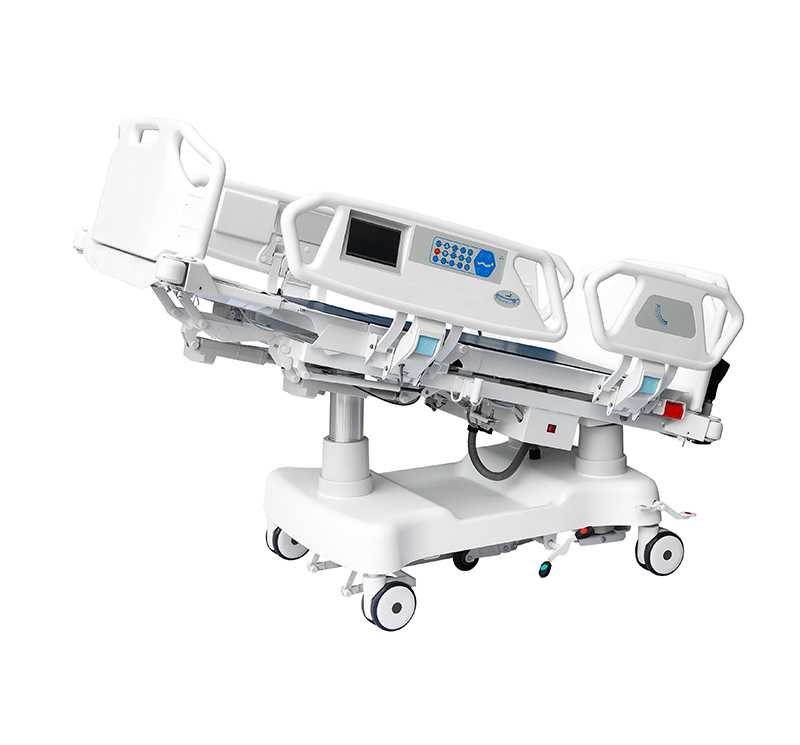

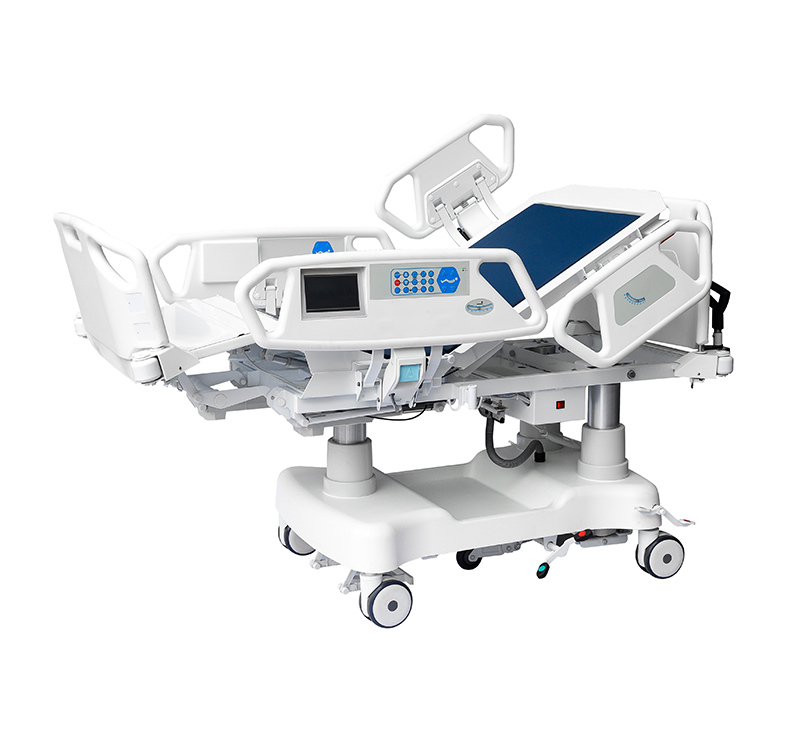

YA-D8-2 Intensive Care Hospital Bed

Share:

Model: YA-D8-2

Overall Size: 2020-2230*1050*570-820mm

Loading capacity:

Functions: Backrest, Footrest, High-low, Trendelenburg/Reverse,Tilt left/ right, Chair position,Electric CPR

Motor:  Jiechang motor ( Linak/Timotion/Dewert motor option)

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  5-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

YA-D8-2 three-column bed responds to the evolving needs of caregivers and patients. More than just a bed, the YA-D8-2 bed is a treatment device that can better serve hospitals and ICU rooms.

YA-D8-2 three-column bed with left&right tilting is designed to reduce the incidence of bedsores and improve the pulmonary.

Main Feature

- Multiple functions can be achieved with this 3 column bed

- The left and right tilt function can be realized by the column

- One button total chair position is a special feature of this bed

- X-ray translucent back section

- Fifth wheel for direction

- Electric CPR and manual CPR on both sides

- Angle Indicator for Backrest & Trendelenburg & Rev. Trend.

- Weighing scale system (option)

Technical parameters

ModelYA-D8-2
Overall size2020*1050*570mm (87.5″ x 41″ x 22.5″)
Bed Extending function2020-2230mm (87.5″ – 88″ )
HI-LOW570-820mm (22.5″ – 32″ )
Backrest adjustable0-75°±5°
Footrest adjustable0-35°±5°
Trendelenburg0-15°±1°
Reverse-Trendelenburg0-15°±1°
Tilt left0-12°±1°
Tilt right0-12°±1°
CastorsDia 125mm ( 5″ )
Loading capacity230kg(505 Ibs)
