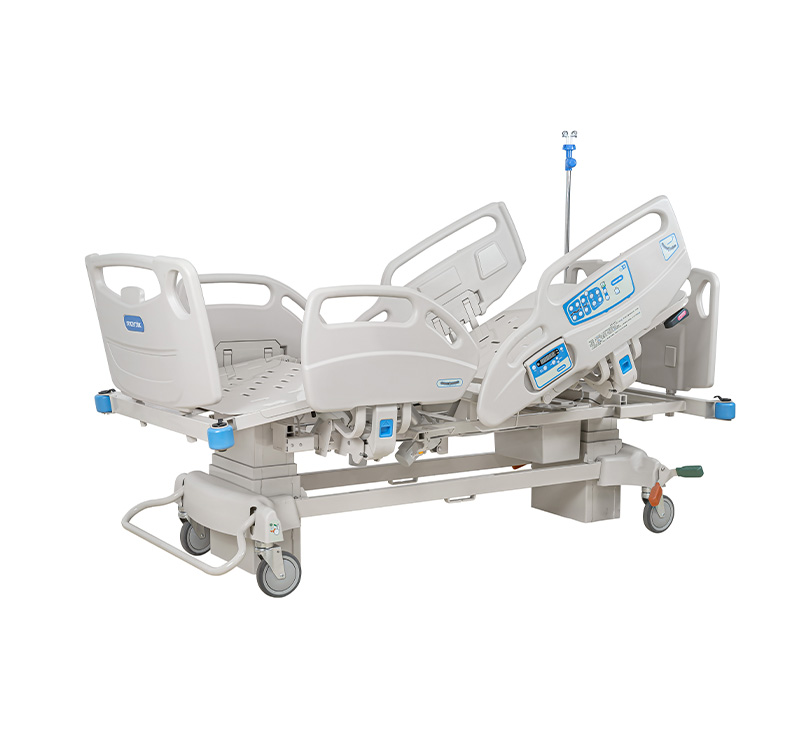

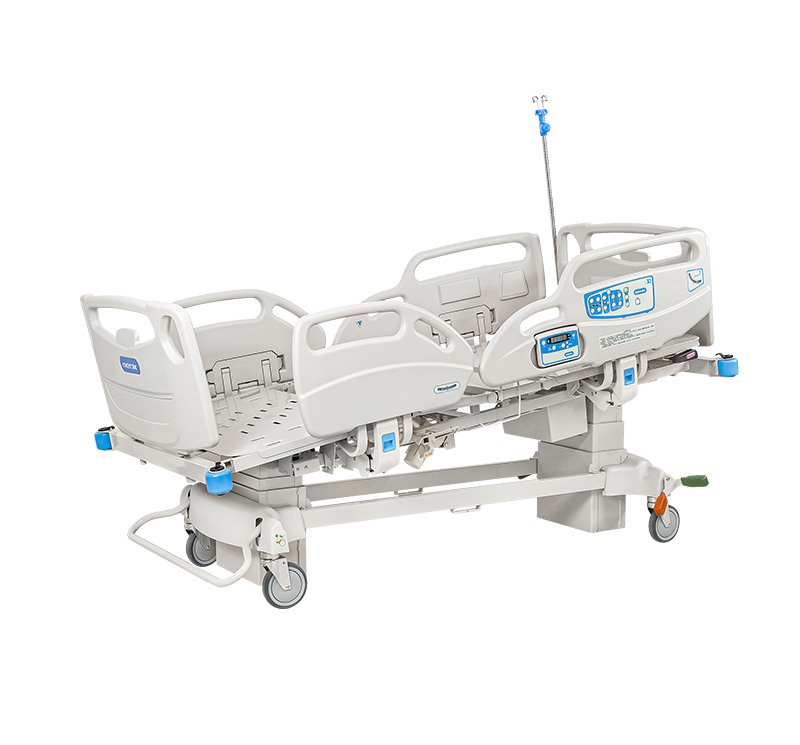

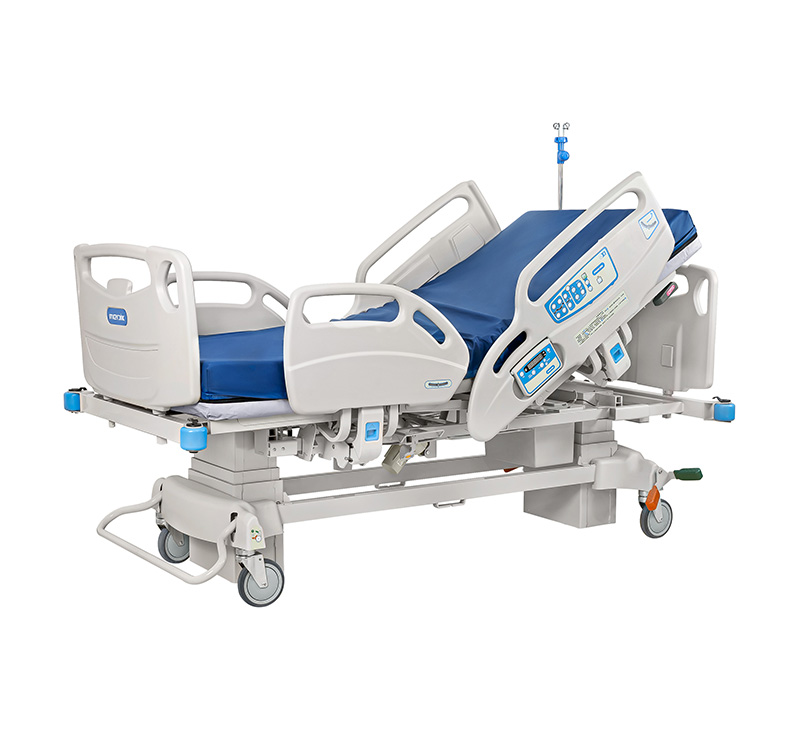

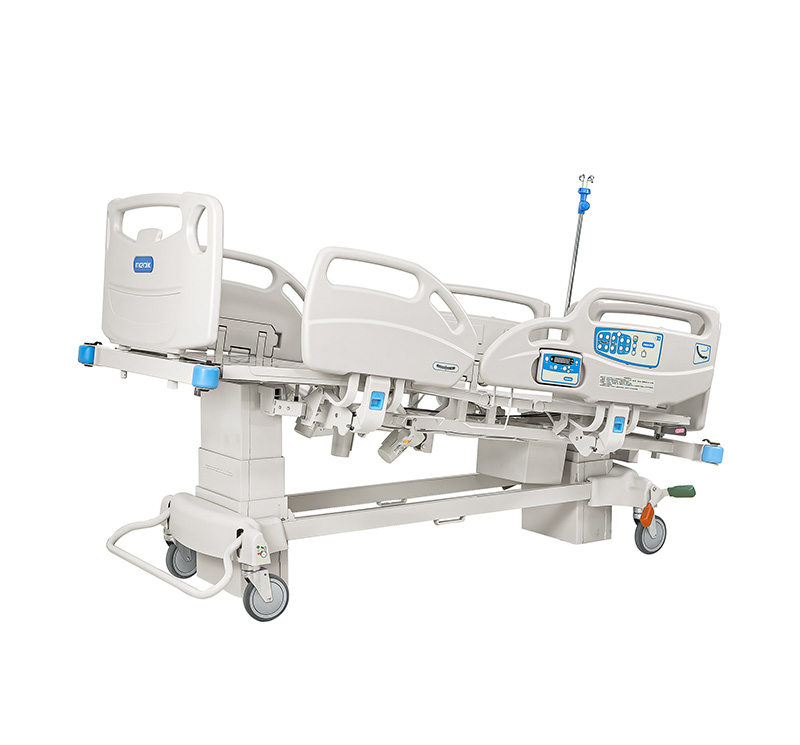

YA-D6-1 Electric Long Term Care Hospital Beds

Share:

Model: YA-D6-1

Overall Size: 2175*990*420-800mm

Safe Working Load: 250kg

Functions: Backrest, Footrest , High-low, Trendelenburg, Reverse Trendelenburg

Color options:  Green, Blue, Wood

Customization:  Available

Motor:  Jiechang motor ( Liank/Timotion/Dewert motor option)

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

The YA-D6-1 Long term care hospital bed has a positive effect on the treatment and recovery of patients and ensures that the work of healthcare staff working in acute units is more effective and easier with the help of the unique functional features.

Specification

- Bed Frame Electrophoresis and powder coating

- Bed platform Wholly molded cold steel sleeping platform,10pieces divided platform to get a smooth curve

- Motor Quiet and robust electric actuators provide reliable operation

- Build-in controller can control all electrically operated functions and movements

- Linak motor from Denmark

- Back-up Battery Equipped in the control box of the motor system

- Handrails 4 ABS side rails with Tuck-away model, collapsible below the bed surface

- Head and Footboard ABS material, detachable

- Castors: Four 125mm castors with a central locking system

- Controller Hand remote control

- Patient control inner constructed in side rails

- Nurse control located in footboard , with side rail control and functions lockout feature

- Indicator With indicator on four side rails

- Bumper castors on 4 corners of the bed

- Weight Load  Fully tested sturdy construction capable of taking a maximum user weight of up to 250kg

- Electric CPR function Control by one single button on the side rails

- Mechanical CPR function Control by the CPR handles on both sides of the bed to realize the CPR procedure in one step

- Position of Vascular Control by one single button

Technical features

ModelYA-D6-1
Size2175*990*420mm (85.5″ x 39″ x 16.5″)
High-Low420-800mm (16.5″ – 31.5″ )
Back section adjustable0° to 75°
Knee section adjustable0° to 45°
Trendelenburg0° to 16°
Reverse trendelenburg0° to 16°
CastorsDia125mm ( 5″ )
Weight Load250kg(550 Ibs)

Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 4 pieces

- Bed Frame 1 set

- Bed Boards 10 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces
