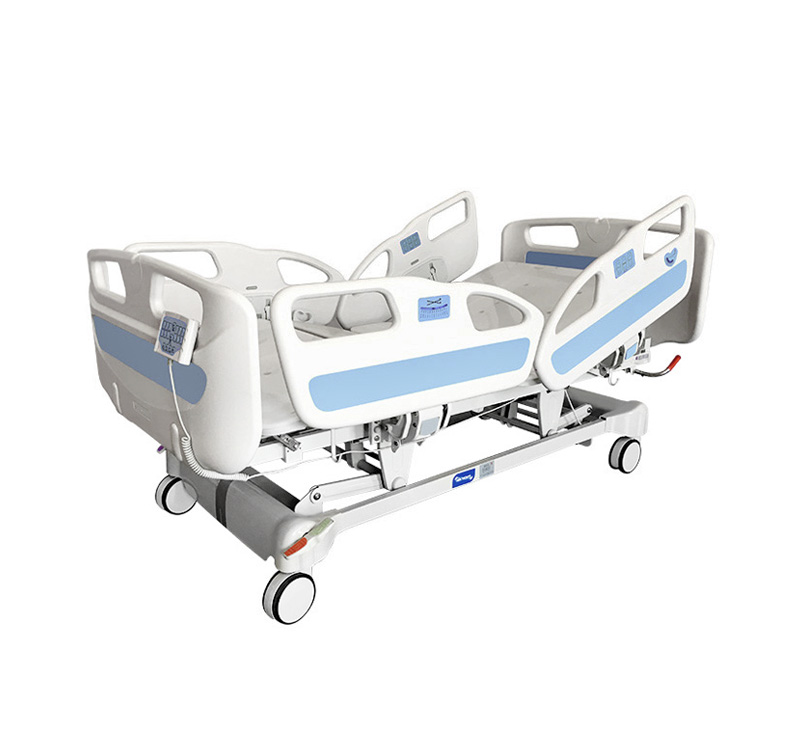

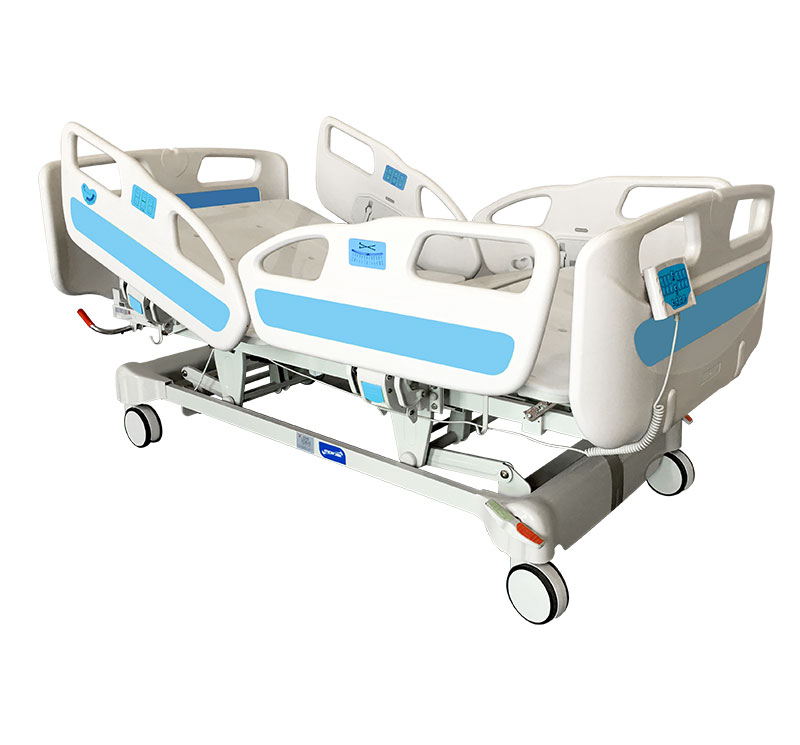

YA-B5-1 Electric Intensive Care Hospital Bariatric Bed


Model: YA-B5-1

Overall Size: 2200*1060*(480-750)mm

Safe Working Load: 300kg

Functions: Backrest, Footrest, High-low, Trendelenburg, Reverse-Trend,Lateral Trendelenburg

Color options:  Green, Blue, Wood

Motor:  Jiechang motor ( Liank/Timotion/Dewert motor option)

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details


The bed offers improved ease of use through innovation and proven performance. Designed to help caregivers accomplish their goals, the YA-B5-1 column type intensive care hospital bed provides patients egress/ingress, more patient positioning, and more convenience through storage and other features. The electric intensive care hospital bed with tilt function is a special benefit for the patients.

Main features

- Multi-functions electric ICU bed, Bariatrics bed

- Four split side rail, drop down under the bed platform

- Detachable head/footboard with easy lock

- Incorporated railing control with easily identifiable icon

- Nurse control hanging on the foot panel

- X-ray translucent back section

- Electric CPR

- Manual CPR on both sides

- One Button Chair position

- Auto-regress to remove the pressure of the abdomen when adjusting the backrest

- Auto-counter to provide the patient from sliding onto foot end

- One button trendelenburg

- Angle indicator (Back section and whole bed)

- Imported ABS engineering plastic, metal

- Central Locking Castor 5”

- Bumper caster on four corners


Overall size2200*1060* 480mm (86.5″ x 42″ x 20″)
Mattress support platform size1990*900mm (78″ 35.5″ )
Height adjustable480-750mm (20″ – 29.5″ )
The angle of back section≥70°
The angle of knee section≥35°
Reverse Trendelenburg0~12°
Safe working load300kg(660 Ibs)
