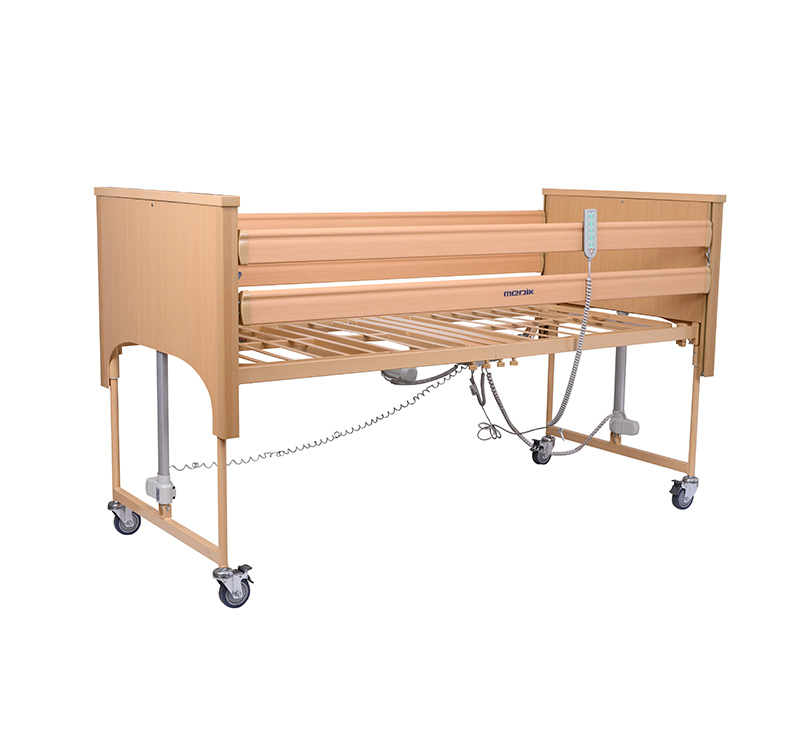

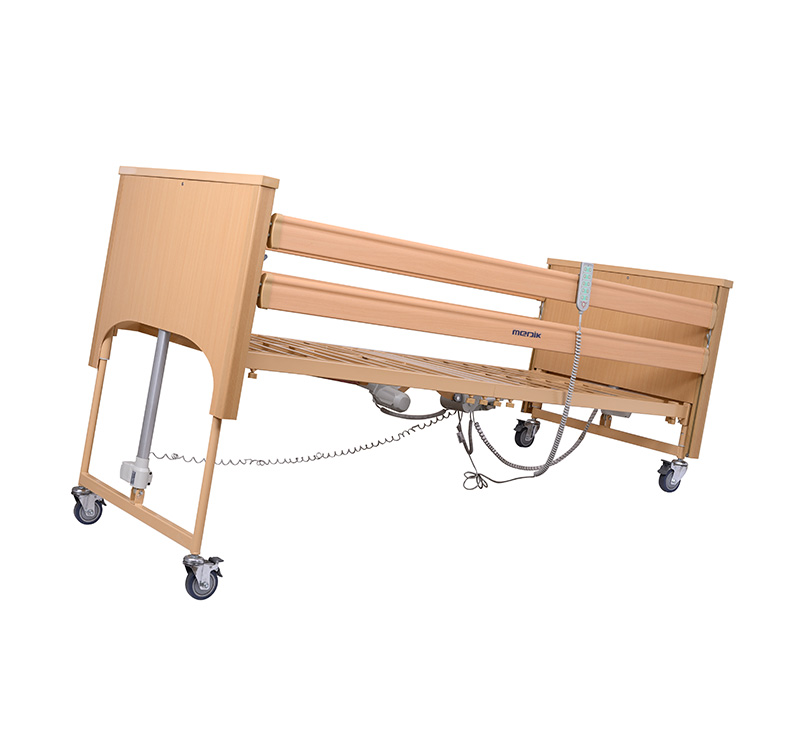

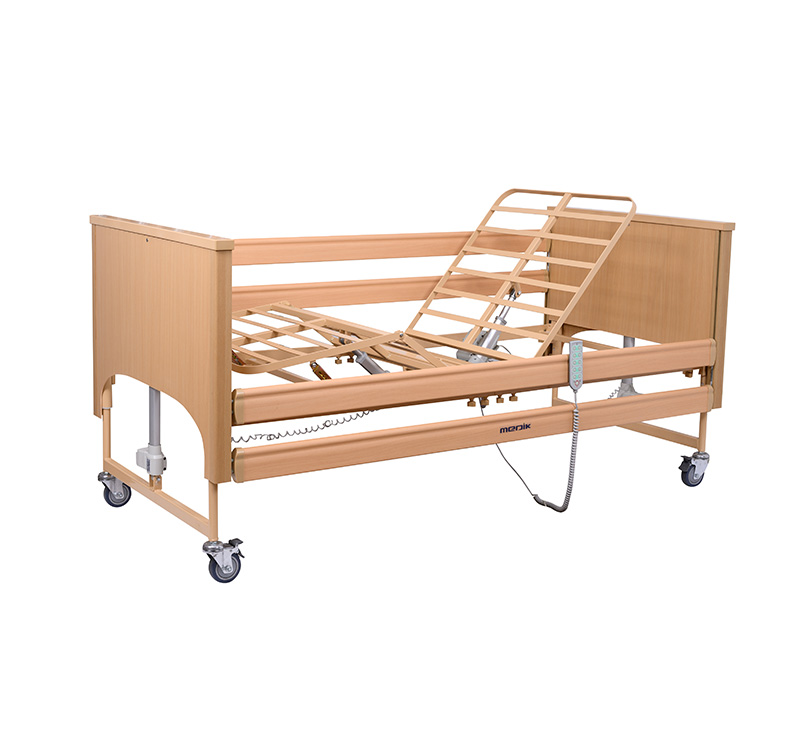

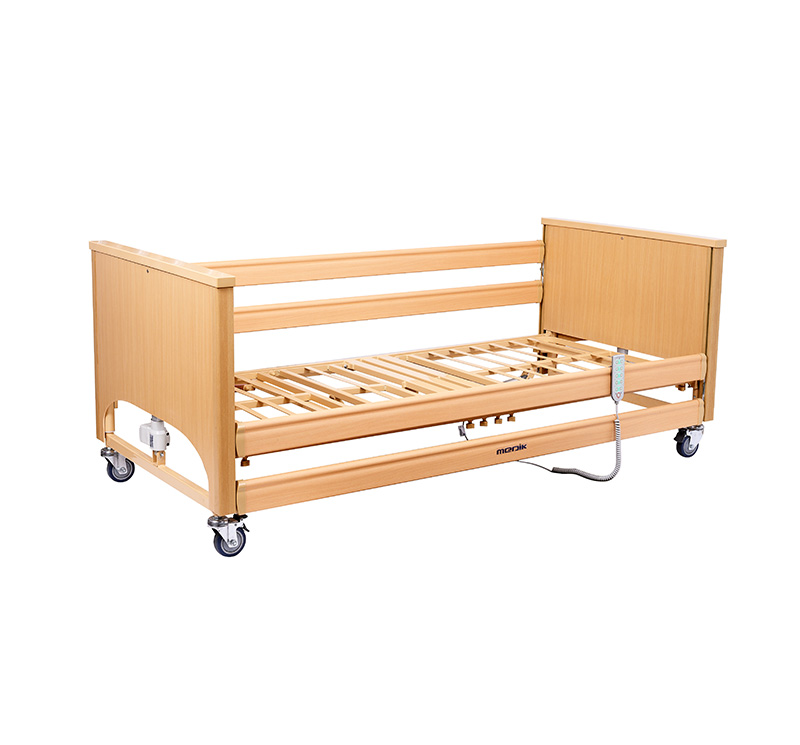

YA-DH5-2U Electric High Low Home Nursing Bed

Share:

Model: YA-DH5-2U

Overall Size: 2160*1030 *300-700mm

Safe Working Load: 180kg

Functions: Backrest adjustable, Footrest adjustable, High-Low,Trendelenburg, Revere-Trendelenburg

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details
  • Downloads

YA-DH5-2U is an elegant nursing bed designed for home care and a nursing center. Design with the Integration of patient safety, comfort, and environment harmony, the nursing bed is very well recognized in the market. The warm brown wood grain design increases the patient's sense of belonging and makes the atmosphere warmer. Further, thanks to the unique packing design, the bed is also welcome in the private market due to minimized and optimized packages.

Main features

-Electrically operated profiling bed for community and nursing home use

-The Safe work load (SWL) 180Kg

-Wooden head and footboard with aluminum columns around

-Adjustable self-locking side rails provide additional safety which can be released at both head and foot ends

-Remote handset control

-High-quality castors (castor diameter: 100mm)

-Quick and easy assembly in limited space

Technical parameter

ModelYA-DH5-2U
Overall size2160*1030 *400mm (85″ x 40.5″ x 16″)
Lying size1900*900 mm (75″ x 35.5″)
Height adjustable400-800mm (16″ – 31.5″ )
Backrest adjustable0-75°
Footrest adjustable0-40°
Trendelenburg0-12°
Reverse-Trendelenburg0-12°
Loading capacity180kg (395 Ibs)
CasterDia 100mm  ( 4″ )
