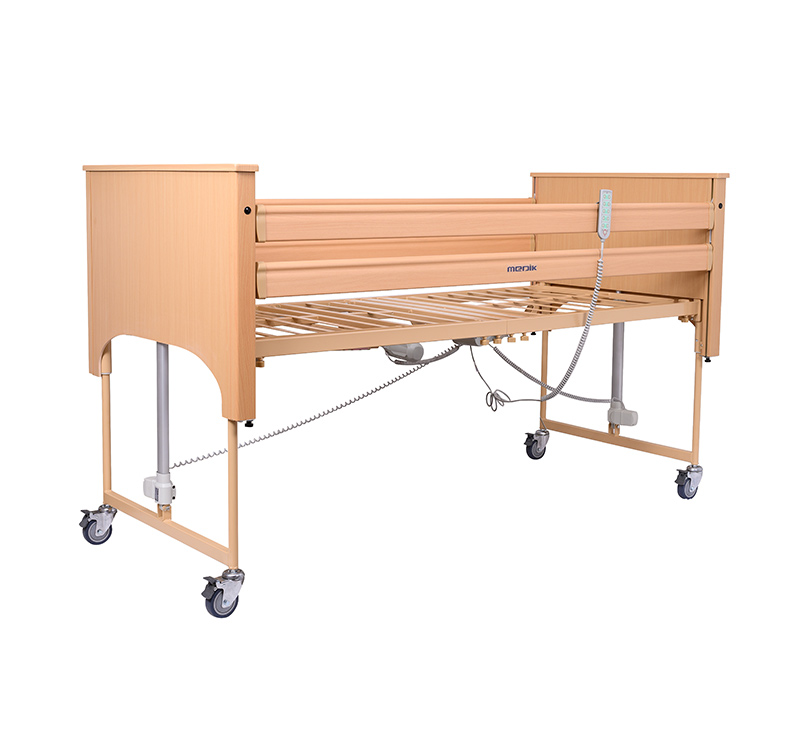

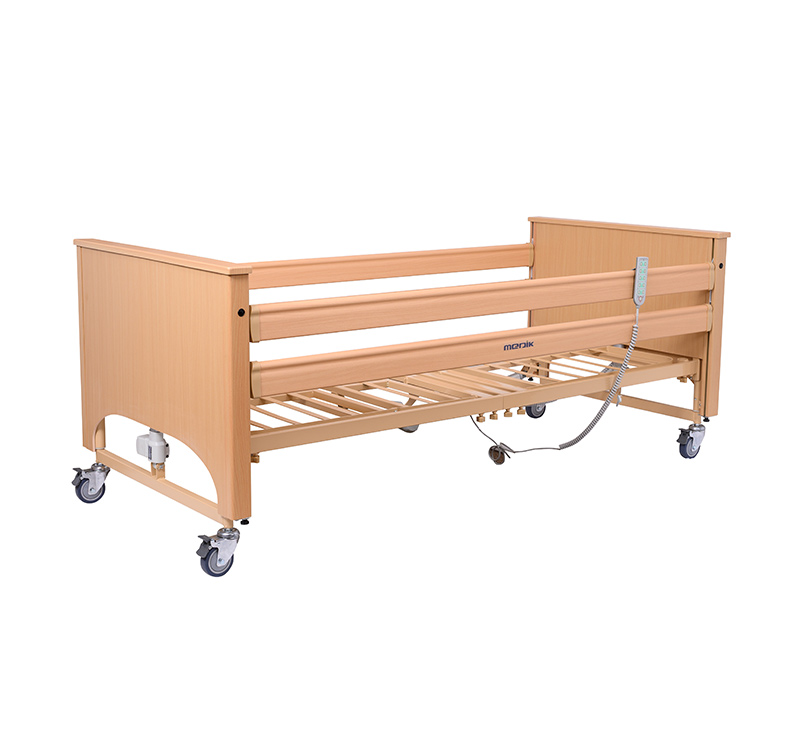

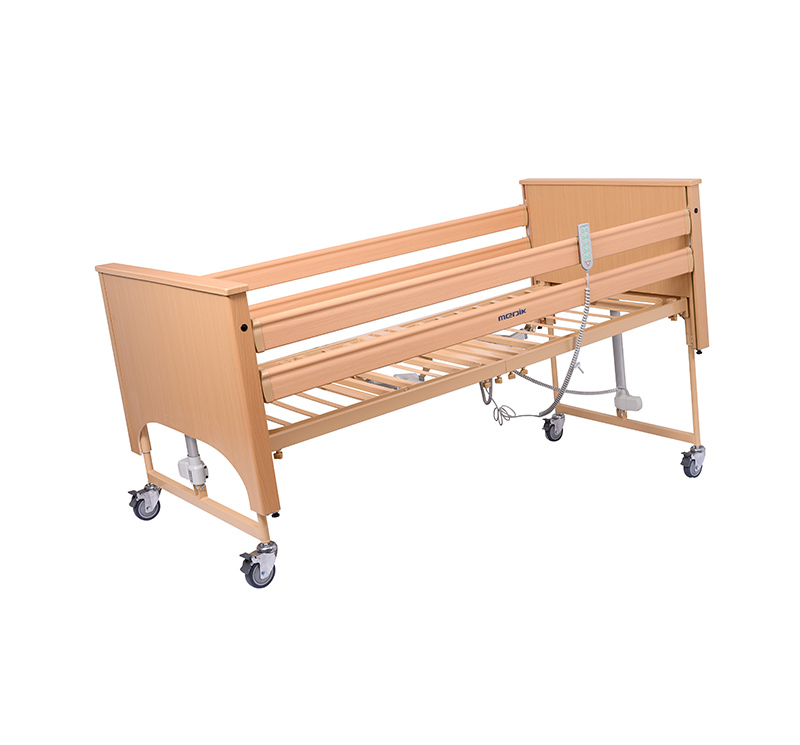

YA-DH5-1 Electric Hospital Home Care Bed For Elderly

Share:

Model: YA-DH5-1

Overall Size: 2155*1035 *400-800mm

Safe Working Load: 180kg

Functions: Backrest, Footrest adjustable, High-Low,Trendelenburg,Revere-Trend

Certificate: CE/ISO

Customization:  Available

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details
  • Downloads

The YA-DH5-1 home care bed is easy to transport and assemble. The four-sectioned profiling mattress support allows for a range of height combinations, providing an ideal position for the carer and comfort for the user.

Main features

- Electrically operated profiling bed for community and nursing home use

- Safe work load (SWL) 180Kg

- Variable height (400mm - 800mm)

- Wooden head and footboard with aluminum columns around

- Adjustable self-locking side rails providing additional safety which can be released at both head and foot ends

- Remote handset control

- High-quality design castors (castor diameter: 100mm)

- Quick and easy assembly, even within limited space

- Walnut/Oak/Maple color options available (please note minimum order quantities requirement)

Accessories

- Handset control

Options
- Lifting pole with triangle
- Urine bag stand
- Mattress

Technical parameter

ModelYA-DH5-1
Overall size2155*1035 *400mm (85″ x 41″ x 16″)
Lying size1900*900 mm (75″ x 35.5″)
Back section up/down0-75°
Foot section up/down0-40°
Height adjustment400-800mm (16″ – 31.5″ )
Trendelenburg0-12°
Reverse- Trendelenburg0-12°
Caster100mm ( 4″ )
Safe loading capacity180kg(395 Ibs)
