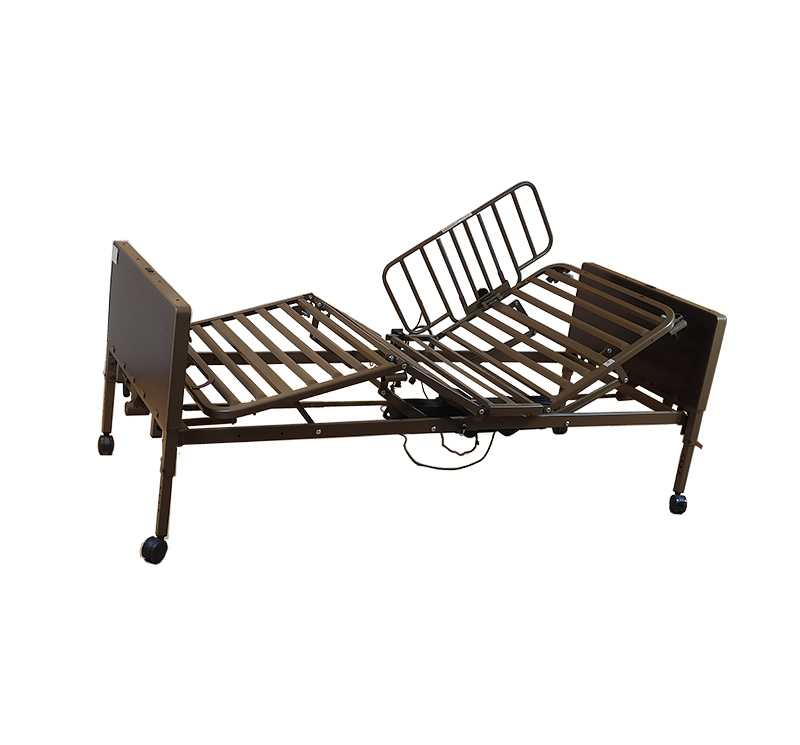

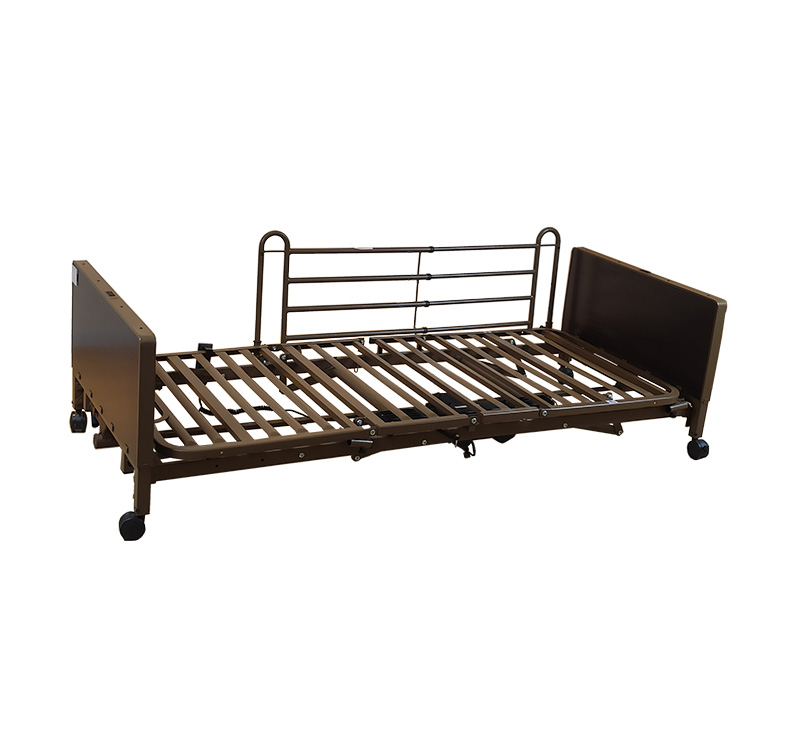

Users and caregivers can easily adjust body position and bed height with a hand pendant. Maintenance is easy with color-coded junction box connections. Interchangeable bed ends reduce inventory and are washable with standard water pressure.
Features
- Made of steel frame with a coating surface
- Back, Knee and Hi/Lo control by 3 motors
- Durable panels are impact and scratch-resistant and washable for easy cleaning
- Channel frame construction provides superior strength and reduced weight
- Locking Casters: Casters: 4 total, 2 locking.
- Bed Deck: Spring Deck
- Motor is UL Approved, Manufactured in an ISO9001 facility.
- Bed ships in two cartons
Technical Data
| Model | YA-EH3-1 | |
| Overall size(L x W) | 73.3" x 29.6" | 2185 x 905mm |
| Mattress size | 66" x 28.8" | 2015 x 880mm |
| Height Adjustable | 12.6" to 19" | 385-585mm |
| Back section | 0–70° | 0–70° |
| Knee section | 0–35° | 0–35° |
| Net Weight | 158 lbs | 71.7 kg |
| Loading capacity | 452 lbs | 205 kg |
