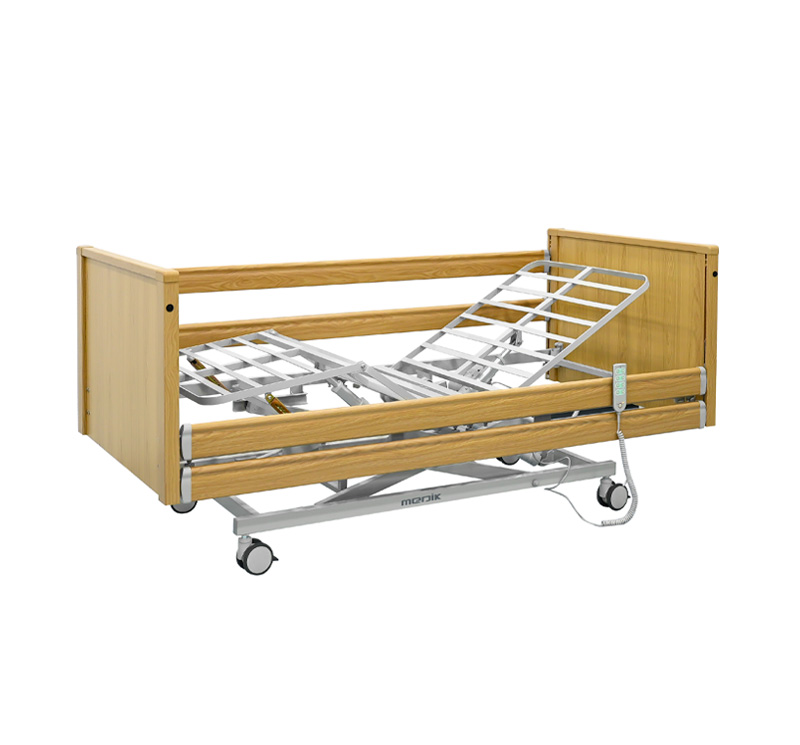

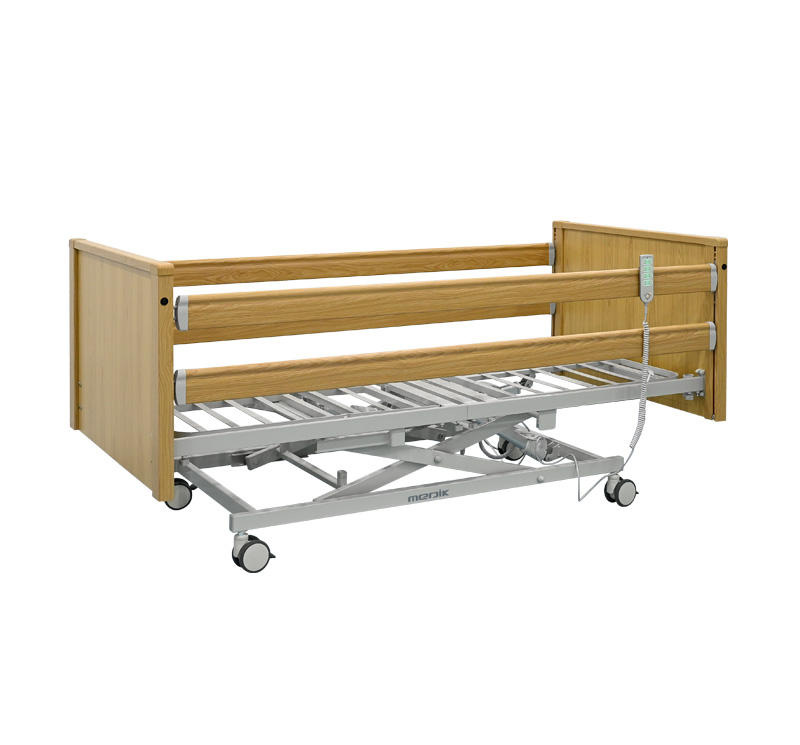

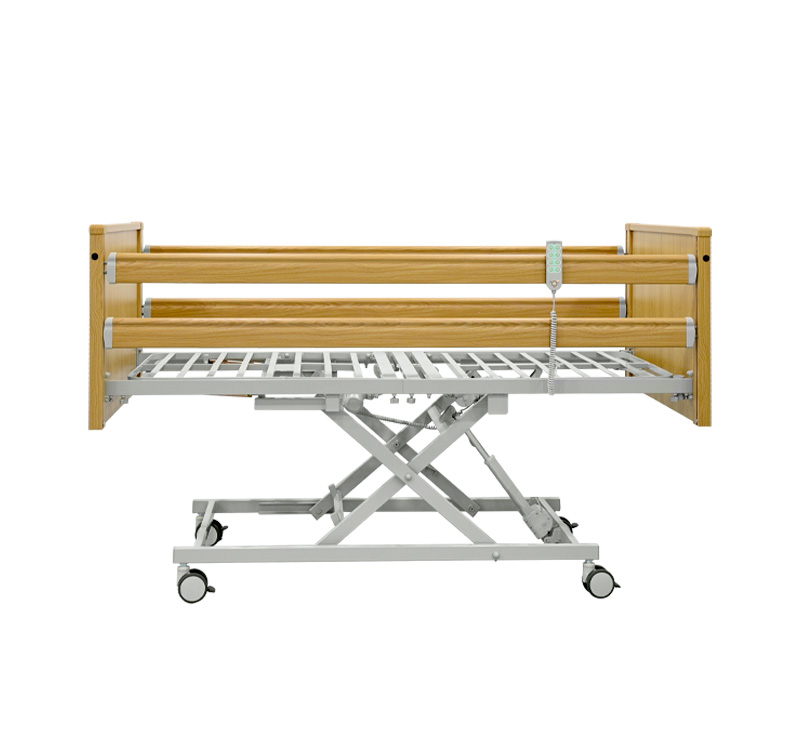

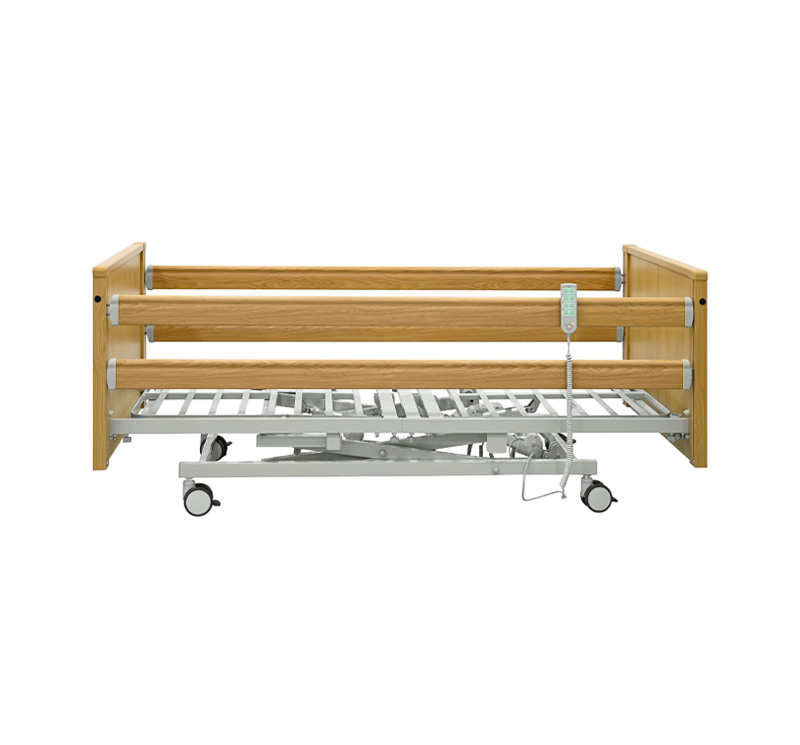

YA-DH3-1 is an electric bed with a scissor action type design for home care and nursing care centers. Full length protection side railing minimizes the risk of patients falling down, while multi-functionality of the bed also meets various needs of patient comfort as well as convenience for medical care staff. Outside wooden style frame gives an home-like environment for patients to keep them in good psychic condition.
Main features
- Electrically operated profiling bed for community and nursing home use.
- Safe work load (SWL) 180Kg.
- Wooden head and footboard with aluminum columns around.
- Adjustable self-locking side rails providing additional safety which can be released at both head and foot ends.
- Remote handset control.
- High-quality castors (castor diameter: 75mm).
- Electric CPR.
Options
● Lifting pole with triangle
● Urine bag stand
● Battery backup
● Extension kit
● Longer railing
Technical parameter
| Model | YA-DH3-1 |
| Overall size | 2120*1030*360mm (83.4″ x 40.5″ x 14.2″) |
| Lying size | 1900*900 mm (74.8″ x 35.4″ ) |
| Backrest adjustable | 0-75° |
| Footrest adjustable | 0-40° |
| Height adjustable | 360-760mm (14.2″~ 30″ ) |
| Castor size | 75mm ( 3″ ) |
| Loading capacity | 180kg(396 Ibs) |
