Home  /  Products / Hospital Bed / Home Care Bed

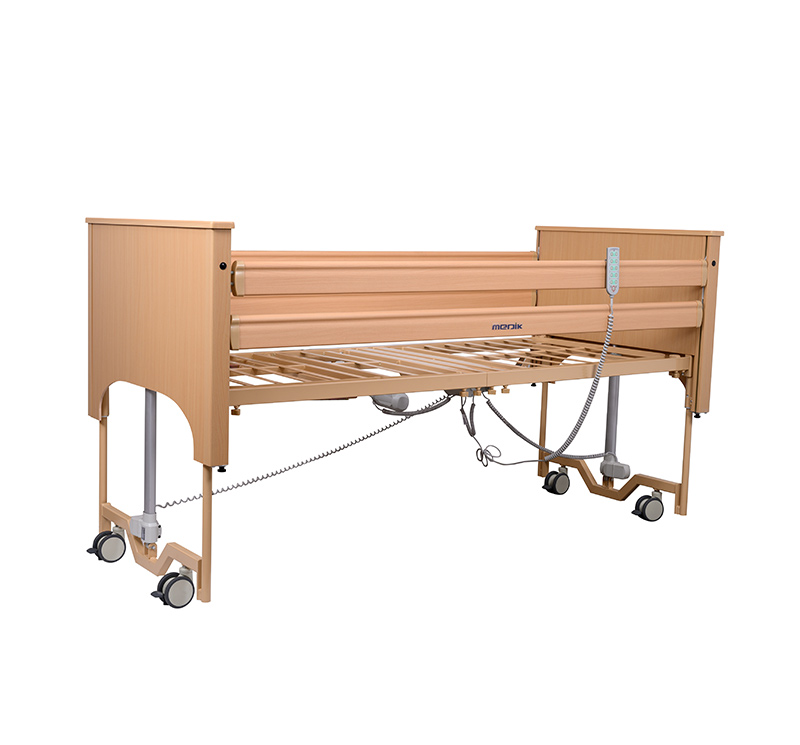

YA-DH5-3 Ultra Low Profiling Bed


Model: YA-DH5-3

Overall Size: 2160*1030 *300-700mm

Safe Working Load: 180kg

Functions: Backrest, Footrest, High-Low,Trendelenburg, Revere-Trendelenburg

Certificate: CE/ISO

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details
  • Downloads

Watch Video

This YA-DH5-3 is This YA-DH5-3 is ultra-low profiling bed with a minimum height of 300mm, the low height will minimize the consequence of bed falling. Full-length guardrails give perfect protection for patients from falling off. The entire wooden design generates the bed with a home-style bed environment.

Main features

- Electrically operated profiling bed for community and nursing home use

- Safe work load (SWL) 180Kg

- Variable height (300mm - 700mm)

- Wooden head and footboard with aluminum columns around

- Adjustable self-locking side rails provide additional safety which can be released at both head and foot ends

- Remote handset control

- High-quality castors (castor diameter: 100mm)

- Quick and easy assembly in limited space


- Lifting pole with triangle

- Urine bag stand

- Battery backup

Technical parameter

Overall size2160*1030 *300mm (85″ x 40.5″ x 12″)
Lying size1900*900 mm (75″ 35.5″ )
Height adjustable300-700mm (12″ – 27.5″ )
Backrest adjustable0-75°
Footrest adjustable0-40°
Loading capacity180kg(395 Ibs)
CasterDia100 ( 4″ )
