YA-DH5-9 Ultra Low Hospital Bed For Home care


Model: YA-DH5-9

Overall size:  2165*960*(220-760)mm

Function:  Back, Leg, Hi-low, Trendelenburg and Reverse Trendelenburg,Auto-regress

Safe working load: 200kg

Certificate: CE/ISO

  • Product Details

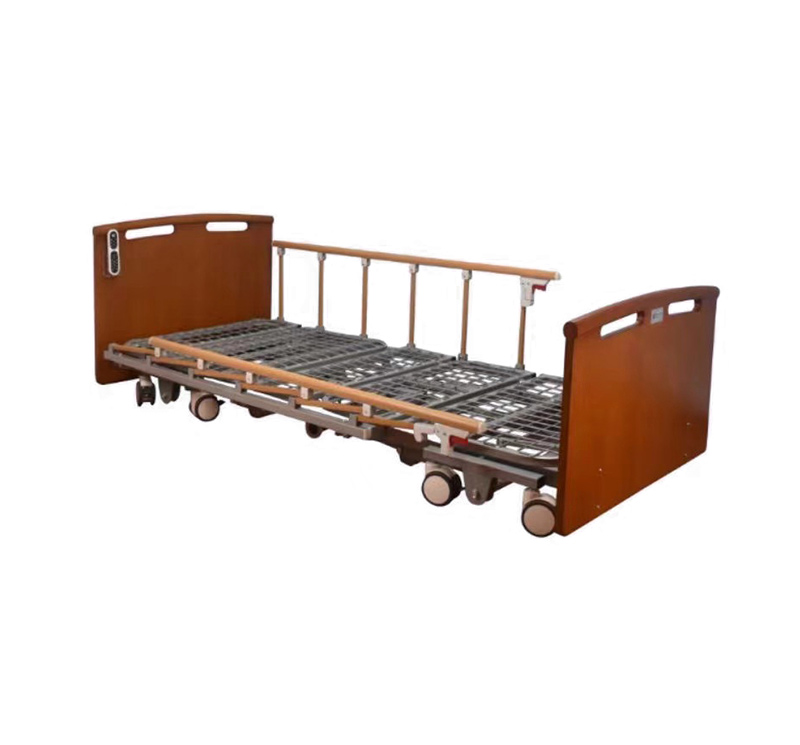

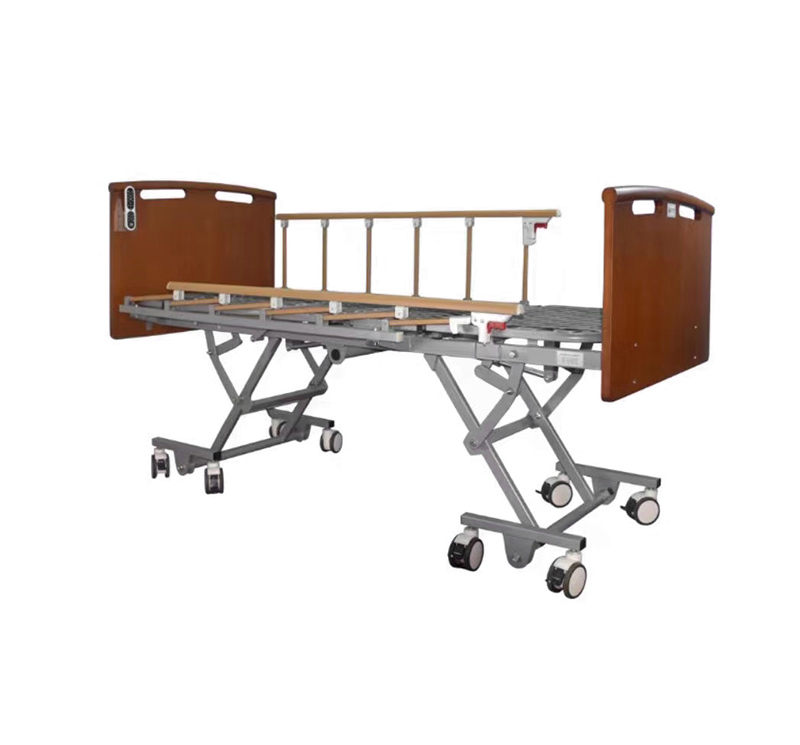

YA-DH5-9 is an electric Ultra low hospital bed for home care. With the extremely low height of 220mm, patient safety can be greatly protected in case of falling down. There will be no severe consequence to the patient in case of falling to a height of 220mm according to statistical research. The unique eight casters structure design provides great stability for the bed itself. The two beds can be combined to form a queen bed, which can be operated separately and enjoy the freedom to sleep without disturbing the other partner. Widely used in home care and nursing homes.

Main features

- With lithium battery, to prevent sudden power failure equipment can not be used;

- With a bedside lamp, it can help the patient to see the direction clearly at night, making the patient safer;

- With a USB charging interface, the patient can charge the mobile phone on the bed

- Equipped with electric CPR, which can quickly flatten the bed and gain time for rescue;

- Special functions: two beds can be combined into a large bed. After the two beds are combined, the height of the whole bed rises and falls synchronously, and the backboard and legboard lifts are controlled separately.

Technical parameter

Overall size2165*960*(220-760)mm

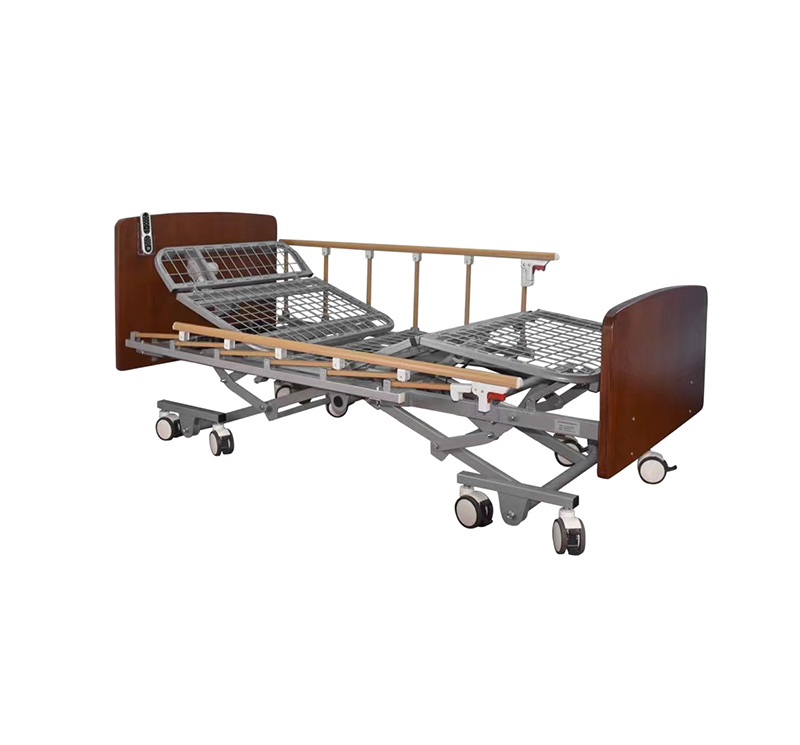

Back adjust0-75°
Foot adjust0-45°

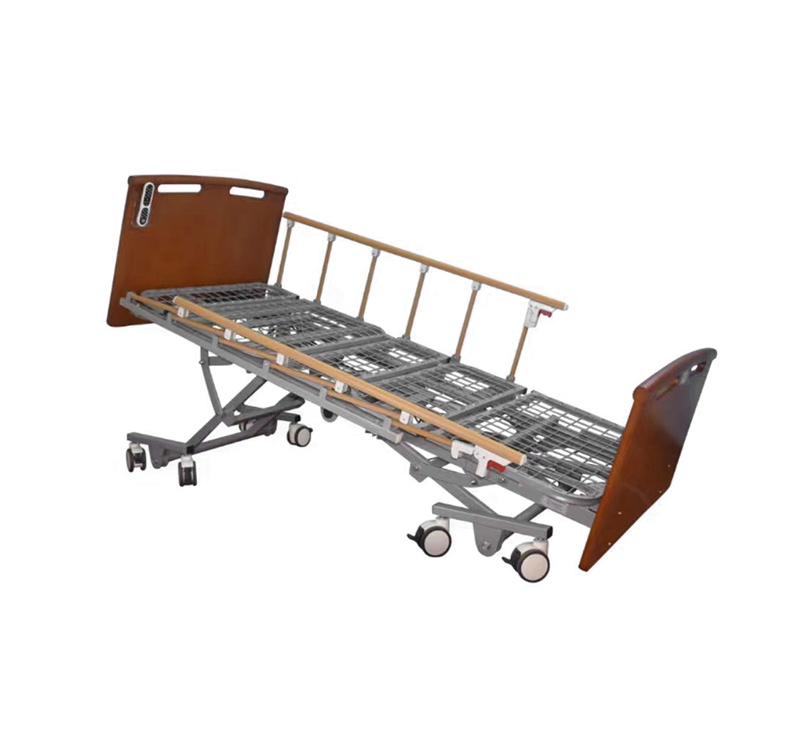

Reverse trendelenburg0-15°
Head section adjust0-30°
Load Capacity200kg
