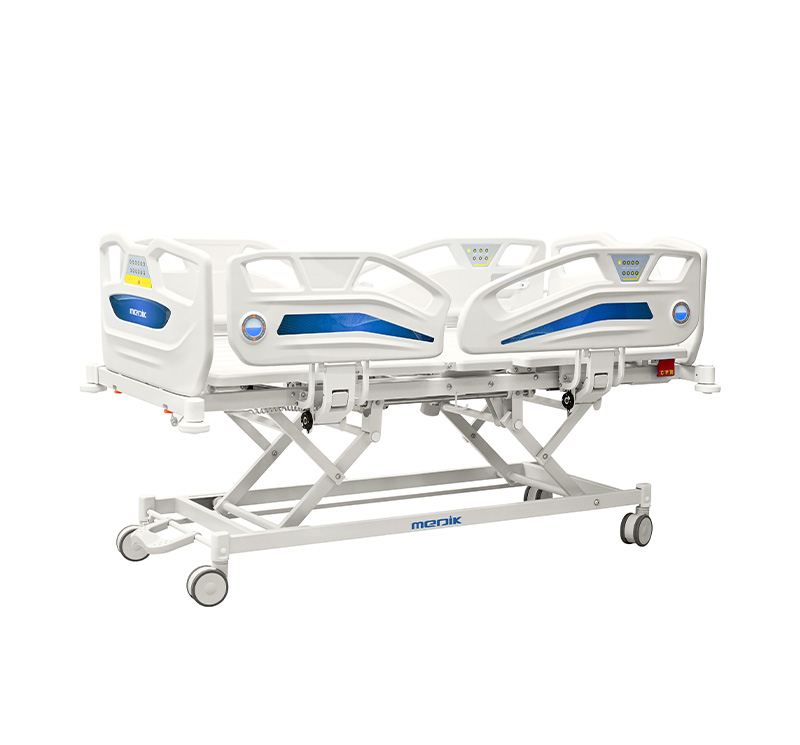

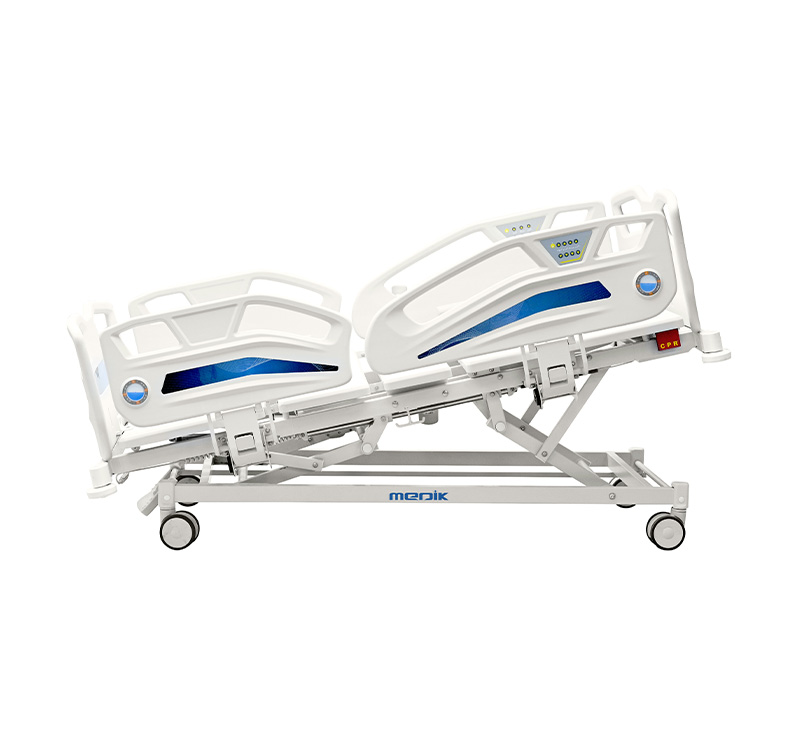

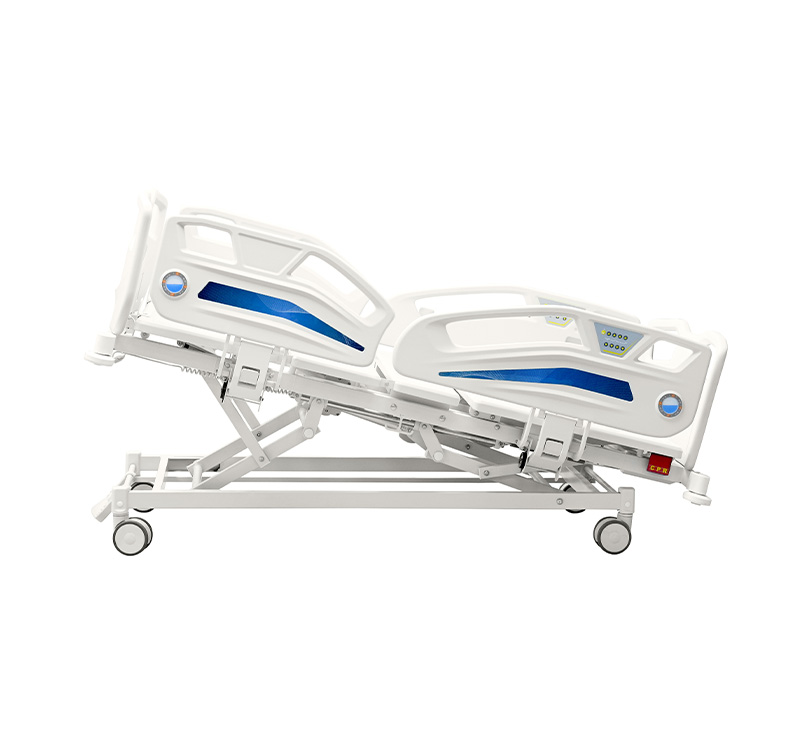

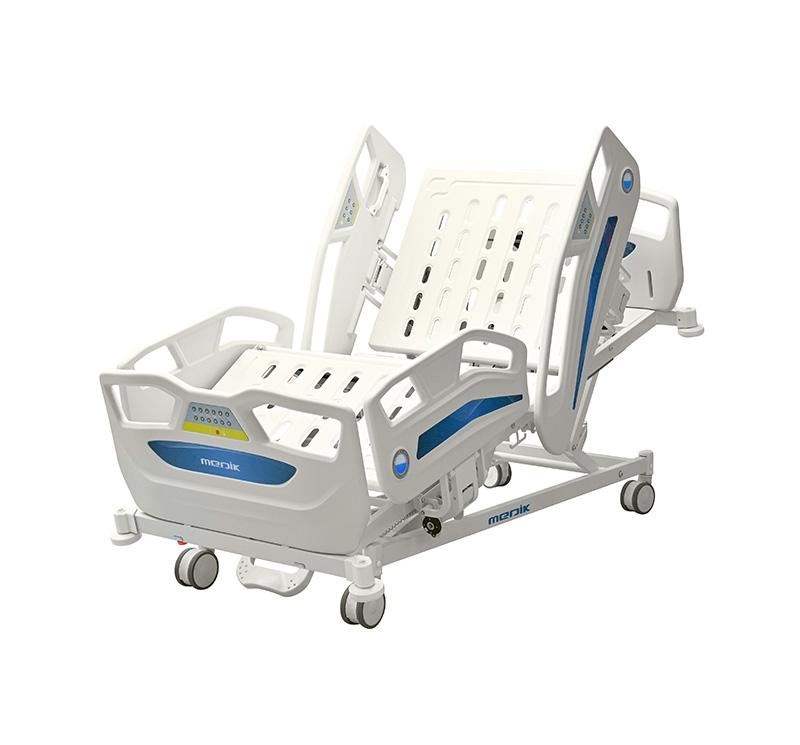

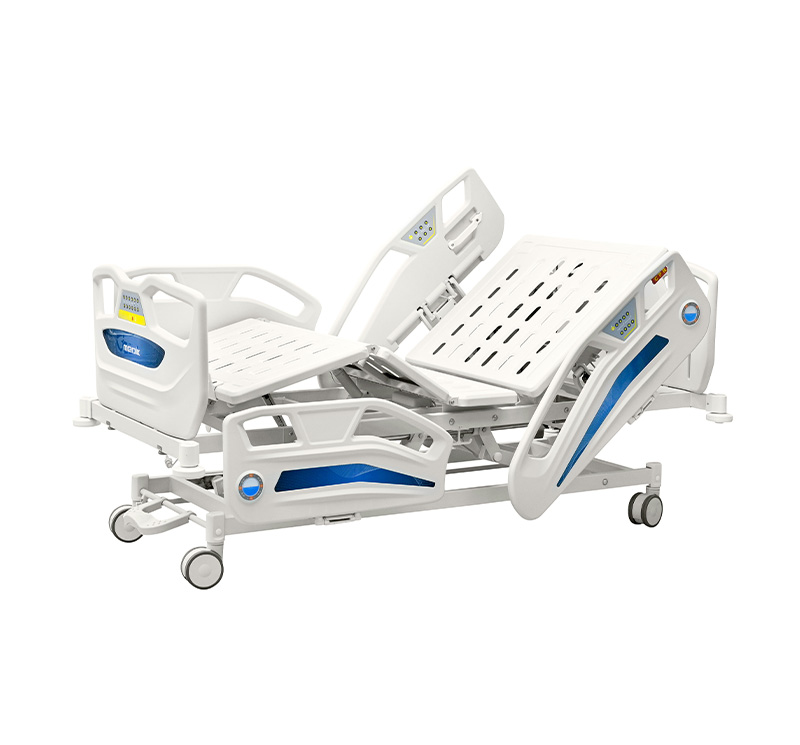

YA-D5-10 Remote Control Five Function Electric Bed With Central Locking

share

Model:YA-D5-10

Overall Size:2235*1100*520-770mm

Safe Working Load: 225kg

Functions:Back secticn adjustable,Foot secticn adjustable,High-low,Trendelenburg

,Reverse trendelenburg


Product Details

Features:

Four split side rail,drop down under platform

Hand remote control

Detachable head/foot board with easy lock

Central locking caster with diameter of 125mm

Bumper caster on four corners

Auto-counter to provide the patient from sliding onto foot end

Full length removable ABS platform

With angle indicator embeded in the railing for back and trendenleburg adjustment(optional)

Manual CPR on both sides(optional)


Technical features:

Model

YA-D5-10

Size

2235*1100*520-770mm

Lying surface:

1935× 890mm

High-Low:

500-780mm

Back secticn adjustable

0° to 75°

Knee secticn adjustable

0° to 40°

Trendelenburg

0° to 12°

Reverse trendelenburg

0° to 12°

Safe working load

225kg

Specification

  • Bed Frame Electrophoresis and powder coating

  • Bed platform ABS material bed platform

  • Motor Quiet and robust electric actuators provide reliable operation

  • Hand remote controller of all electrically operated functions and movements

  • Handrails Four split side rail,drop down

  • Head and Foot board ABS material, detachable

  • Castors:Central locking caster with diameter of 125mm

  • Bumper castors Bumper castors on 4 corners of bed

  • Angle indicator With angle indicator embeded in the railing for back and trendenleburg adjustment(optional)

  • Auto-counter function Auto-counter to provide the patient from sliding onto foot end

  • Manual CPR function Control by the CPR handles on both sides of bed to realize the CPR procedure in one step

Standard Accessories:

  • Head/Foot Board 2 pieces

  • Side Rails 4 pieces

  • Bed Frame 1 set

  • Bed Boards 4 pieces

  • Casters 4 pieces

  • IV Pole Holder 4 pieces

  • IV Pole 1 piece

  • Drainage Bag Holders 2 pieces
