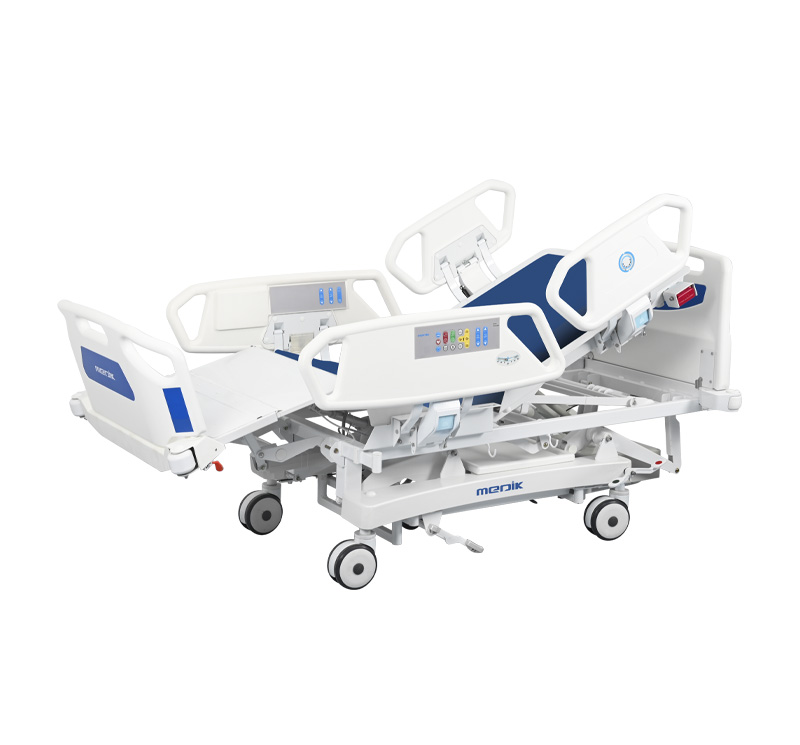

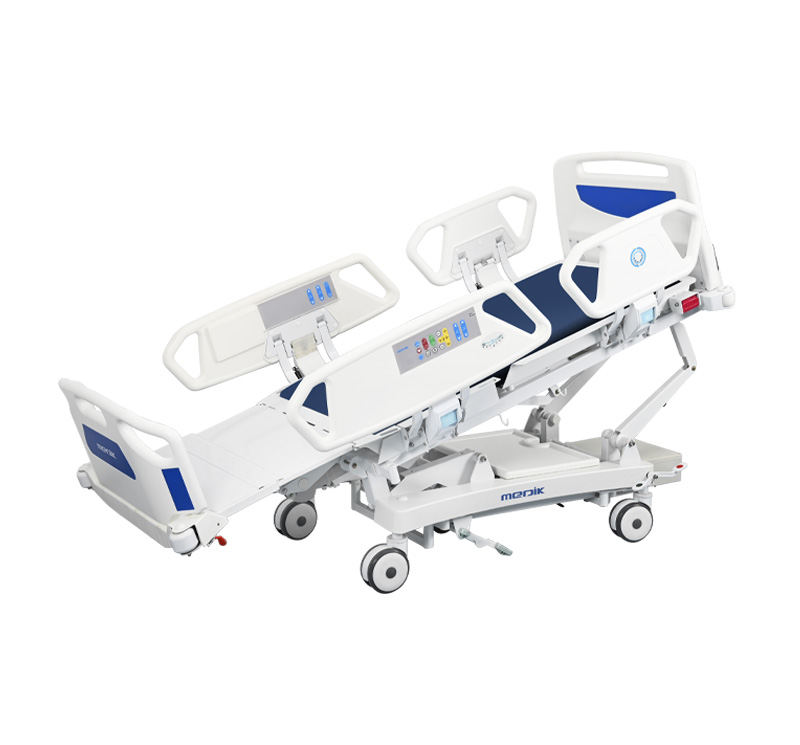

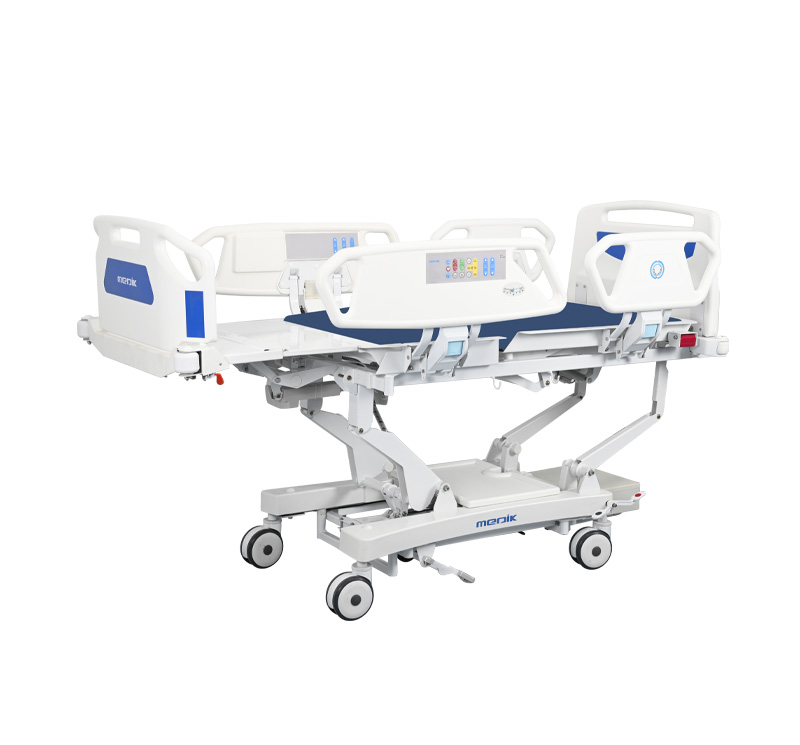

YA-D8-1 Cardiac Chair Position Hospital Bed ICU Room

share

Model: YA-D8-1

Overall Size: 202-223*105*55-95cm

Maximum Static Safe Load :400kg

Maximum Dynamic Safe Load :230kg

Functions: Backrest, Footrest, High-low, Trendelenburg, Reverse trendelenburg,One button chair position,One button electric CPR

Certificate:  ISO/CE

  • Product Details

The YA-D8-1 Intensive care bed design in consideration of both caregivers and patients, incorporating in humanized design, with systematic practical features, the total cardiac chair bed alleviates the workload of caregiver and provides patient with dignity.

Brief introduction:

Design in consideration of both caregivers and patients, incorporating in humanized design, with systematic practical features, the total chair bed alleviates the workload of caregiver and provides patient with dignity. The study and statistics show it provides great convenience during patient in bed, bed-exit, transportation, monitor of patient state, etc.. comparing with other normal ICU bed.

Main features

- Total chair position

- 7 movements electrical operation

- Four split side rail, drop down under the bed platform

- Incorporated railing control with easily identifiable icon

- Nurse control facing outside of the rail

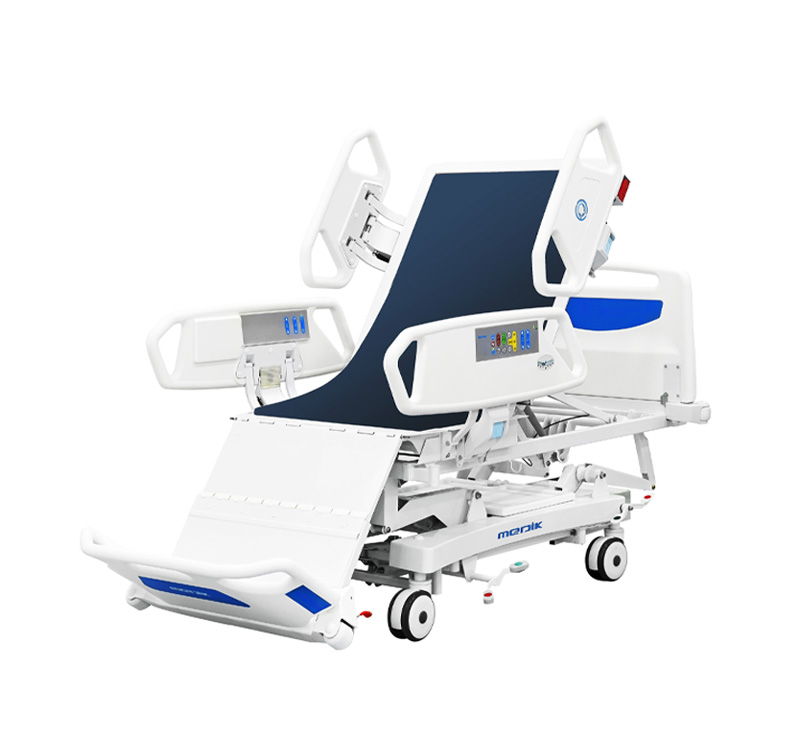

- One button chair position

- One button exam position

- With angle indicator embedded in the railing for back and Trendelenburg adjustment

- X-ray translucent back section

- Detachable head/footboard with easy lock

- Pushing handle located along with the head frame

- Fifth wheel for direction

- Central brake system with a wheel diameter of 150mm

- Bed extension by motor

- Auto-regress to remove the pressure of the abdomen when adjusting the backrest

- Auto-counter to provide the patient from sliding onto foot end

- Night light

- Electric CPR and manual CPR on both sides

- Bumper caster on four corners

Technical parameter

Overall size2020-2230*1050*550-950mm
Lying surface1960* 900mm
Backrest adjustable0-75 °
Knee adjustable0-40 °
Height adjustable550-950 mm

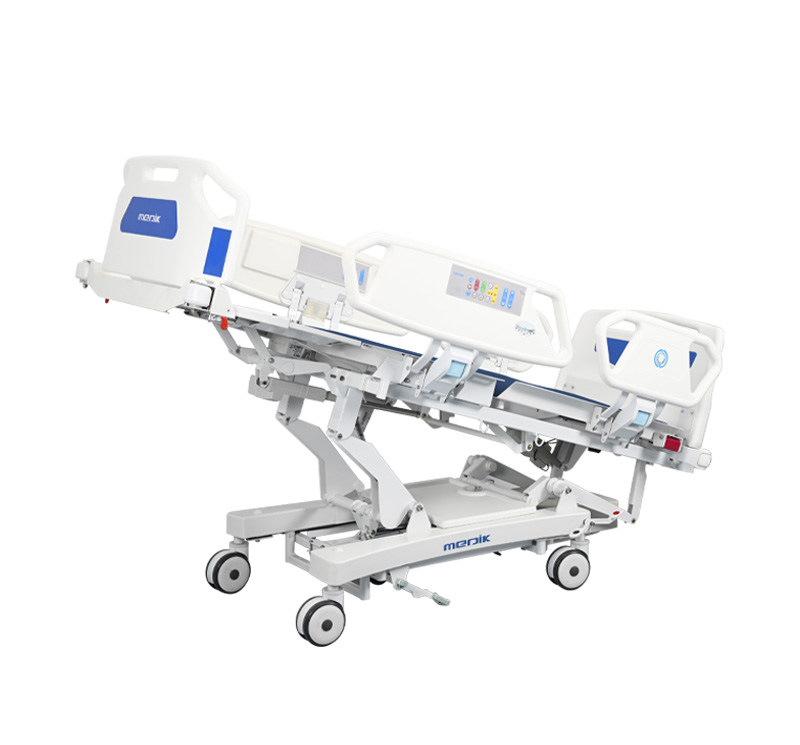

Trendelenburg-0 to 15 °
Reverse Trendelenburg-0 to 15 °
Extending functionFrom 2020mm to 2230mm
Safe working load230kg
Max load capacity400kg
