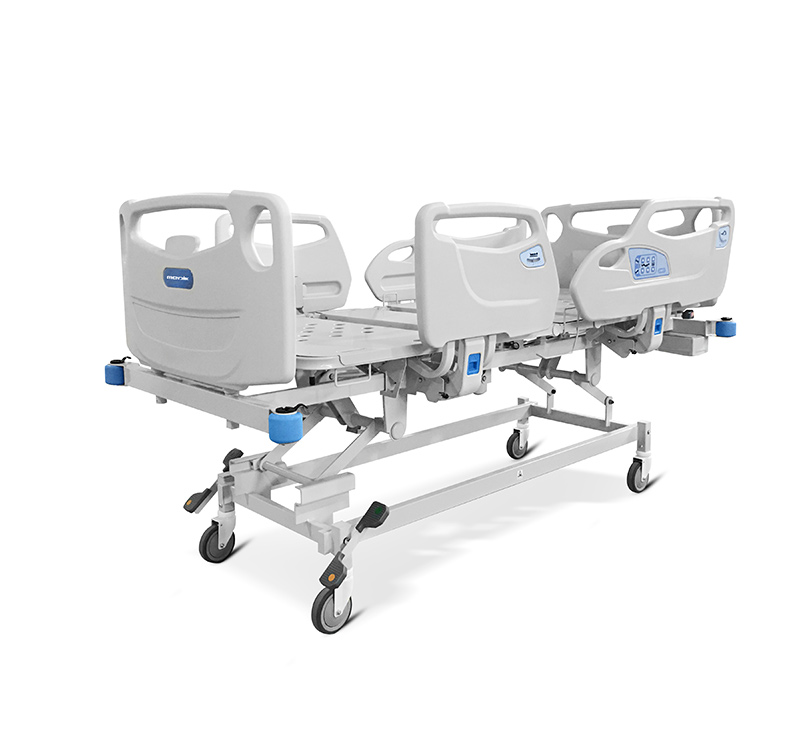

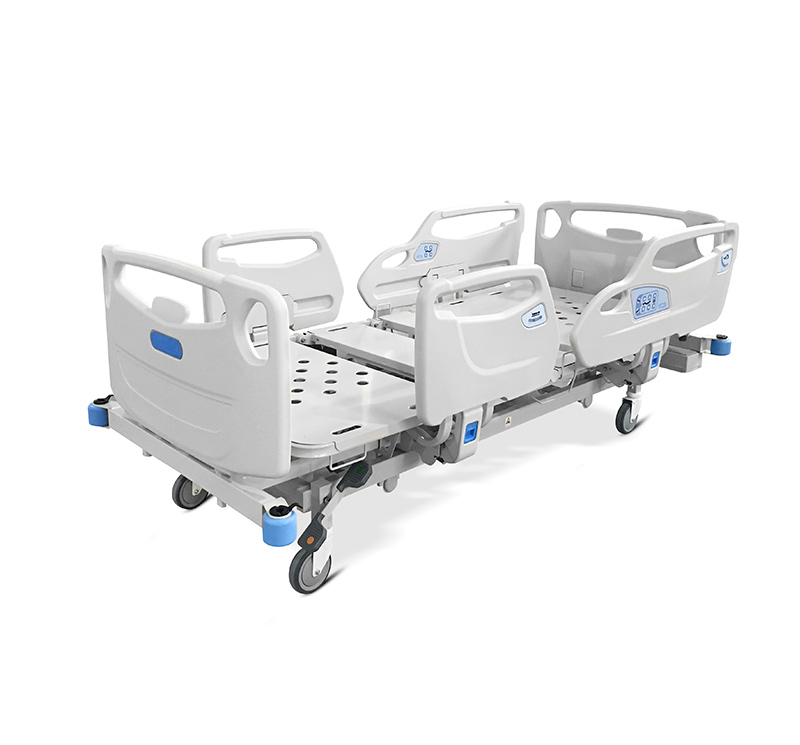

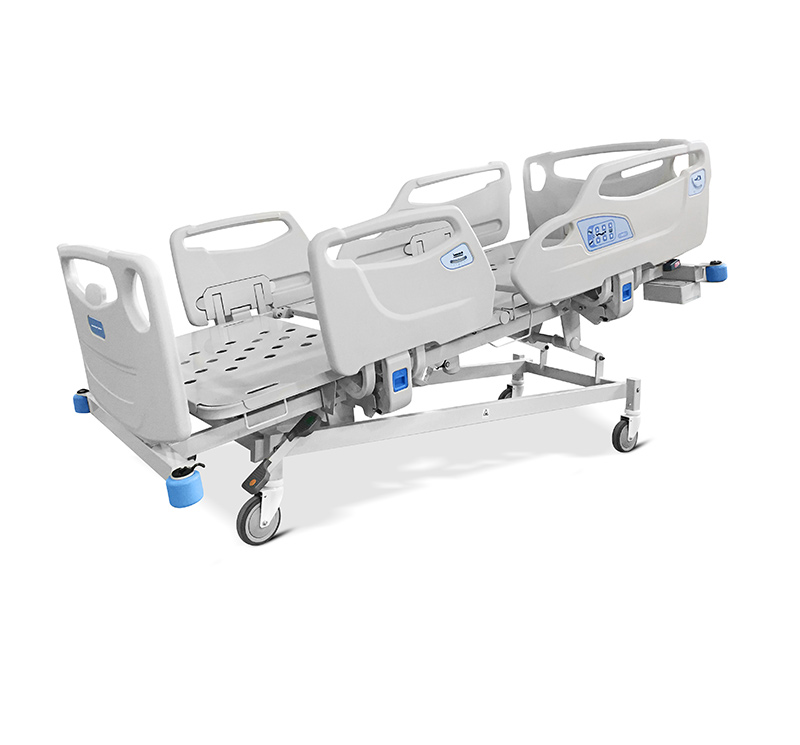

YA-D5-13 New Electric Adjustable Medical Bed

Share:

Model: YA-D5-13

Overall Size: 2230*1000*465~765mm

Safe Working Load: 220kg

Funtions: Backrest, Footrest,High-Low,Trendelenburg,Revere- Trendelenburg

Certificate: ISO/CE

Motor:  Jiechang motor ( Liank/Timotion/Dewert motor option)

Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

After-sale Service: Online technical support

Customization:  Available


  • Product Details
  • Downloads

The YA-D5-13 ICU bed is compactly designed with an elegant appearance, easy to operate. Wide range height adjustment facilitates medical operation.

Main feature

- With embedded railing control, visible icons, with nurse control panel facing outside and limited button facing the patient.

- Central brake system is adopted with dual braking pedals on both sides for easy manipulation

- Bumper caster is located on four corners of the bed

- Manual CPR lever is located on both sides

- Angle indicator is achieved on the railing, especially the 30 degrees for back section adjustment is clearly marked for frequent use.

Technical parameter

ModelYA-D5-13
Size2230*1000*465mm (87.7″ x 39.3″ x 18.3″)
Bed surface1937*865mm (76.2″ 34″ )
Backest adjustable0-70°
Footrest adjustable0-25°
Calf section-15°-15°
Height adjustment465-765mm (18.3″ – 30.1″ )
Trendelenburg0-12°
Reverse trendelenburg0-12°
CPR functionYes
Loading capacity230kg(507 Ibs)
