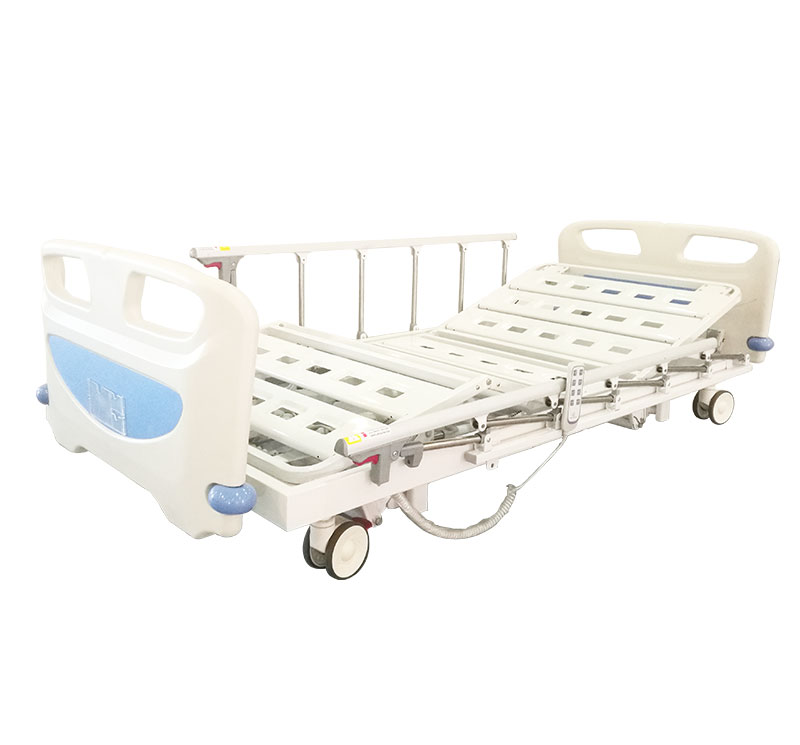

YA-D3-1 Three Function High Low Electric Hospital Beds

Share:

Model: YA-D3-1

Overall Size: 2120*1010*260-640mm

Safe Working Load: 215kg

Function: Backrest, Footrest adjustable,High-Low

Color options:  Green, Blue, Wood

Motor:  Jiechang motor ( Linak/Timotion/Dewert motor option)

Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

After-sale Service: Online technical support

Customization:  Available

Certificate: CE / ISO


  • Product Details

Main features

- Extra-low bed with a height of 260mm

- ABS head/footboard, detachable with the bumper on four corners

- Hand remote control

- Manual CRR of both side back section.

- Heavy-duty caster, the diameter of 125mm castors. Four castors and two with brakes.

- 10 pieces divided platform to get a smooth curve

- Six columns collapsible aluminum alloy railing

- Battery backup.

- I.V. pole with six IV pole support hole.

- Urine bag hook on both side.

 Accessories

- IV stand

- Urine bag hook

- Hand remote controller

 Options

- Nurse controller

Technical parameter

ModelYA-D3-1
Overall size2120*1010*260mm (83.4″ x 39.7″ x 10.2″)
Back section up/down0-75°
Foot section up/down0-40°
Height adjustment260-640mm (10.2″ – 25.1″ )
Safe loading capacity215kg(473 Ibs)
