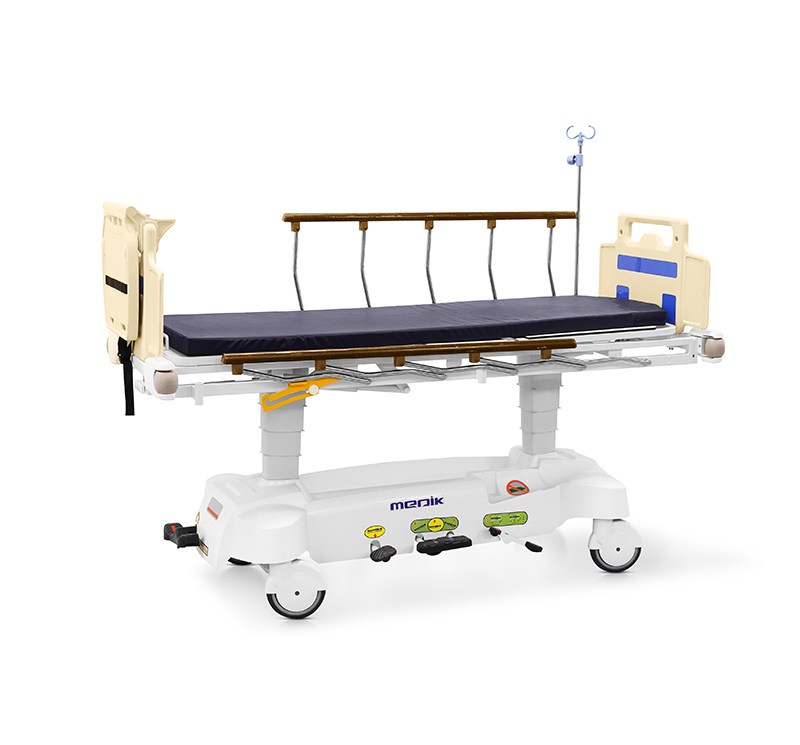

YA-PS03 Hydraulic Patient Transportation Stretcher

Share:

Model: YA-PS03

Overall SizeL 2150*W 800*H 600~930 mm

Safe Working Load: 220kg

Functions: Backrest,Footrest, High-low, Trendelenburg,Reverse Trendelenburg

Certificate: CE/ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

Excellent manipulation and steering, ergonomic design to alleviate the workload of medical staff, plus the equipped most famous pump system, YA-PS03 is able to ensure the perfect operation experience and safety for both patients and medical staff during transfer. The unique design railing provides a convenient bridge for patient easy move from stretcher to bed.

Main features

- Back lifting system: controlled by silent double gas springs, strong load bearing and good stability.

- High and low lifting system: imported brand hydraulic cylinder control, more stable quality.

- Knee adjusted by crank.

- The feet can be adjusted separately with the gear buckle.

- Bed platform: transparent, with 7 cm thick mattress and straps,suit for X-RAY.

- Frame: welded by high-quality steel bent pipe.

- PP resin molded side rail with angle display.

- The side rail can be fixed horizontally.

- Casters: Four casters with diameter 200mm are adopted with central locking.

- Fifth guide wheel.

- Equipped with an infusion pole, which can be stored in the infusion stand storage rack under the bed.

- The surface of the mattress is waterproof, easy to clean, equipped with zippers,and the 7 cm sponge is comfortable to lie on.

- Anti-collision wheels around the bed.

- There is a P-shaped push handle at the head of the bed and a U-shaped handle at the end of the bed.



Accessories list:

- Two guardrails.

- One set of the fifth wheel .

- Two lifting air springs on the back.

- One knee handle.

- One integral bottom tray.

- One infusion stand.

- Four standard infusion stand jacks.

- One waterproof mattress.

- Recording table (optional) One piece.

Technical parameter

ModelYA-PS03
Overall sizeL 2150*W 800*H 600~930 mm
Bed sizeL1915*W 640 mm
Back section adjustment0 ~ 90°±5°
Knee section adjustment0 ~ 40°±5°
Foot section adjustment0 ~ 30°±5°
Trendelenburg/Reverse trendelenburg-15°~ 15°±2°
Side rail height≥315mm
thinnest point of side rail≥20mm
Load bearing of side rail≥15kg
Load bearing of urine bag hook≥30kg
CastorDia 200mm
Oxygen bottle bracket capacitySingle is ≥10L
Bottom storage plate size≥380*300mm
Load bearing of Bottom storage plate≥10Kg
Safe working load220KG
