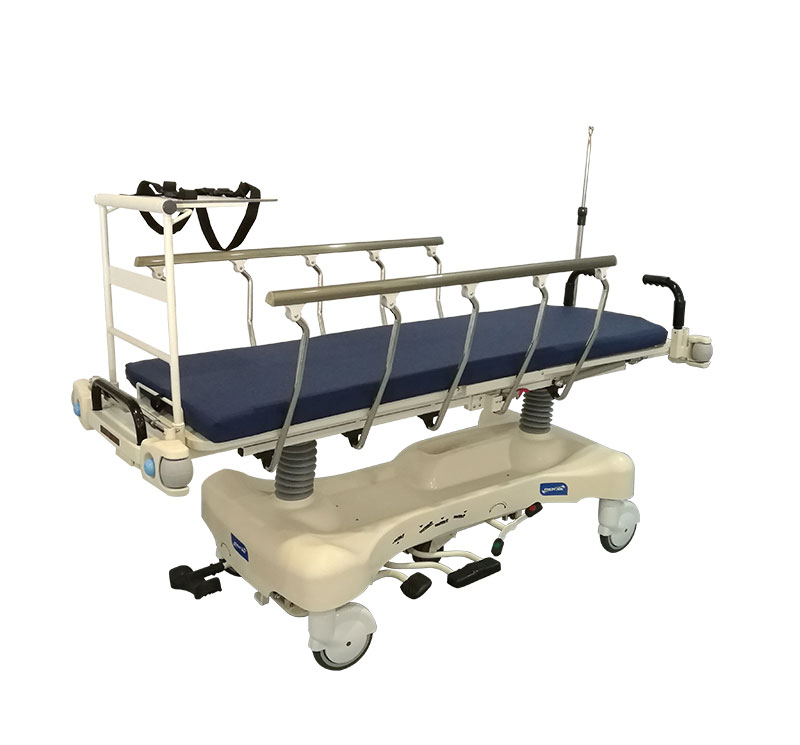

YA-PS02 Hydraulic Hospital Patient Trolley

share

Model: YA-PS02

Overall Size: 212*80*61-93cm

Safe Working Load: 180kg

Functions: Back section adjustable, Knee section adjustable, High-low, Trendelenburg,Reverse Trendelenburg

Certificate: CE/ISO

  • Product Details

Watch Video

The YA-PS02 Hydraulic patient trolley is compatible with most conventional X-Ray and C-Arm imaging equipment and has a fully radio-translucent mattress.

Main features

- Reliable hydraulic pump of Power-packer brand

- Two-column structure, accessible for C-arm

- Foldable pushing handle on both ends

- Robust collapsible railing, easy to lock up

- Central locking system with 200mm diameter, easy for transportation

- With 5th retractable wheel in the middle for direction

- Moulded base chassis with reservation for oxygen cylinder and patient belongings

- Foot operation pedal on available on both sides

- Central brake pedal located on the bed end side, can brake it easily

- Bumper caster located on the four corners

- X-ray translucent platform (optional)

- Monitor shelf (optional)

Accessories

- Mattress

- IV pole

- Pushing handle

Options

- Monitor shelf

- X-ray translucent platform

Technical parameter

Overall size2120*800*630-930mm
Back section adjustment0-85°
Foot section adjustment0-45°
Height adjustment630-930mm
Trendelenburg0-15°
Reverse trendelenburg0-15°
CasterDiameter 200mm
Loading capacity235kg
