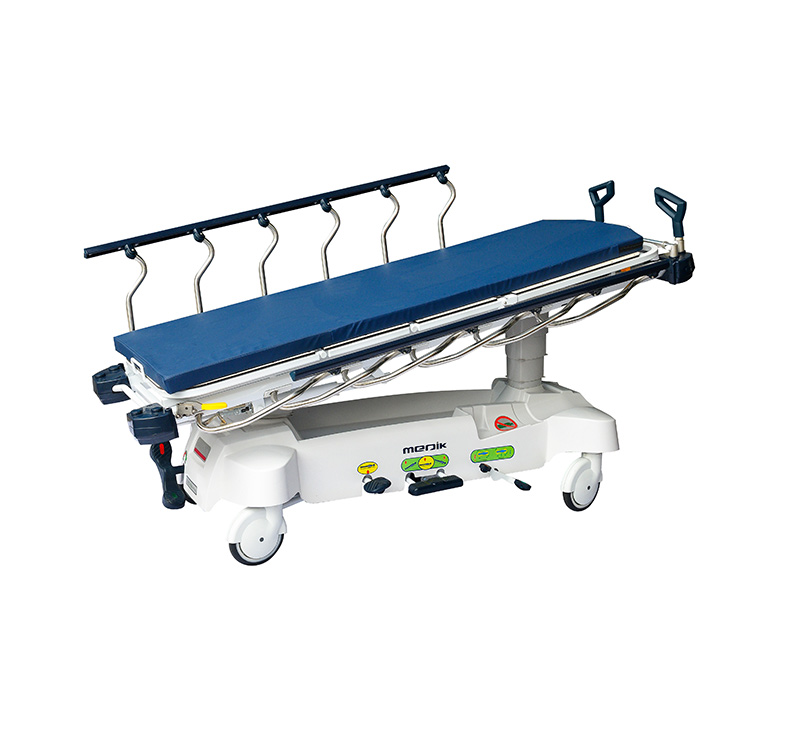

YA-PS07 Hydraulic Patient Transport Stretcher

share

Model: YA-PS07

Overall Size: 2130*930*530-870mm

Safe Working Load: 250kg

Functions: Backrest,  Kneerest, High-low, Trendelenburg ,Reverse trendelenburg

Certificate:  ISO/CE

  • Product Details
  • Downloads

Watch Video


The YA-PS07 hydraulic transport stretcher is specially designed for patient transfer between different departments with excellent manipulation and trafficability.

Main features

- 550 lbs (250 kg) weight capacity

- Full length X-ray translucent platform

- Dust covers protect hydraulic actuators

- Back section can be elevated with gas springs

- Knee gatch can be elevated with stowable manual crank

- Collapsible side rails for transfers or patient access

- Side rails lock in upright position for safety

- Storage area in base for oxygen E-cylinder tanks and belongings

- Two brake pedals, one at foot of stretcher and one at head

- 8 inch swivel casters with central braking system

- Retractable 5-inch wheel for easier maneuvering

- Dual, side-mounted foot control with pedal

- Includes removable telescopic IV pole

- Built-in ergonomic push handles can be rotated down for storage

- Shock-absorbing,roller bumpers

- Ideal for emergency rooms, recovery, pre-op, and post-op

Technical parameter

ModelYA-PS07
Overall size2130*930*530-870mm
Back section adjustment0-80°
Foot section adjustment0-35°
Height adjustment530-870mm
Trendelenburg0-15°
Reverse trendelenburg0-15°
Loading capacity250kg
