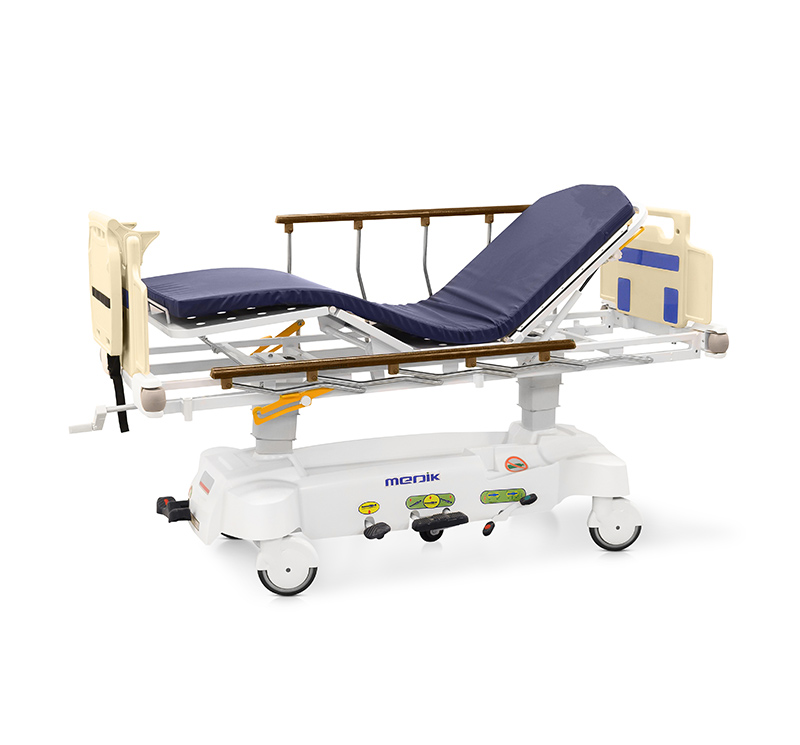

YA-PS07B Patient Transfer Stretcher For Emergency Room

Share:

Model: YA-PS07B

Overall Size: 2130*820*590-910mm

Safe Working Load: 225kg

Functions: Back section adjustable, High-low, Trendelenburg, Reverse-Trendelenburg

Certificate:  ISO/CE

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

With the new two-in-one concept of emergency transport trolley and temporary bed, the YA-PS07B stretcher is equipped with head/foot board, hydraulic operation system, excellent transport and steering function, all these functions make the stretcher an ideal option for ER and hospital transfer solution.

Features

- Thermoformed base cover is seamless and easy to clean.

- Base design includes a built-in oxygen tank holder and storage area for patient belongings.

- Dual pedestal base construction ensures patient stability.

- Adjustable patient surface features powder-coated finish.

- Pneumatically-assisted fowler adjusts backrest positioning zero to 75 degrees.

- Hydraulic foot controls manage height adjustment, Trendelenburg positioning.

- Non-marking corner bumper system protects walls.

- Four brake/steer levers at each corner for easy maneuvering.

- Head-mounted I.V. pole.

- Dual accessory wells at each corner for multiple accessory configurations.

Technical parameter

ModelYA-PS07B
Overall size(L*W*H)2130*820*590mm (84″ x 32″ x 23″)
Height adjustment590-910mm (23″ – 36″ )
Back section adjustment0-75°
Foot section adjustment0-35°
Trendelenburg0-15°
Reverse trendelenburg0-15°
CastorDia 200mm ( 8″ )
Loading capacity250kg(550 Ibs)
