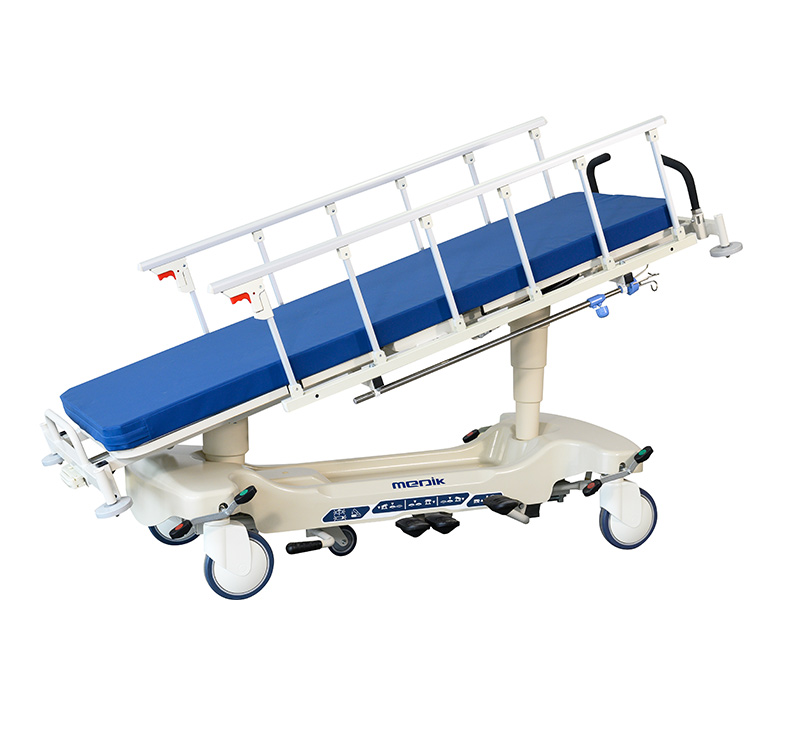

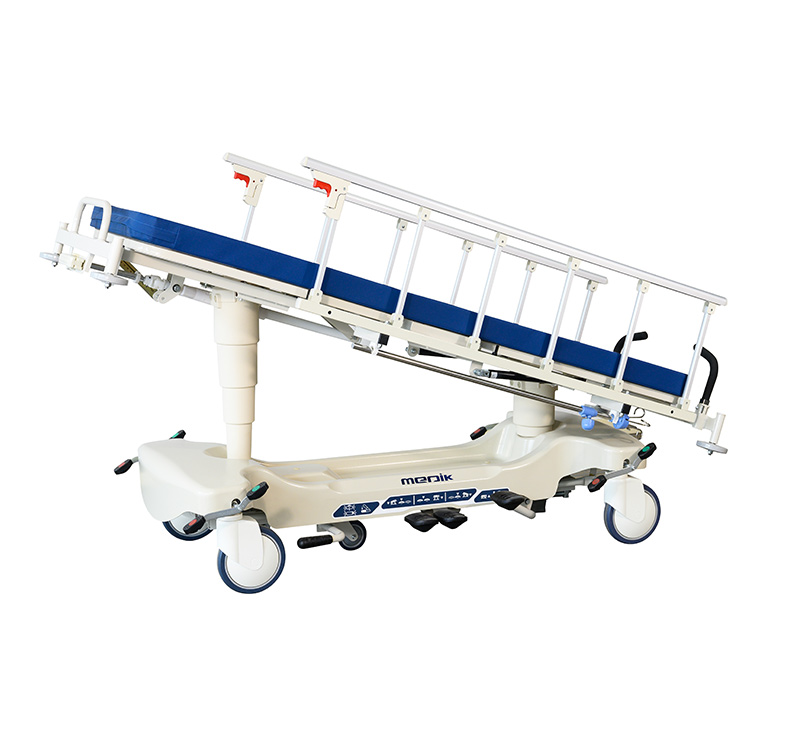

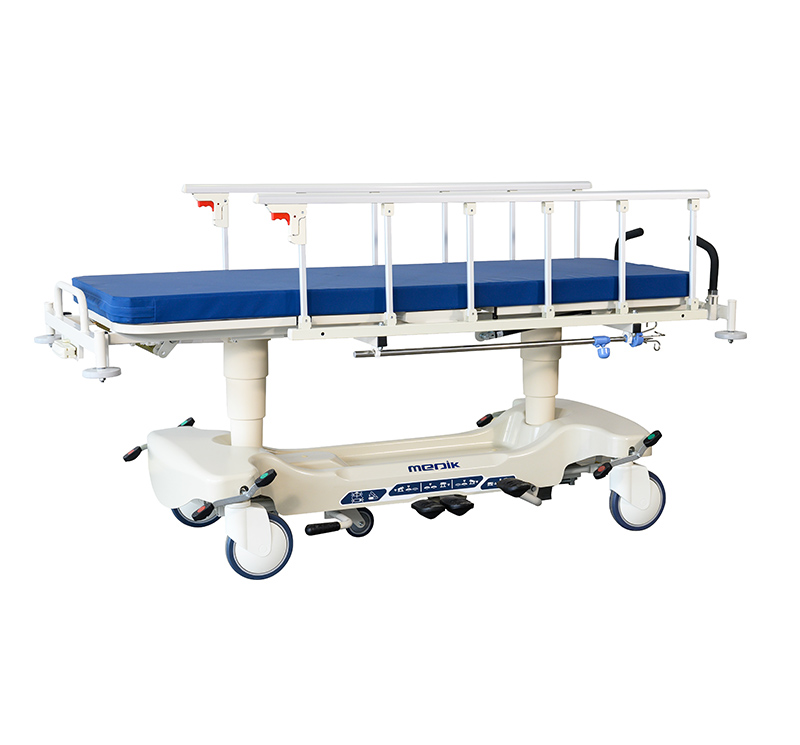

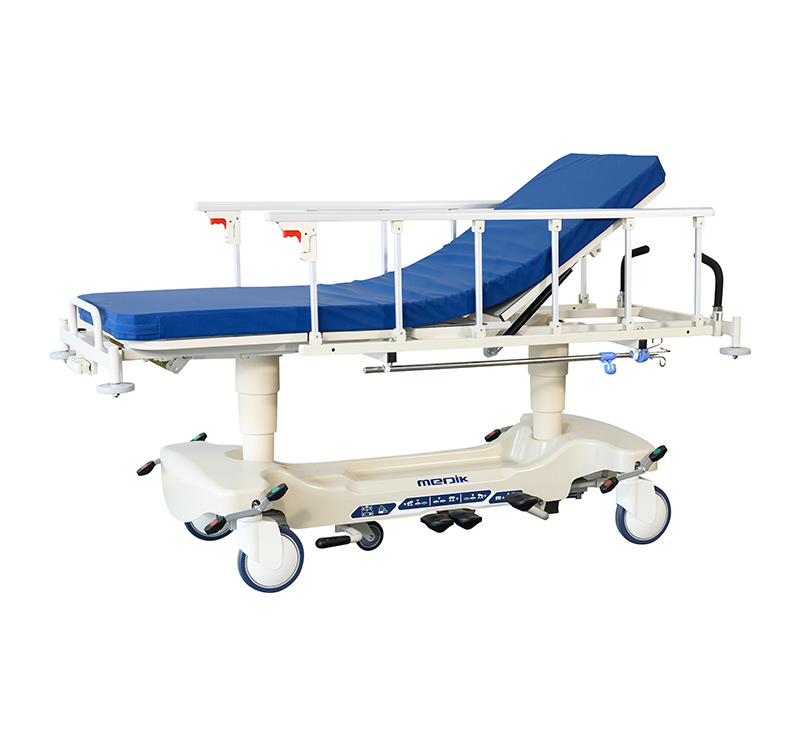

YA-PS02-E Patient Trauma Stretcher

share

Model: YA-PS02-E

Overall Size: 210*85*68-98cm

Safe Working Load: 180kg

Functions: Back section adjustable, Knee section adjustable, High-low, Trendelenburg,Reverse Trendelenburg

Certificate: CE/ISO

  • Product Details

With its standardized platform, Medik’s Trauma Stretcher is ideal for use in virtually any transport situation. Whether you are in triage, radiology, or attending to critical patients this standardized platform provides the functionality needed for trauma situations with the mobility required for transporting. A full-length x-ray cassette access provides ultimate imaging flexibility from head to foot.

Key features

- Reliable hydraulic pump of Power-packer brand

- Two-column structure, accessible for C-arm

- Foldable pushing handle on both ends

- Robust collapsible railing, easy to lock up

- Central locking system with 200mm diameter, easy for transportation

- With 5th retractable wheel in the middle for direction

- Moulded base chassis with reservation for oxygen cylinder and patient belongings

- Foot operation padel on available on both sides

- Central brake padel located on the bed end side, can break it easily

- Bumper caster located on the four corners

- X-ray translucent platform

- Monitor shelf (optional)

Technical parameter

Overall size2120*850*680-980mm
Back section adjustment0-85°
Foot section adjustment0-45°
Height adjustment680-980mm
Trendelenburg0-15°
Reverse trendelenburg0-15°
CasterDiameter 200mm
Loading capacity235kg
