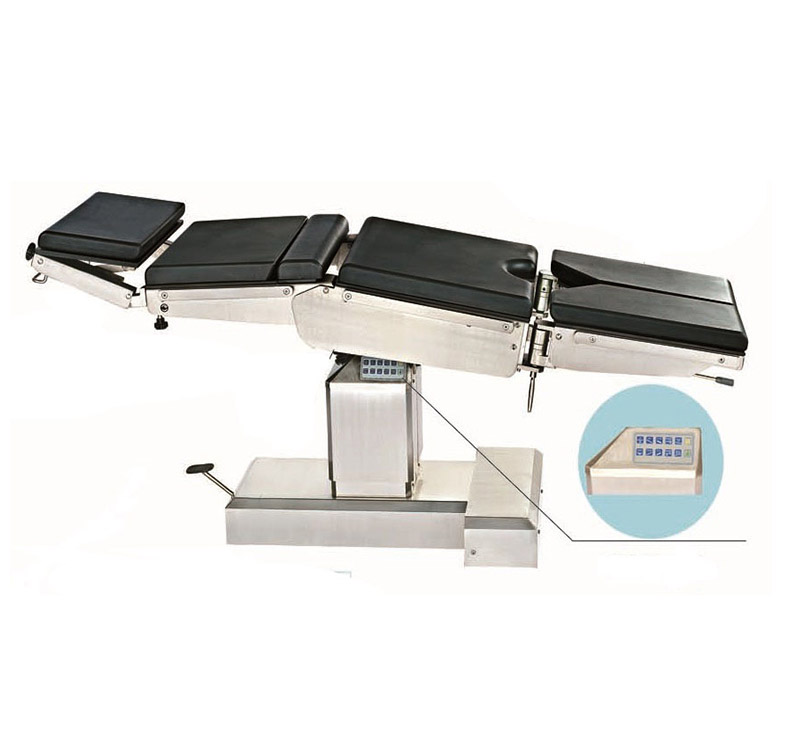

YA-07E Orthopedic Surgery Table


Model: YA-07E

Overall Size:2180*555*750-1000mm

Loading capacity 235kg

Certificate: CE/ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details

Main feature

- Mechanical system for waist board lifting of electric operating table

- AISI304 stainless steel structure and chassis

- Polyurethane shaped mattress which is easy to remove and clean

- With lateral control system incoporated to side column

- Four 125mm wheels for moving the OT table, which are with central braking system

- With movements of horizontal and longitudinal for C-arm photography examination

- With four 125mm wheels to move the table, which are with twin-wheel central braking system

-Eight independent motors for movements of HI-LO, back section, Trendelenburg and ReverseTrendelenburg, Lateral tilting function, Horizontal and longitudinal movement (For C-arm examination), Leg section(separated left or right leg section, also left and right leg section as one united set), auto-contour of operating table

- Gas spring for headrest movement

- Mechanism system for waist board lifting

- Leg section can be removable, then connected to orthopedic traction shelf directly

- With lateral control system incoporated to side column, which is with blocking system for movements

Technical parameter

Overall size2180*555*750-1000mm
Head board fold upward and fold downward≥30°/≥90
Back board fold upwardand fold downward≥70°/≥15°
 Leg board fold downward and fold outward≥90°/≥90°
Trendelenburg and reverse-trendelenburg≥25°
Left and right tilting angle≥20°
Loading capacity235kgs
Waist board lifting≥110mm
Horizontal and longitudinal movement≥350 mm
PowerAC220V 50HZ/110V 60HZ Input power: 150VA
Packing144*78*90cm=1.01M3     G.W.: 350kgs

Standard accessory

1 pair armrests

1 pair waist support holder

1 pair shoulder supporter

1 pair leg holders

1pc anesthesia screen

1 pair footrests

Hand controller
