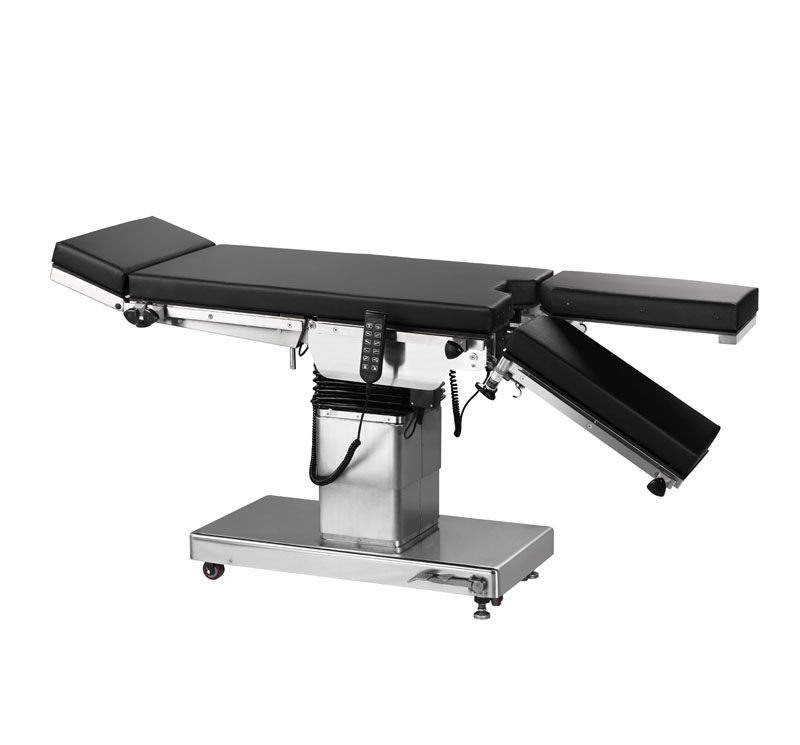

YA-03E C-arm Compatible Operating Table


Model: YA-03E

Overall Size: 2070*550*700-1000mm

Maximum Safe Load :250kg

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details

Watch Video

Main features

- Suitable for C-arm and X-ray

- Touch remote control

- It adopted micro touch remote control,any movements can be adjusted by it

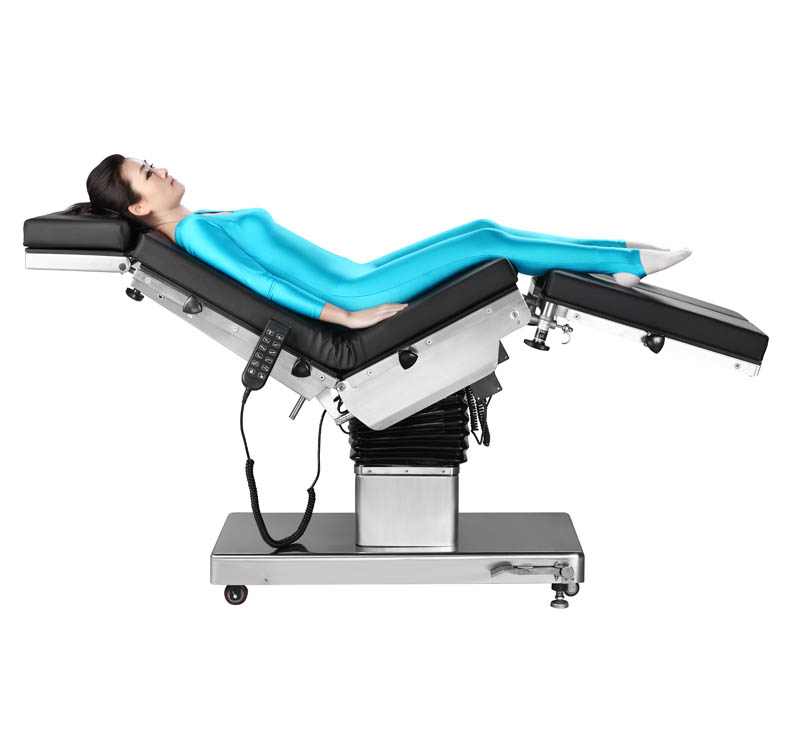

- Flexible adjustment on head section,back section and seat section.built-in kidney bridge

- High automation,low noise,high reliability

- Memory pad with antistatic, waterproof design

- Fixing clamp for the accessories

- Key parts imported from abroad,can be regarded as an ideal electric table

Technical parameters

Tabletop Length/width 2070/550mm
Tabletop Elevation(up/down) 1000/700mm
Trendelenburg/Anti-tredelenburg 25°/25°
Lateral tilt 15°/15°
Head plate adjustment 45°/90°
Leg  plate  adjustment up:15° down:90°,outward:90°
Back plate adjustment +75°/-20°
kidney bridge 110mm
Tabletop Sliding300mm

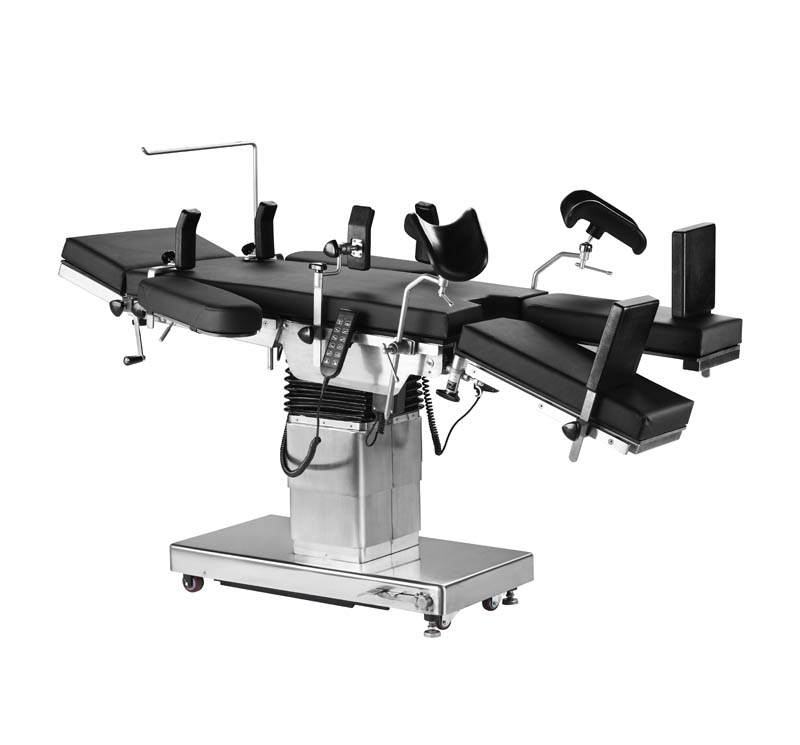

Standard accessories

- Anesthesia screen frame 1 piece

- Shoulder support 1 pair

- Body support 1 piece

- Armrests 1 pair

- Long fixing clamp 1 pair

- Waist support frame 1 piece

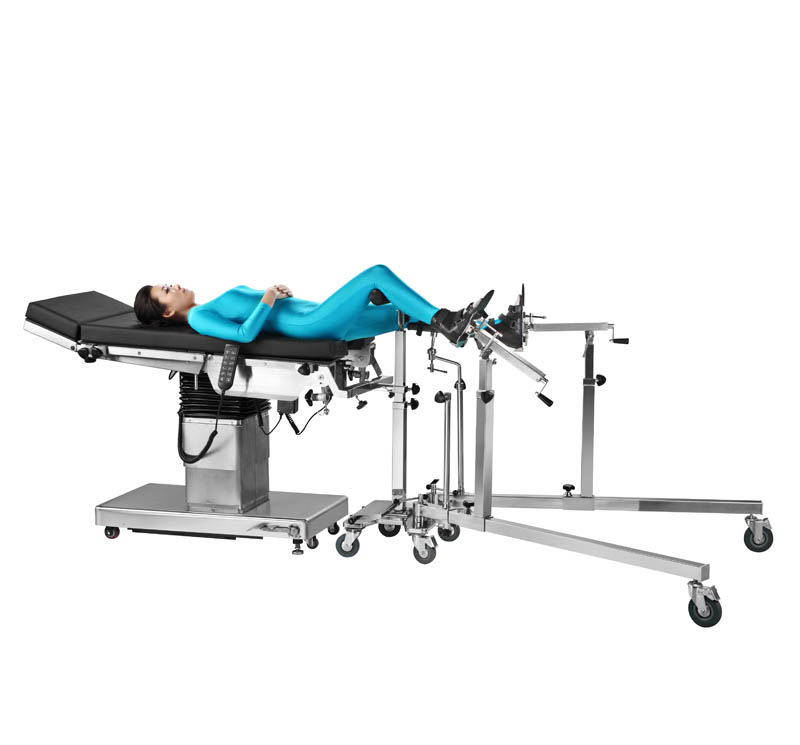

- Leg support holder 1 pair

- Foot support 1 pair

- Hand remote 1 piece

- Fixing clamp 8 pieces
