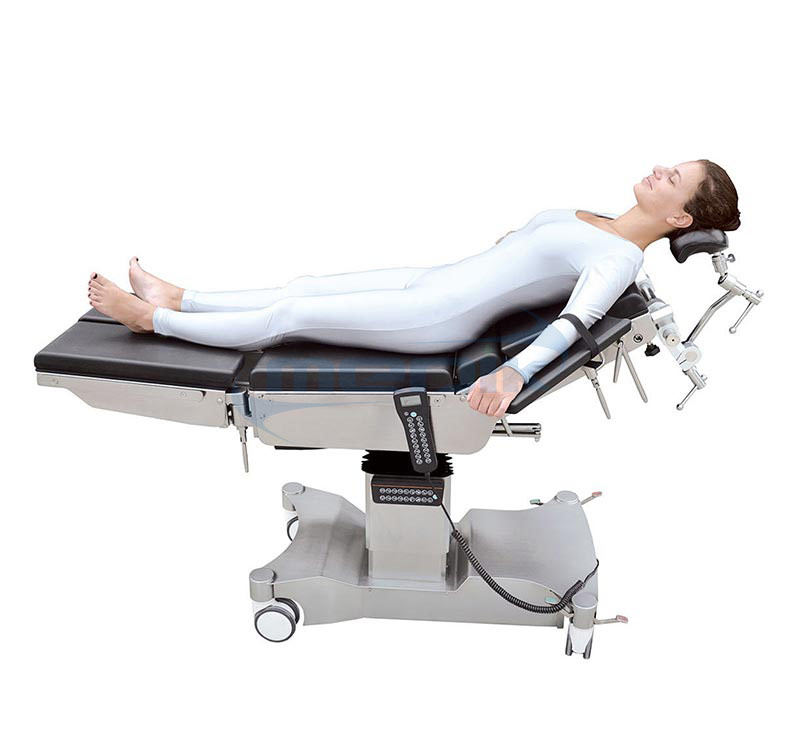

The YA-01E Theatre operating table has a modular table top that can be configured to suit each surgical procedure and patient in the best possible way. The YA-01E 's adjustments are controlled via remote control unit. The operating table is ergonomic, easy to use and maintain.
Main features
- Mechanical system for waist board lifting of electric operating table
- Gas spring for adjusting movements of headrest section
- Polyurethane shaped mattress which is easy to remove and clean
- Four 125mm wheels for moving the OT table, which are with central braking system
- AISI304 stainless steel structure and chassis, which is easy to clean
- Polyurethane shaped mattress which is easy to remove and clean
- With movements of horizontal and longitudinal for C-arm photography examination
- With four 125mm wheels to move the table, which are with twin-wheel central braking systeml
-Eight independent motors for movements of HI-LO, back section, Trendelenburg and Reverse-Trendelenburg, Lateral tilting function, Horizontal and longitudinal movement(For C-arm examination), Leg section(separated left or right leg section, also left and right leg section as one united set), auto-contour of operating table
- Gas spring for headrest movement
- Mechanism system for waist board lifting

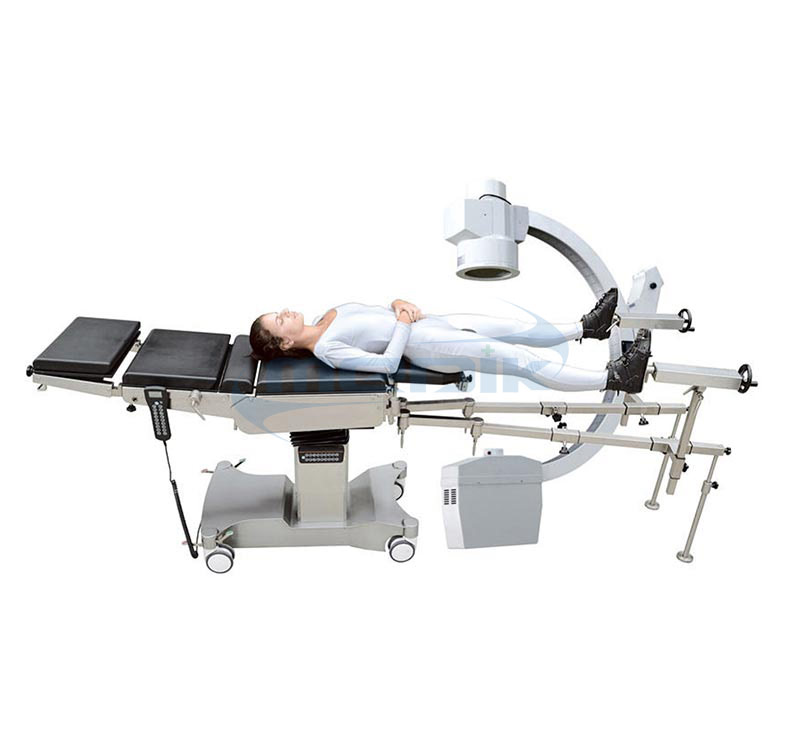

- Leg section can be removable, then connected to orthopedic traction shelf directly
- With lateral control system incoporated to side column, which is with blocking system for movements
Technical parameter
Model | YA-01E |
Table Length | 81" (2057 mm) |
Table Width | 20" (508 mm) (28" with extenders) |
Table Height Range | 26" to 45" (660 to 1143 mm) |
Table Slide Range | 9" (227 mm) to head, 9" to foot (18" total) |
Table Shipping Weight | 560 lbs. (254 kg) |
Trendelenburg / Reverse | 30° / 30° |

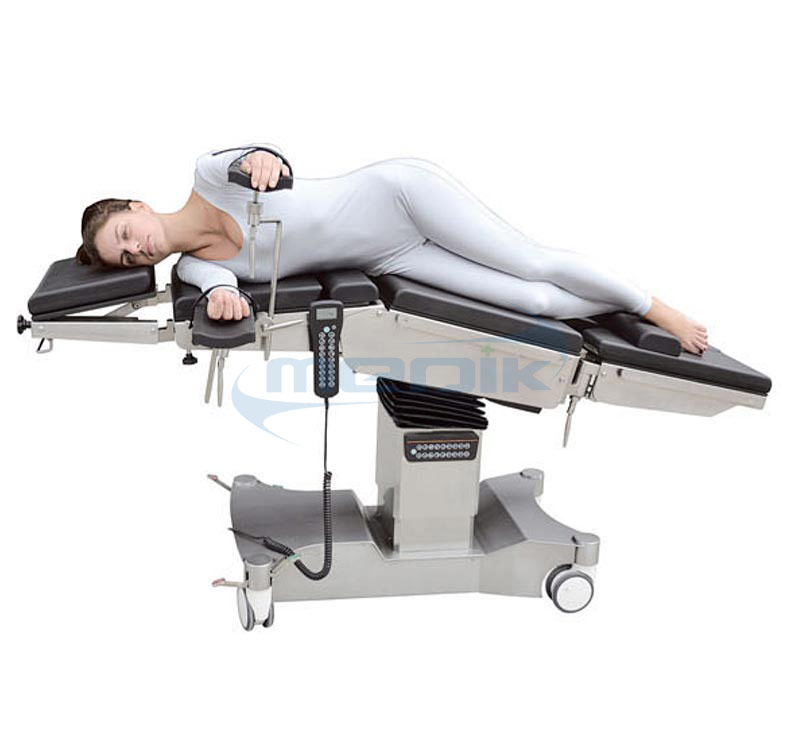

Lateral Tilt (left/right) | 20° / 20° |
Head Section | +90° to -90° |

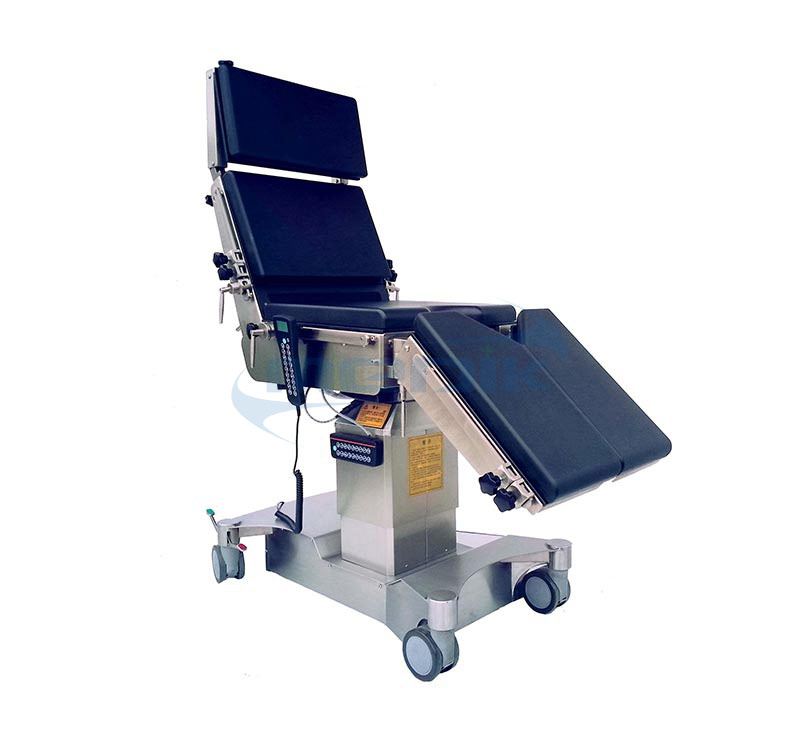

Back Section | +80° to -40° |
Leg Section | 0/-105° (removable) |
Flex/Reflex | 140° / 100° |
Manual Override | Yes |
Perneal Cut-out | Yes |
Kidney Elevator | 4" powered radiolucent |
Standard accessory
- Headrest 1pc
- Armrest 1 pair
- Waist support holder 1 pair
- Shoulder support holder 1 pair
- Leg support holder 1 pair
- Footrest 1 pair
- Anesthesia screen frame 1 pc
- Body strap 1 set
- Handset controller 1 pc
- Lateral controller inner constructed on side of table 1 set
