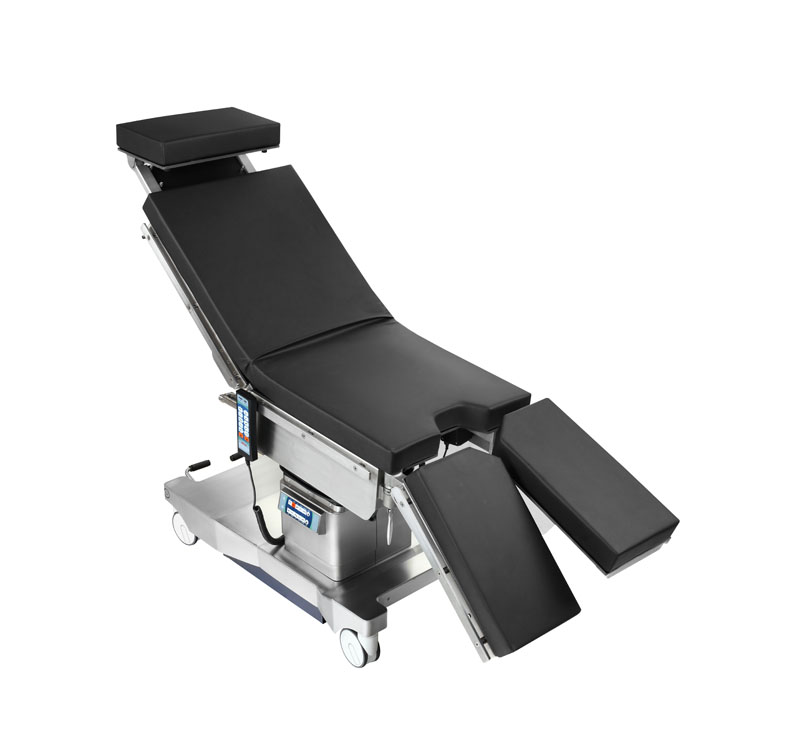

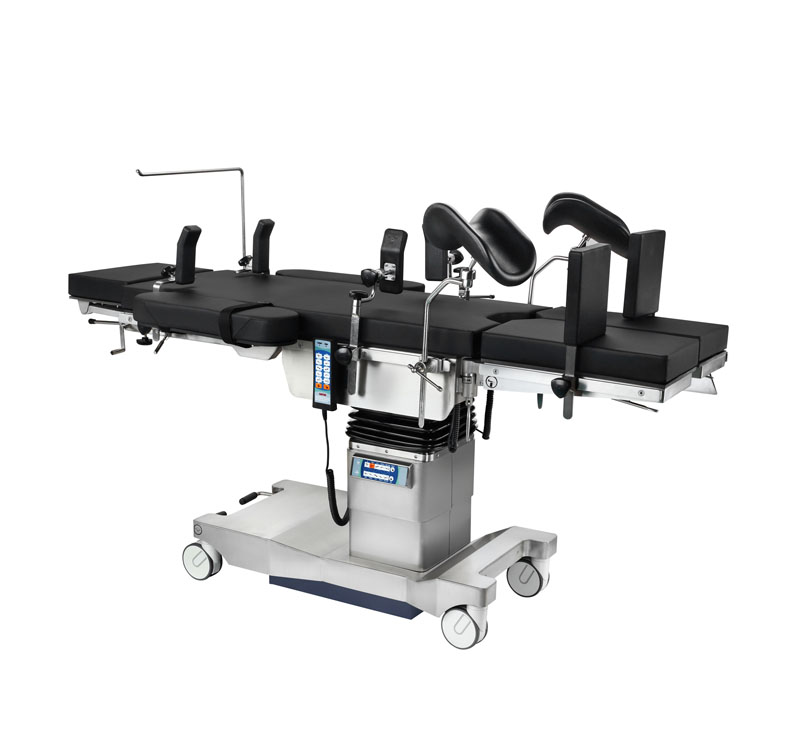

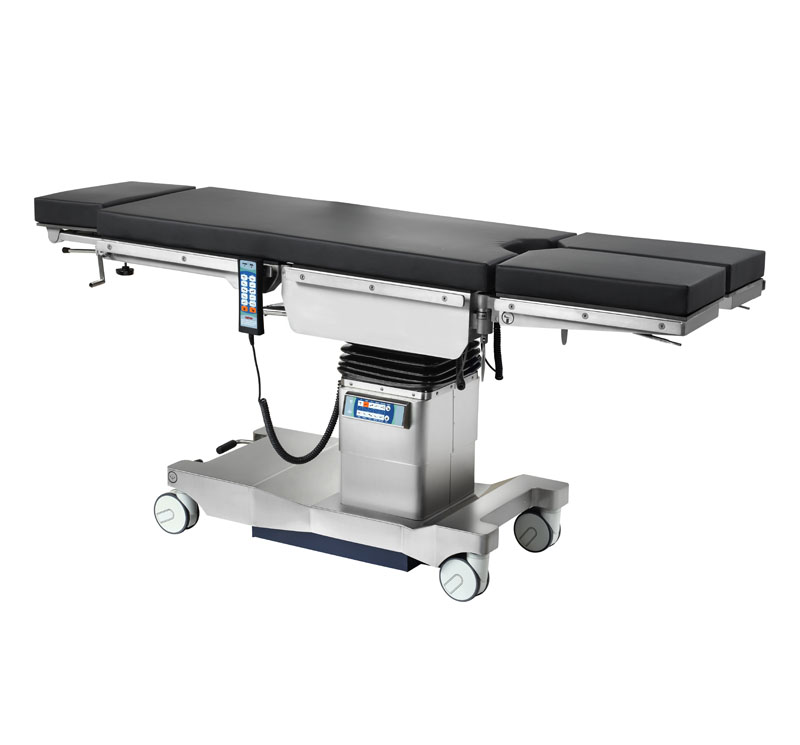

YA-05E Electric Surgical Table C-arm Compatible For OT Room

Share:

Model: YA-05E

Overall Size: 2060*550*700-1000mm

Maximum Safe Load :250kg

Functions: Head plate adjustment ,Back plate adjustment ,kidney bridge,Leg  plate  adjustment ,Trendelenburg/Anti-tredelenburg,Lateral tilt,Tabletop Sliding

Certificate: CE/ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

Watch Video





Engineered for increasingly complex surgical scenes,YA-05E comes with intelligent automatic control system satisfying various demands of general surgeries.

Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C-arm.

Main features

- Longitudinal slide up to 350 mm for free access to C-arm

- Longitudinal shift: the longitudinal shift of up to 350mm enables optimum access with C-arm without needing to reposition the patient or to reverse the positioning of the patient.

- Each selected fluoroscopy point may easily be moved in front of or behind the column and ensures comfortable access to the patient from initiation to surgery.

- Double control system,standard override panel control makes the control safer

- It can easily be moved to any desired position as four castors

- Leg plate: imported gas spring for easy controls

- Two joint head plate

- Memory pad with antistatic, waterproof design

- Built-in kidney bridge

- Battery power for 50-80 operations

- Extreme weight load capacity of 250 kg with highest safety and stability

Technical parameters

ModelYA-05E
Tabletop Length/width2060/550mm
Tabletop Elevation(up/down)1000/700mm
Trendelenburg/Anti-tredelenburg25°/25°
Lateral tilt15°/15°
Head plate adjustment45°/90°
Leg  plate  adjustmentdown:90°,outward:90°
Back plate adjustment+75°/-20°
Sliding350mm
Kidney Bridge    110mm

Standard accessories

- Anesthesia screen frame 1 piece

- Shoulder support 1 pair

- Armrests 1 pair

- Waist support frame 1 piece

- Leg support holder 1 pair

- Foot support 1 pair

- Hand remote 1 piece

- Fixing clamp 8 pieces
