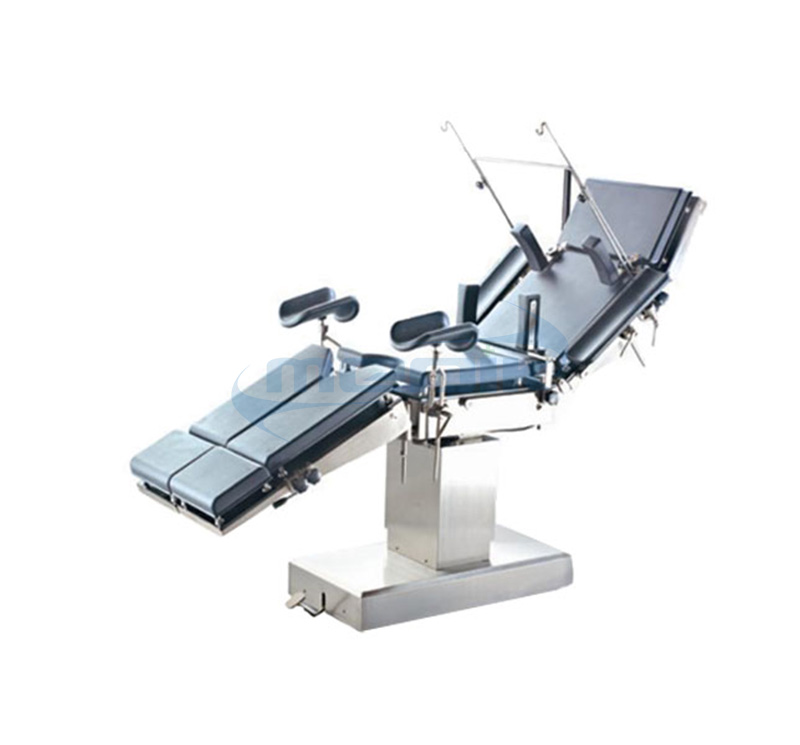

Main features
- Contours to virtually all patient postures with a five-section tabletop.
- Accommodates virtually all patients with generous height ranges.
- Wire controller for different movements and Column control panel with locking function for movements.
- Table top height and backrest adjustment, lateral tilts, Trendelenburg and reverse Trendelenburg tilts are performed thanks to wire hand controller.
- The head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs.
- Divided, two parts leg rest segments are adjusted by means of gear transmission.
- The structure is made of SUS304 mirror stainless steel.
- The table base is controlled by a foot lever.
- The antistatic, seamless mattresses are removable from the segments of the table top and resistant to disinfecting agents.
Technical parameter
| Model | YA-06E |
| Overall size | 2150*500*750-1000mm |
| HI-LOW | 750mm-1000mm |
| Head board fold upward and fold downward | ≥30°/≥90 |
| Back board fold upwardand fold downward | ≥45°/≥15° |
| Leg board fold downward and fold outward | ≥90°/≥90° |
| Trendelenburg and reverse-trendelenburg | ≥25° |
| Left and right tilting angle | ≥15° |
| Loading capacity | 200kgs |
| Waist board lifting | ≥110mm |
| Power | AC220V 50HZ Input power:300VA |
| Packing | 148*76*95cm=1.1M3 G.W.:280kgs |
