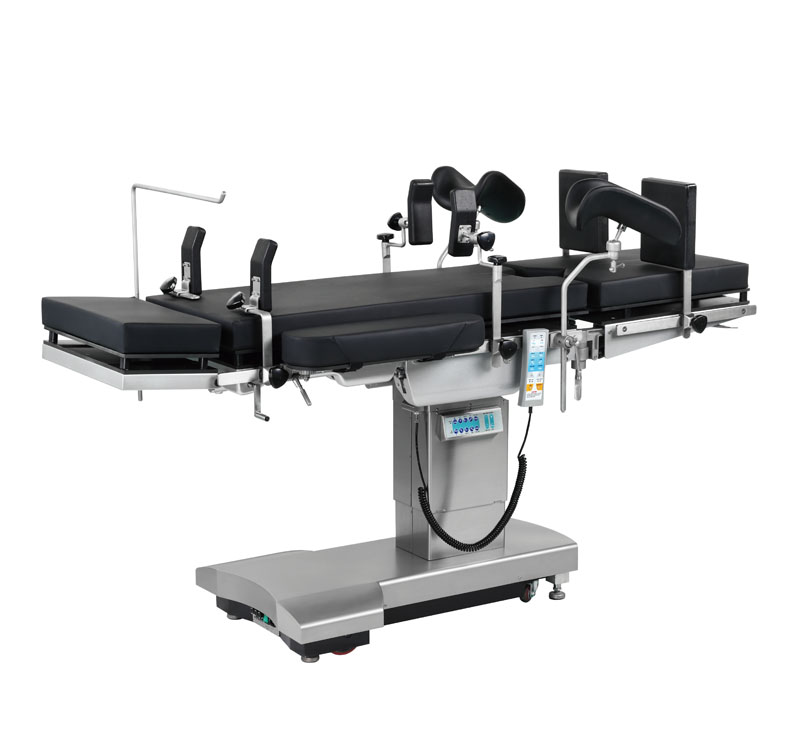

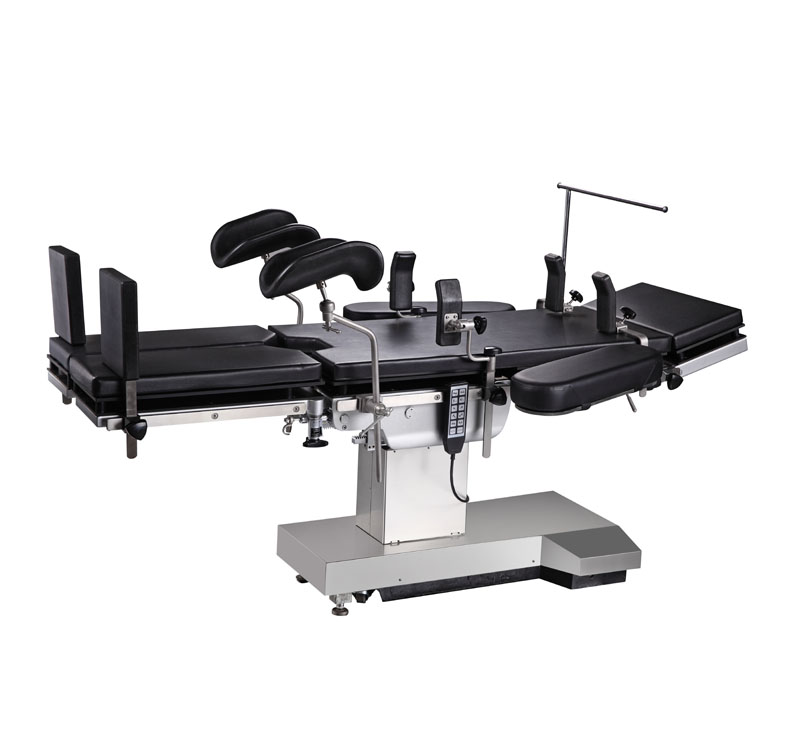

YA-10E Operating Room Table

share

Model: YA-10E

Overall Size:2100*550*700-950mm

Loading capacity 235kg

Certificate: CE/ISO

  • Product Details

Main features

- Suitable for C-arm and X-ray

- Touch remote control

- It adopted micro touch remote control, any movements can be adjusted by it

- Flexible adjustment on head section, back section, and seat section.built-in kidney bridge

- High automation, low noise, high reliability

- Memory pad with antistatic, waterproof design

- Fixing clamp for the accessories

- Key parts imported from abroad, can be regarded as an ideal electric table

Technical parameters

ModelYA-10E
Tabletop Length/width 2100/550mm
Tabletop Elevation(up/down) 950/700mm
Trendelenburg/Anti-tredelenburg 25°/25°
Lateral tilt 20°/20°
Head plate adjustment 55°/90°
Leg  plate  adjustment up:15° down:90°,outward:90°
Backplate adjustment +75°/-20°
kidney bridge 110mm
Tabletop Sliding350mm

Standard accessories

- Anesthesia screen frame 1 piece

- Shoulder support 1 pair

- Body support 1 piece

- Armrests 1 pair

- Long fixing clamp 1 pair

- Waist support frame 1 piece

- Leg support holder 1 pair

- Foot support 1 pair

- Hand remote 1 piece

- Fixing clamp 8 pieces
