YA-PD5-5 Semi Electric Pediatric Safety Bed

Share:

Model: YA-PD5-5

Overall Size: 1300*650*1550mm

Loading capacity: 120kg

Function:  Back, Leg, Hi-Low ,Trendelenburg,Reverse trendelenburg

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts



  • Product Details
  • Downloads

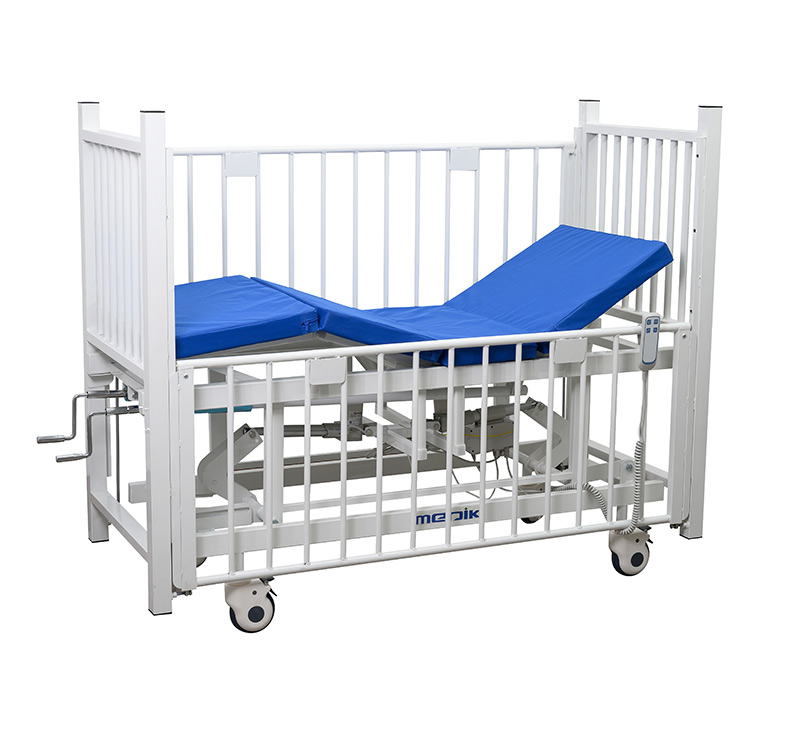

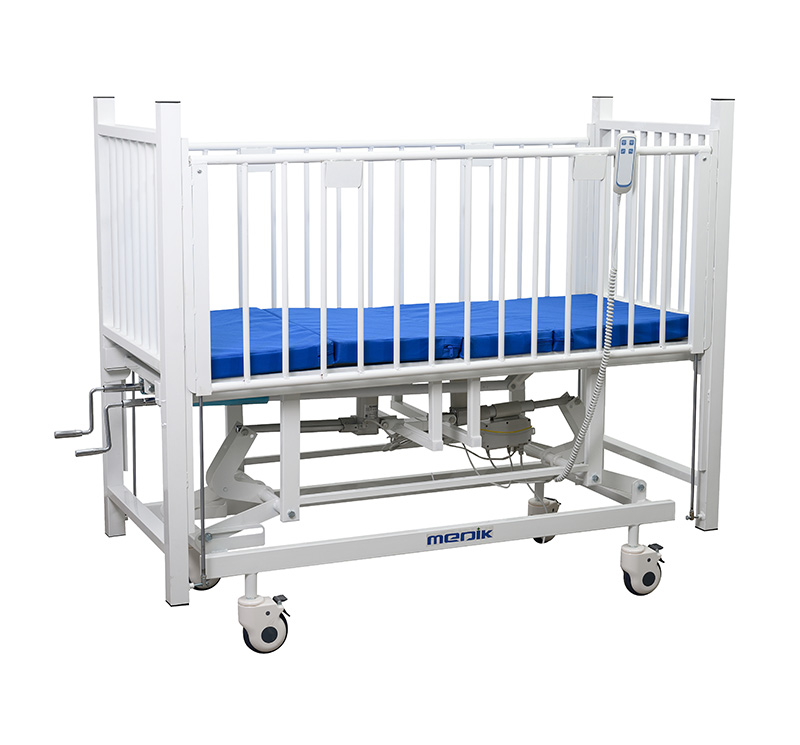

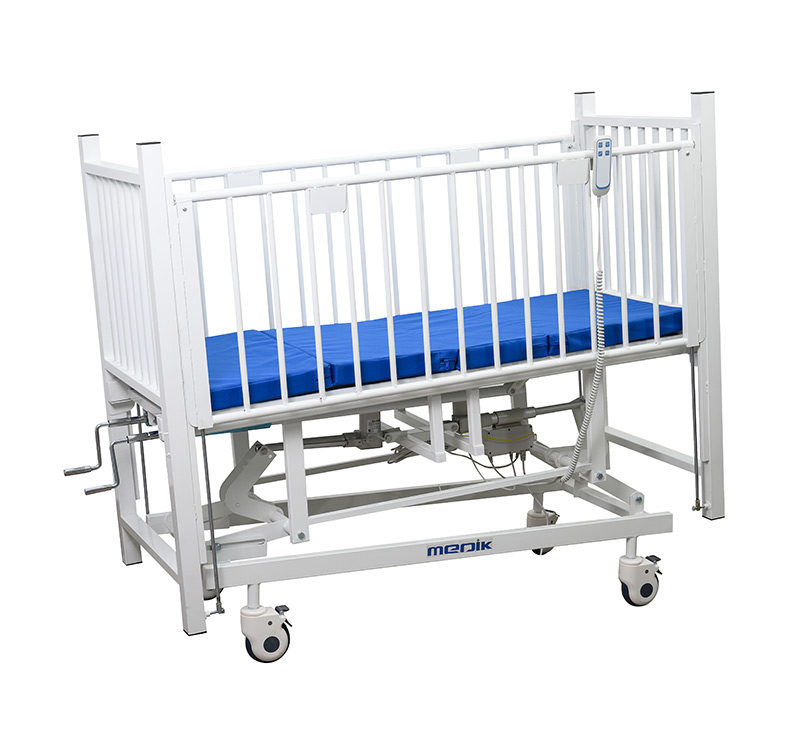

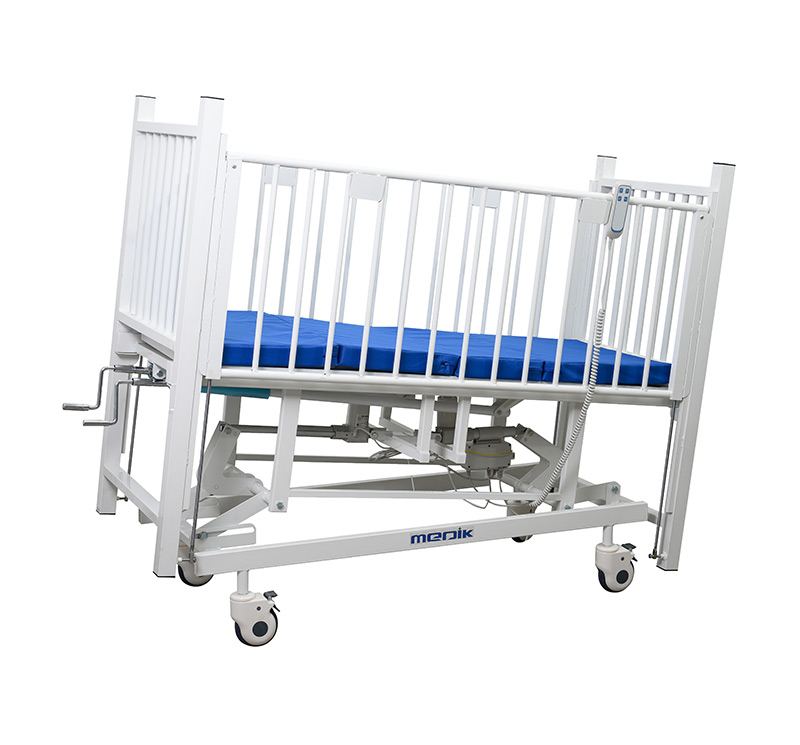

The YA-PD5-5 is a pediatric Bed with electric and manual controls. The extra height fence design provides the children with great safety, up-down sliding rails with double lock prevents children from opening the rail accidentally which is another key safety design.

Technical parameter

ModelYA-PD5-5
Overall size(L*W*H)1300*650*1550mm   (51″ x 25.5″ x 61″)
Bed platform height450-800mm (17.7″ – 31.5″ )
Backrest adjustable0° to 75°
Footrest adjustable0° to 40°
Trendelenburg0° to 12°
Reverse trendelenburg0° to 12°
Loading capacity120kg(265 Ibs)

Features

- Hand remote control

- Head and footboard: Powder spray

- Side rails: Two powder spray side rails with HI-LOW position

- Castors: Four 125mm castors and two with brakes

- With I.V. pole

- Mattress is also available

- The backrest &footrest are adjusted by the manual crank
