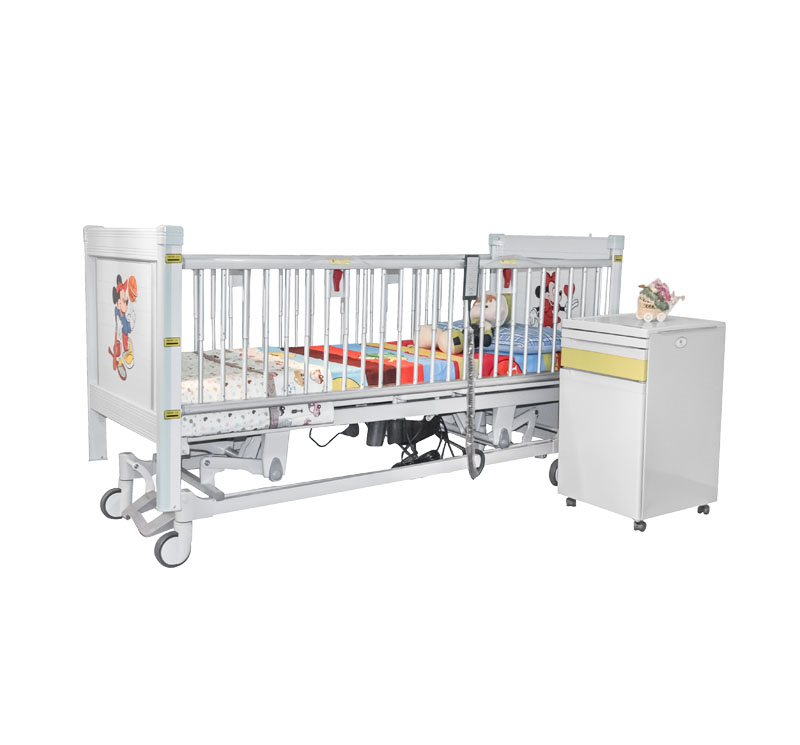

YA-PD5-4 Electric Youth Hospital Bed 5 Function For Pediatirc

Model: YA-PD5-4

Overall Size: 2000*850*480-780mm

Loading capacity: 0-170kg

Lying size:1820*720mm

Function: Backrest, Footrest, high-low, Trendelenburg, Reverse-trend

Certificate: ISO/CE

Warranty: 5-Year on Frame and Welds, and 1-Year on Parts

Option accessories: mattress, IV pole

As a new generation of MEDIK's 5-function electric pediatric bed, YA-PD5-4 combines safety, attractive appearance, functionality and convenient operation. This model is widely accepted by hospitals and children.

Man features

- Full protection with elevated high railing for kids,360fullenclosed protection.

- Two ergonomics handrails make the release of the side rails extremely safe.

- Transparent acrylic head and foot boards allow for good observation of the child's condition.

- Central brake system with 150mm diameter dual-sided castors.

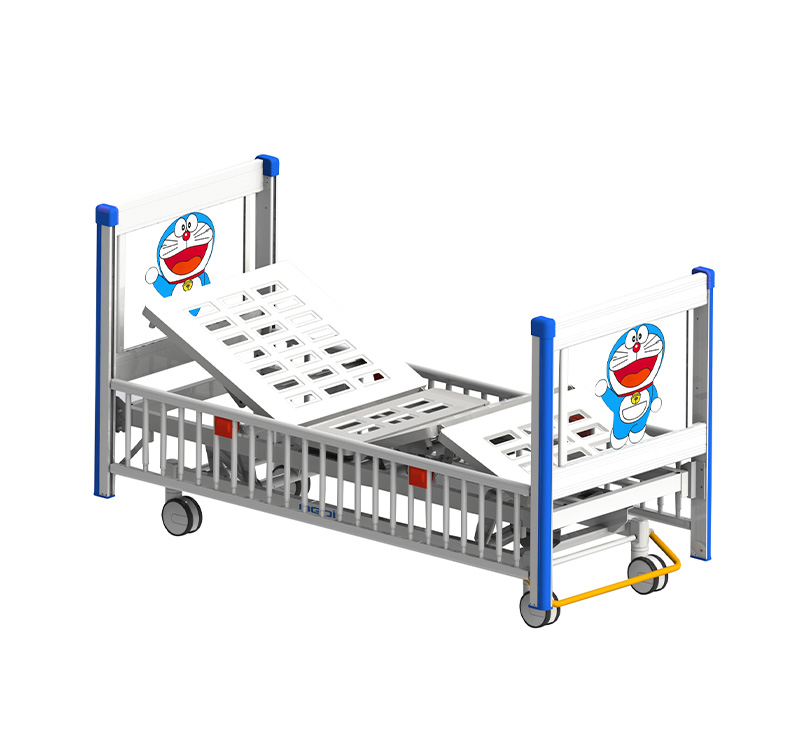

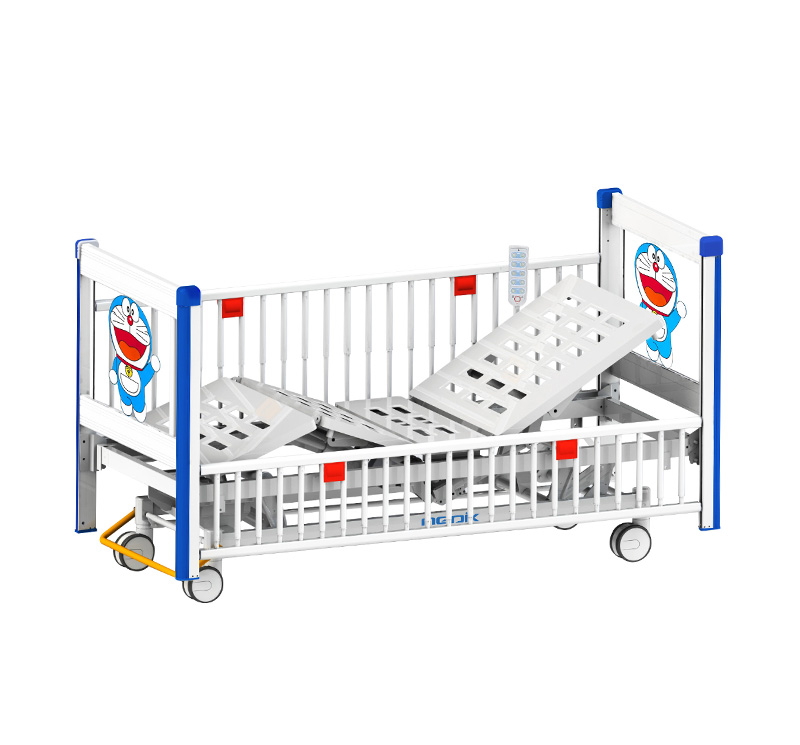

- Fashion cartoon photos optional for head and footboard.

- Telescopic siderail for easy bed exit.

Technical parameter

Model	YA-PD5-4
Overall size	2000850480mm
Lying surface size	1820*720mm
Bed platform height	480~780mm

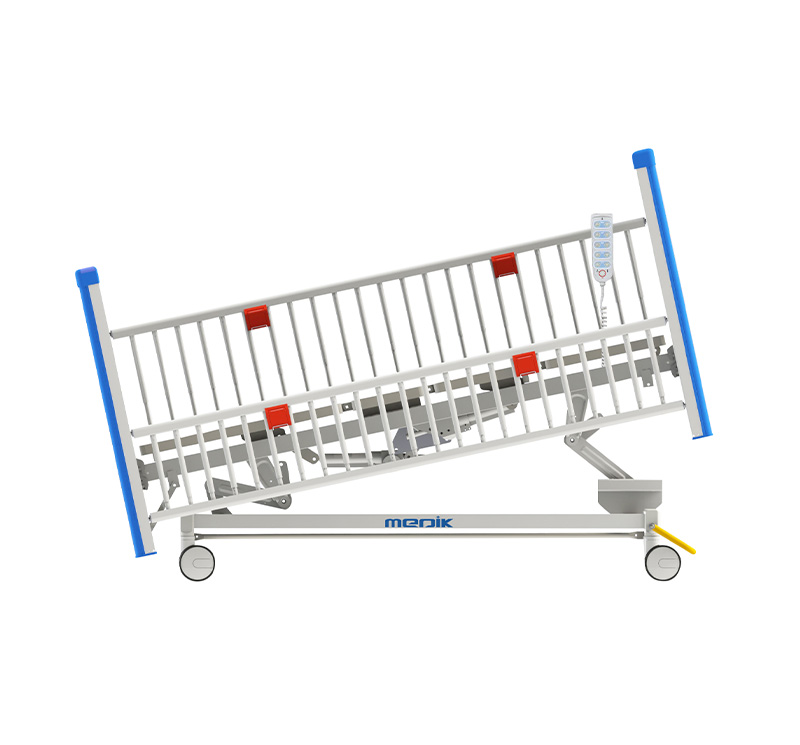

Trendelenburg	0-12°
Reverse Trendelenburg	0-12°
Side rail length	500mm
Head and foot board length	630mm
Back section angle	0~75°
Foot section angle	0~40°
Castors	150mm
Loading capacity	170kgs
