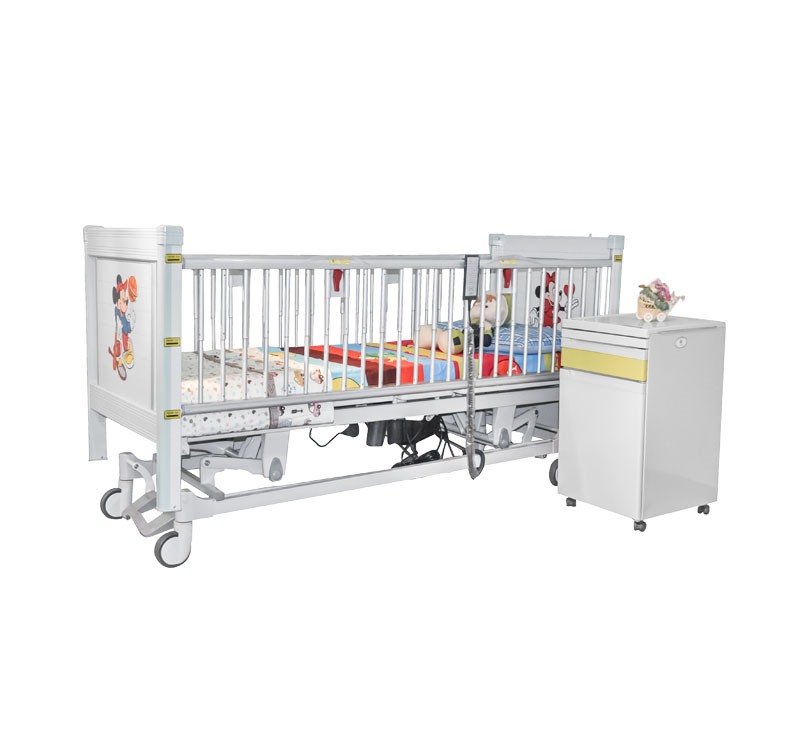

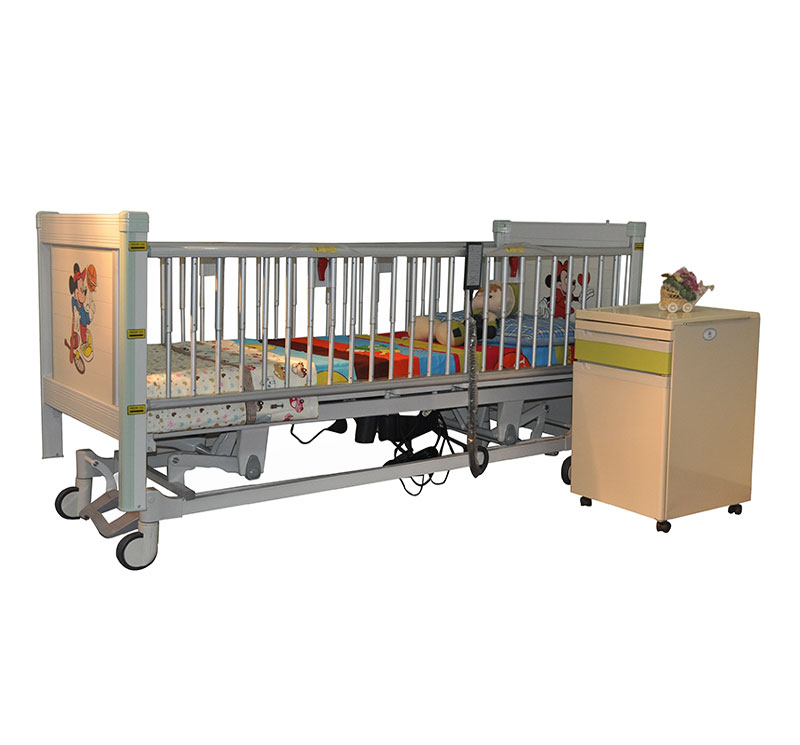

The YA-PD5-3 Electric Pediatric Bed is designed to provide safe and comfortable care for children in hospitals and clinics. It features an electric control system for easy adjustment of height and backrest positions, helping caregivers operate it efficiently. The bed is equipped with double-lock safety side rails to prevent accidental falls and ensure maximum protection. With its sturdy structure and child-friendly design, it is an ideal solution for pediatric patient care.
Main features
- Full-length aluminum protecting rail
- Double lock switch to operate the railing with great safety
- Telescopic aluminum railing with easy access to the child
- Aluminum head/footboard with cartoon design provides a great attraction for the kids
- Central brake system
- Zero gap between the headboard and side rails
Technical parameter
| Model | YA-PD5-3 |
| Overall size | 1840*840*540mm (72.5″ x 33″ x 21″) |
| Lying size | 1720*800mm (67.7″ x 31.5″ ) |
| Height adjustment | 540-790mm (21″ – 31″ ) |
| Height from top of side rails to the bed platform | 690mm ( 27″ ) |
| The gap between adjacent side rail columns | 57mm ( 2.2″ ) |
| Back section adjustment | 0-75° |
| Foot section adjustment | 0-40° |
| Trendelenburg | 0 -12° |
| Reverse trendelenburg | 0 -12° |
| Caster | Dia 125mm ( 5″ ) |
| Safe loading capacity | 160kg（350 Ibs） |
