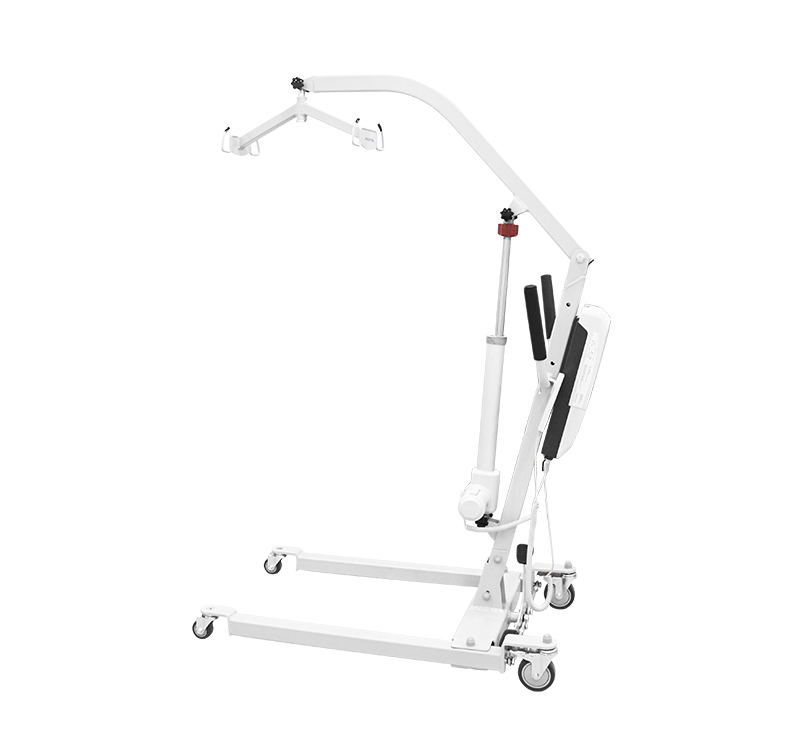

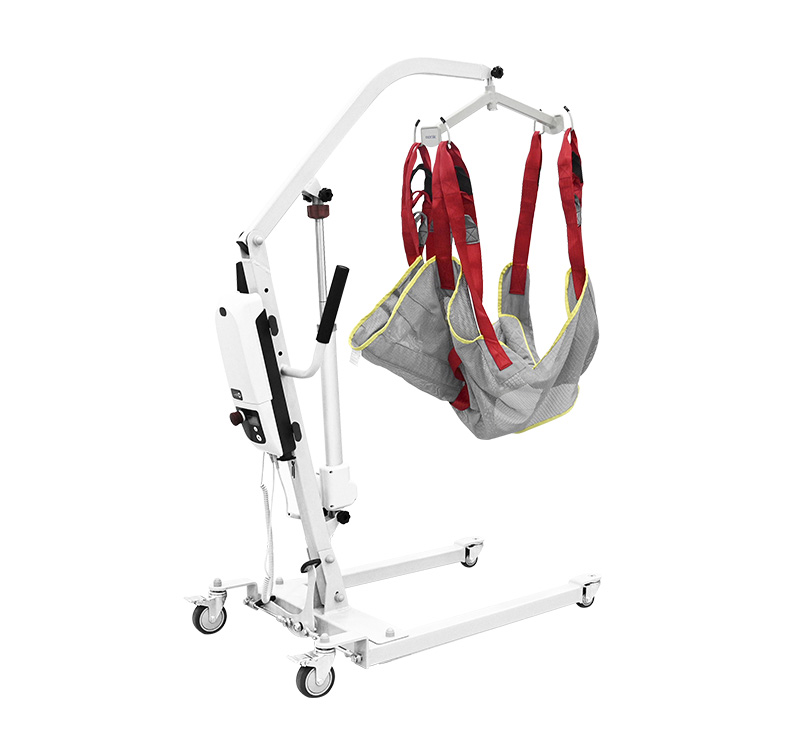

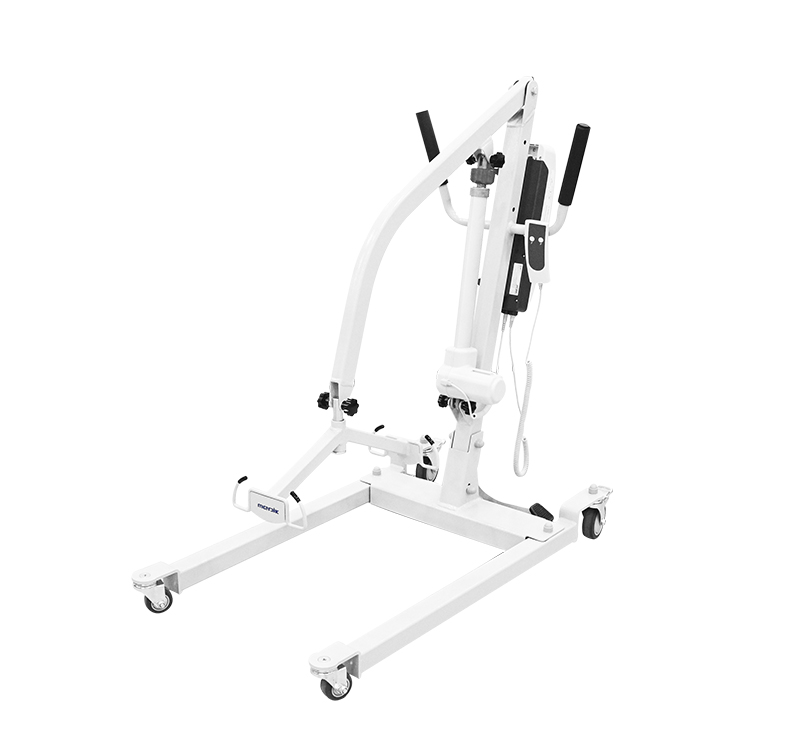

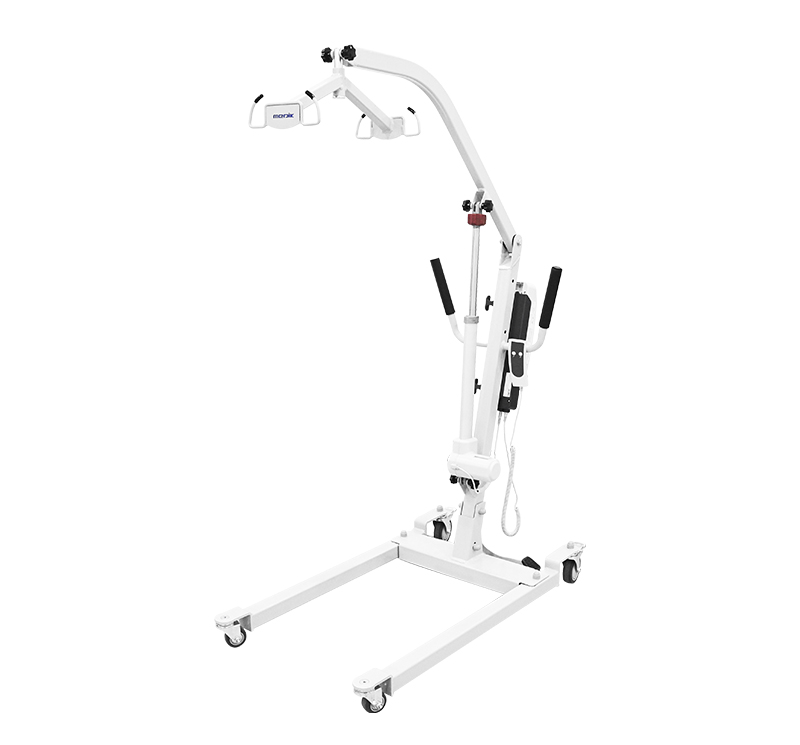

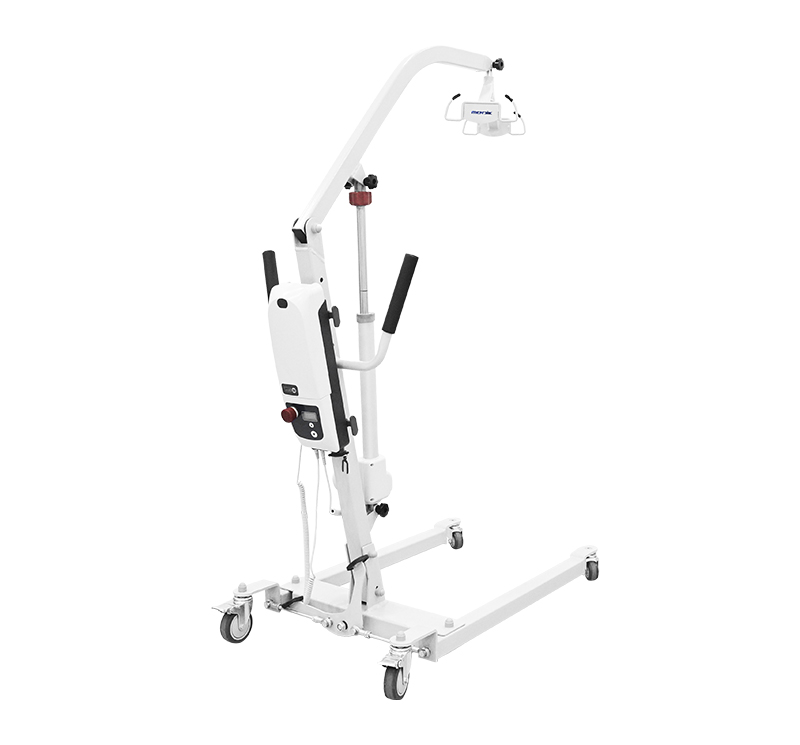

This MK-AT02 electric patient lift efficiently and safely transfers patients, preventing injury to patients and staff. Designed with hospital and nursing home facilities in mind, this lift is able to be raised and lowered from the ground and fits underneath most beds in the lowest position, making it an ideal solution for transferring patients in small rooms and low beds.
Main features
● 4 hooks spreader Bar with multiple strap options for safer patient handling.
● Liftable from the ground.
● Ergonomically designed foot pedal with easily adjustable and lockable base for enhanced safety.
● Manual emergency lowering function for safe handling in case of power outage.
● Dual rear locking castors.
● Advanced electronics with auxiliary up and down lift controls.
● Load capacity 230kg.
Technical parameter
Model | MK-AT02 |
Base Legs Length | 1050mm |
Base Closed Internal Width | 600mm |
Base Closed External Width | 950mm |
Base Height | 105mm |
Lifting range | 0-1800mm |
Lifting speed | 5-8mm/s |
Front wheel diameter | 3” |
Rear wheel diameter | 4” |
Weight Capacity | 230kg |
