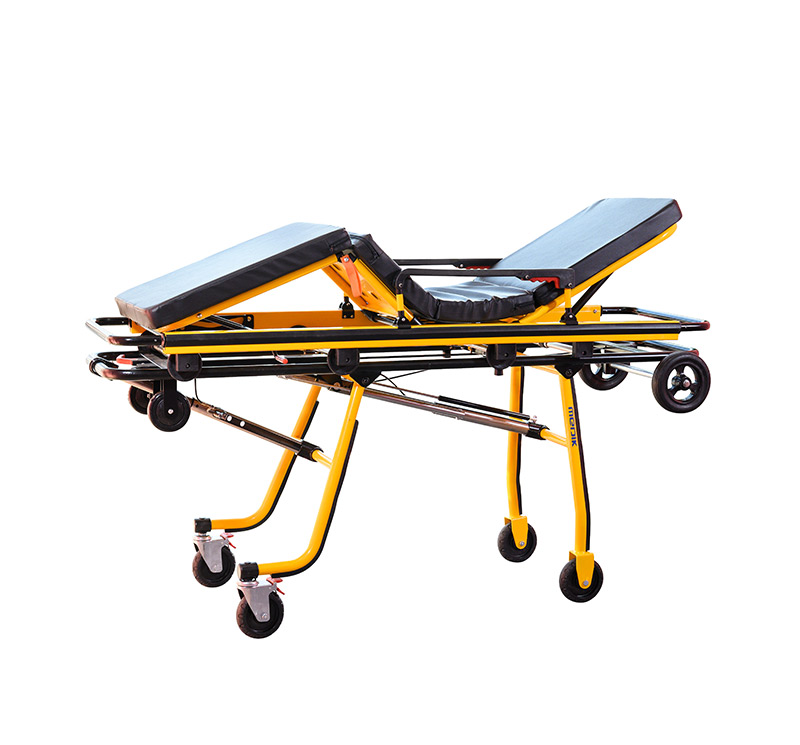

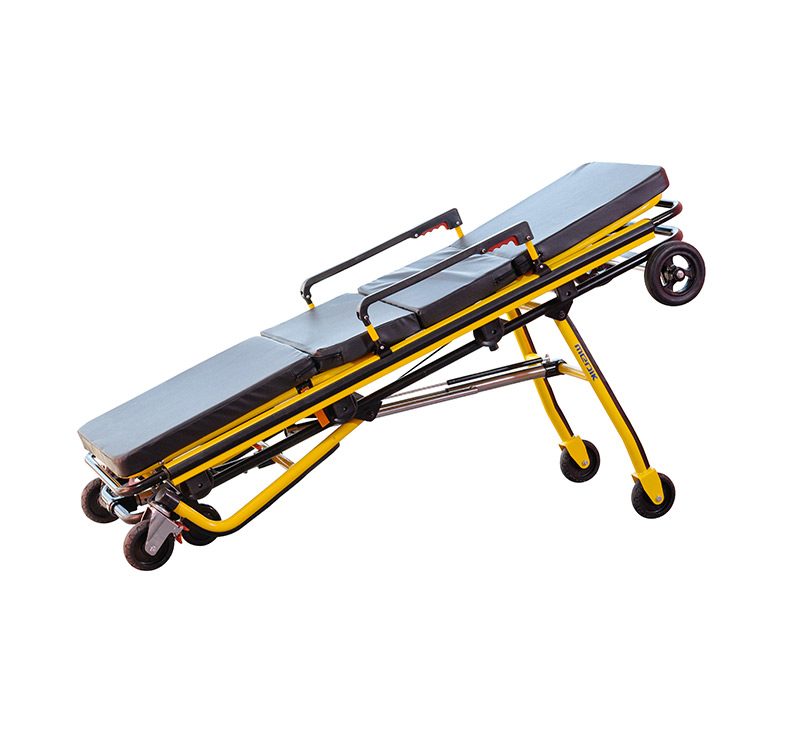

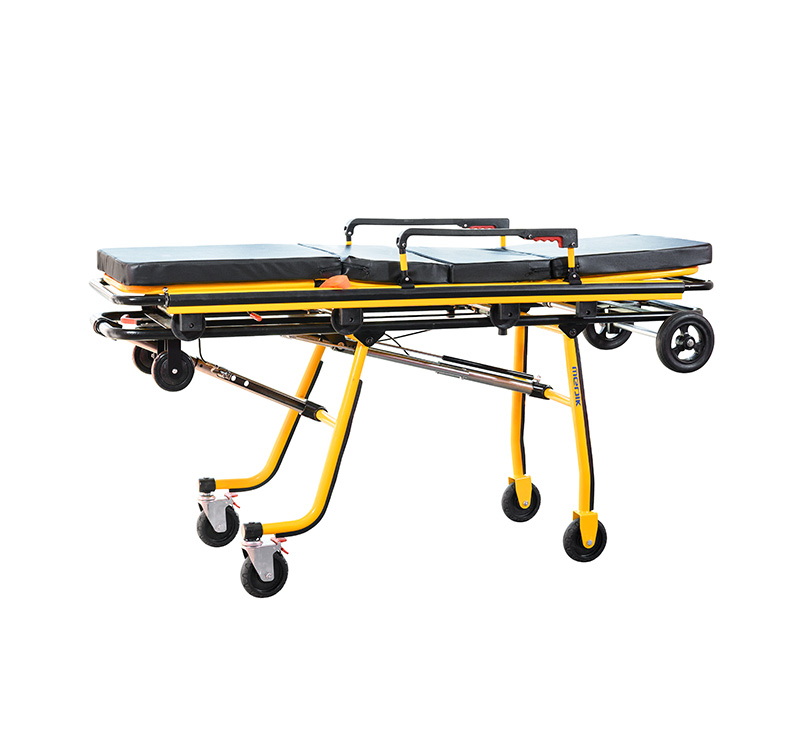

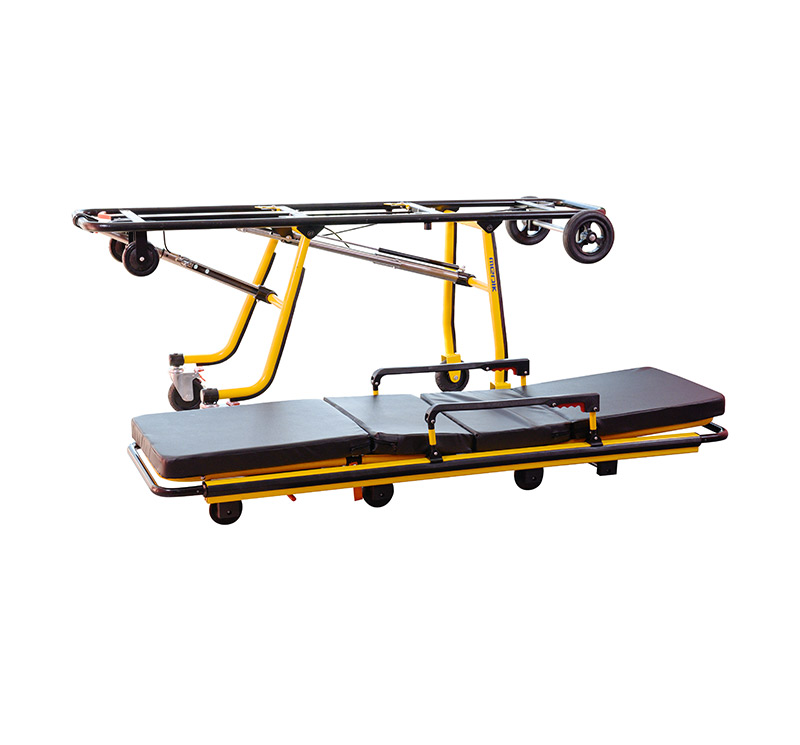

The YA-AC03 is an ambulance stretcher operated totally by one person for upload and download with patient from and to ambulance. The removable stretcher surface and Steer-Lock System offer excellent manoeuverability. The unique structure offers great stability and attractive appearance, it can be used flexibly in various places,such as , the field, gymnasium, emergency room, etc.
Main features
- Made of aluminum alloy and stainless steel materials
- Lightweight, easy to clean and sterilize
- The surface is made of a foamed cushion, a vinyl protective cover
- Backrest is adjustable, which makes the wounded feel comfortable
- The handles on both sides control the mechanical folding legs
- One person can operate and send the patient to the ambulance vehicle
- Stretcher comes standard with safety locking wheels
- Oversized wheels with sealed castors and wheel bearings
- Equip I.V. pole
Technical parameter
| Model | YA-AC03 |
| Material | High-strength aluminum alloy |
| Size(Low position) | 1950*570*280mm (76.7″ x 22.4″ x 11″) |
| Size(High position) | 1950*570*910mm (76.7″ x 22.4″ x 35.8″) |
| Backrest adjustable | 0-65° |
| Footrest adjustable | 0-15° |
| Load capacity | 200kg（440 Ibs） |
| Castors | Dia 150mm ( 6″) |
