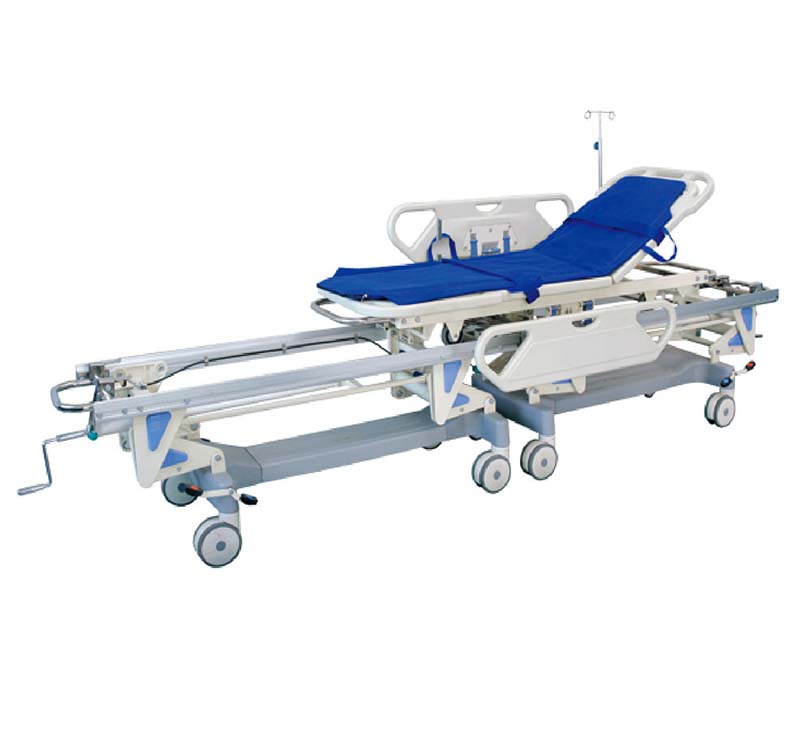

YA-J2A Operation Room Connecting Trolley

share

Model: YA-J2A

Overall Size: 365*64*64-97cm

Safe Working Load: 135kg

Functions: Back section adjustable, High-low

Certificate: CE/ISO

  • Product Details

Key features

- Used to connect the patient from outside OR room to inside the OR room

- Trolley platform can be slide for transfer patient from trolley to bed

- Electrostatic spray and aluminum alloy frame

- Aluminum guardrail and surface

- 6 inch central controlled caster

Standard Accessories

- Side rails: 2pcs, ABS, detachable

- 2 trolleys join together, lift&down separately

- Back section is controlled by gas spring

- Railway for connecting 2 stretchers is also made of aluminum alloy, durable

- Castors:125mm castors with central locking system

- With 5th retractable wheel in the middle for direction

- 1 crank,1 I.V. pole and 1 mattress for each trolley

Specification

ModelYA-J2A
Size365*64*64-97cm
Loading Capacity180kg
Safe Weight Load135kg
High-Low:64-97cm by crank
Back section adjustable0° to 75° by gas spring
