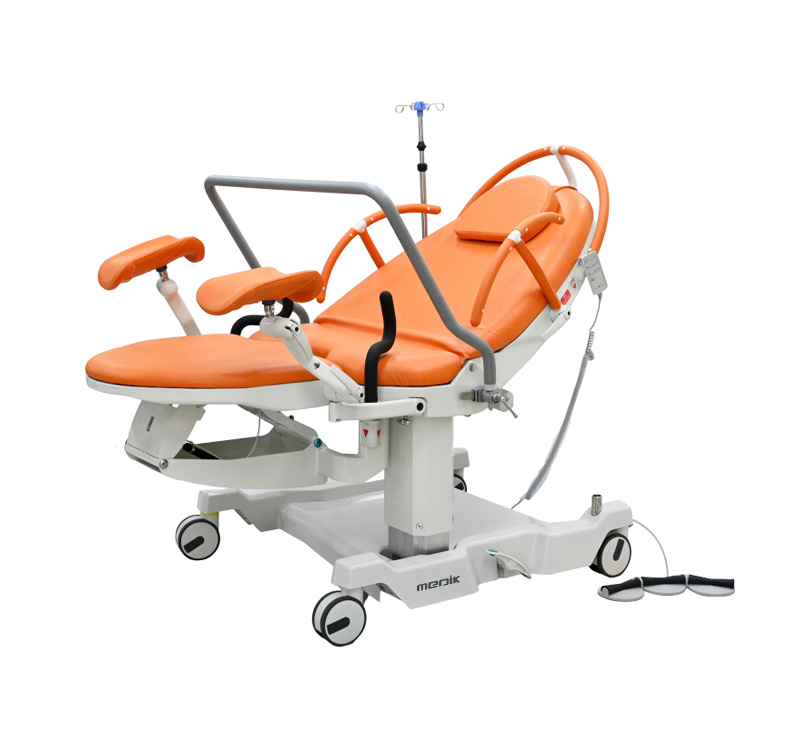

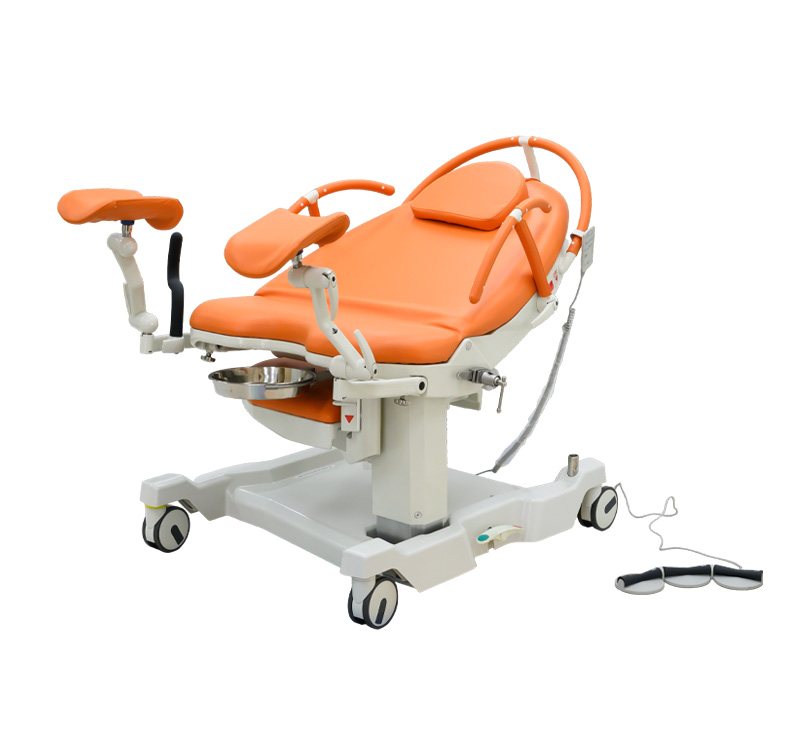

The MC-D09 electric delivery bed is designed to support women throughout labor and delivery, combining comfortable positioning with easy operation for healthcare professionals. The adjustable back, seat and foot sections allow multiple birthing positions to meet different clinical needs.
With smooth electric adjustment, a low starting height and an easy-to-clean design, the bed provides a practical and comfortable solution for modern maternity wards, delivery rooms and obstetric departments.
Key Features
1. Flexible Birthing Positions
Adjustable back, seat and foot sections allow the bed to accommodate different labor and delivery positions, helping mothers find a comfortable position throughout the birthing process.
2. Electric Height Adjustment
The electrically adjustable bed height makes it easier for healthcare professionals to provide care and perform delivery procedures while allowing the bed to be positioned according to the patient's needs.
3. Adjustable Foot Section
The foot section can be adjusted in angle and height to provide greater flexibility during labor and delivery. Its practical design allows quick positioning without complicated operation.
4. Comfortable Lumbar Support
The adjustable lumbar area provides additional support for the lower back and can help improve comfort during prolonged periods of labor.
5. Easy-to-Use Controls
Simple controls allow healthcare professionals to adjust the main bed functions efficiently. The design minimizes unnecessary adjustment steps and supports smooth operation during busy clinical procedures.
6. CPR & Trendelenburg Functions
The bed supports CPR positioning and Trendelenburg adjustment, providing additional flexibility for emergency and clinical situations.
7. Easy-to-Clean Design
The compact bed structure and removable, seamless upholstery help simplify routine cleaning and disinfection. Smooth surfaces and accessible areas reduce the difficulty of cleaning between patients.
8. Safe and Stable Construction
The robust frame and secure leg-support system provide stability during different birthing positions. Rounded edges and a carefully designed structure help reduce potential safety hazards for both patients and healthcare staff.
9. Patient-Centered Design
The wide lying surface provides a reassuring and comfortable environment for women in labor while allowing healthcare professionals and birth partners to remain close to the patient.
Specification
| Model | MC-D09 |
| Total Length of Supporting Area (Including Leg Support) | 2100 ± 30 mm |
| Minimum Length in Default Setting (Without Leg Support) | 1320 ± 30 mm |
| Total Length of Upholstery | 2000 ± 30 mm |
| Overall Width | 1020 ± 30 mm |
| Maximum Width of Upholstery | 950 ± 30 mm |
| Minimum Height (Floor to Upholstery Top) | 650 ± 30 mm |
| Maximum Height (Floor to Upholstery Top) | 950 ± 30 mm |
| Height Adjustment | 300 ± 30 mm |
| Backrest Angle | -10° / +70° (±5°) |
| Pelvic Tilt Angle | 0° / +15° (±3°) |
| Leg Plate Adjustment Angle | 0°–25° |
| Leg Plate Elevation Range | 225 mm |
| Horizontal Adjustment of Leg Plate | 0° / 60° / 90° |
| Wheel Diameter | 150 mm |
| Maximum Patient Load | 210 kg |
| Permitted Backrest Load | 135 kg |
| Permitted Leg Support Load | 135 kg |
| Permitted Footrest Load | 50 kg |
| Permitted Side Support Load | 50 kg |
