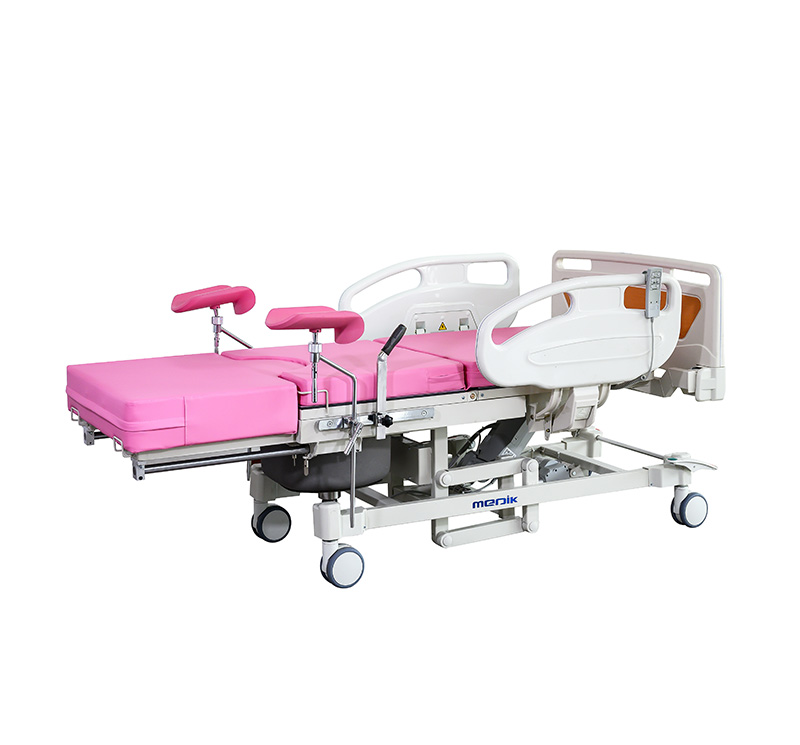

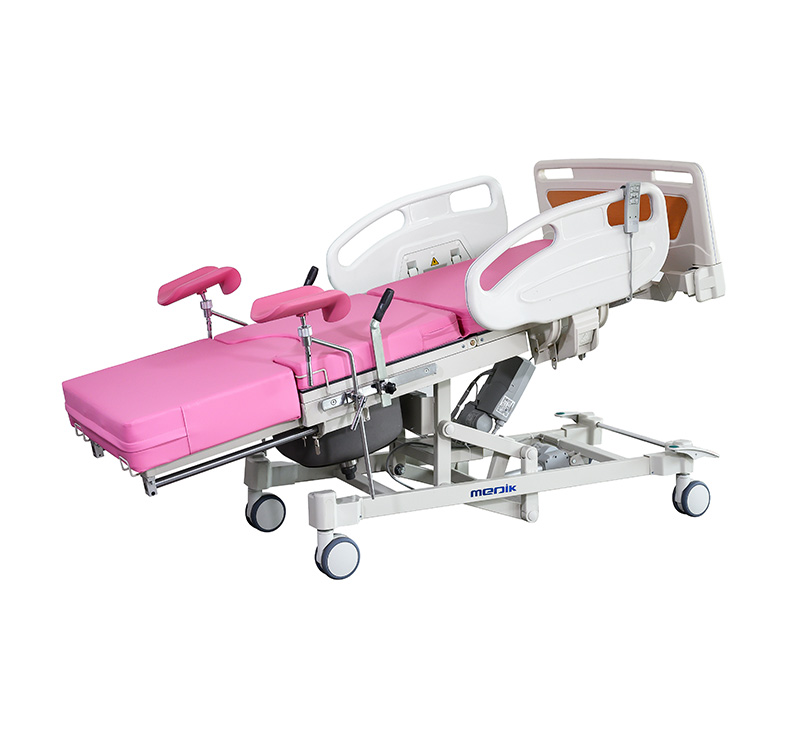

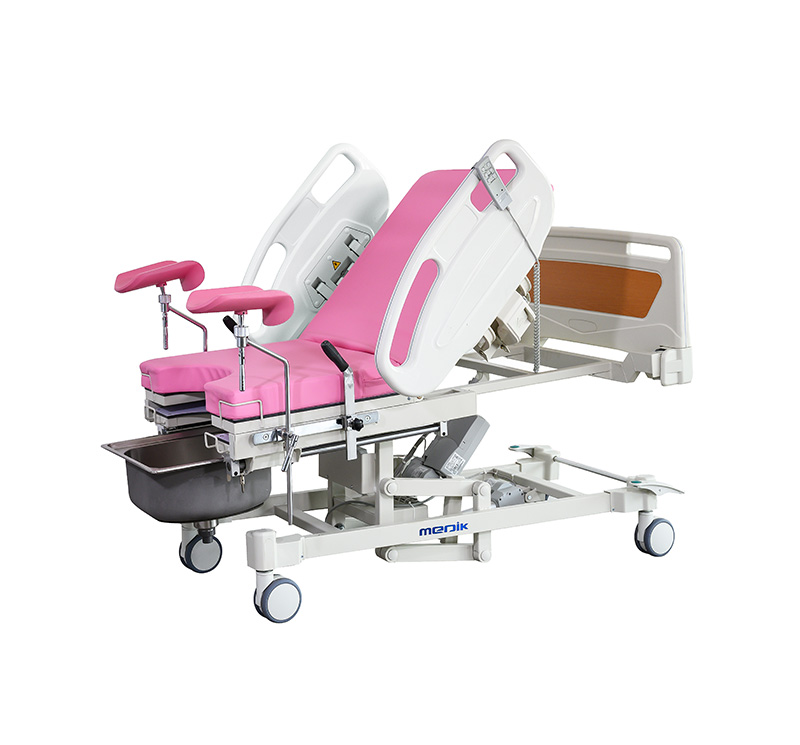

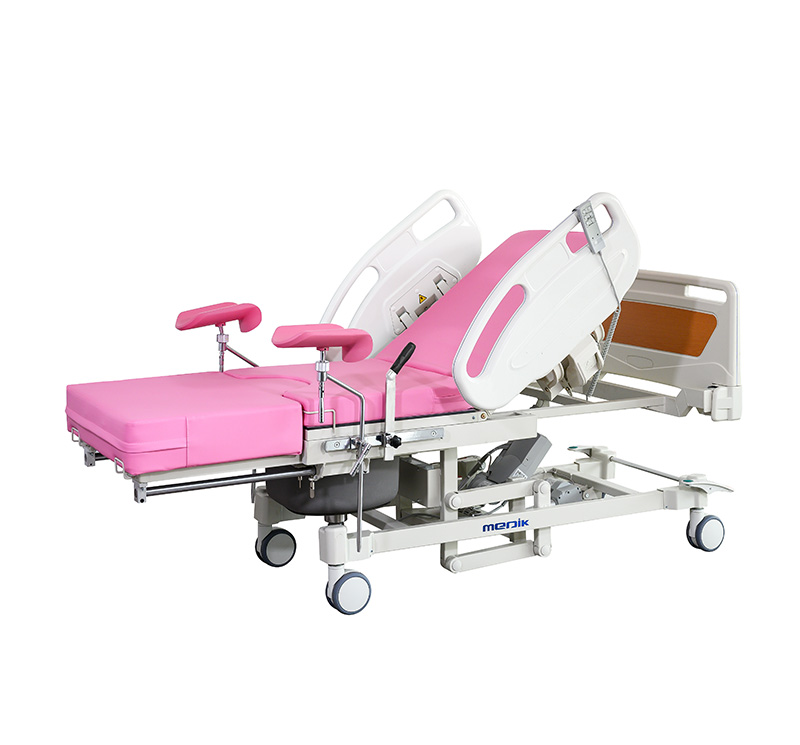

MC-D07 is a fully motorized and versatile LDR bed that enables the obstetrician as well as the patient through all stages of parturition, including labor, delivery & recovery stages with utmost comfort and ease.It can be easily adjusted to the delivery position. Also, electric controlled height and tilt adjustment greatly enhance the work efficiency of the nurses.
Main features
* Epoxy coated steel bed frame , with ABS engineering plastic side and head board
* The table surface is a waterproof PVC cushion with foam stuffed.
* Equipped with switch
* Elescopic working table , to be controlled by linear bearing, telescopic length : 550mm
* Backrest can be adjusted electrically from 0 to 70°
* Height adjustable: 650mm-960mm
* Reverse-Trendelenburg from 0 to 12°
*Trendelenburg 0 to 12°
* The mattress adopts a high-density memory sponge.
* With four 125mm castors with the twin-wheel central braking system
Technical parameter
| Model | MC-D07 |
| Overall size | 1950*950*650mm (77″ x 37.5″ x 25.5″) |
| Height adjustable | 650-960mm (25.5″ – 38″ ) |
| Backrest adjustable | 0-70° |
| Reverse trendelenburg | 12° |
| Trendelenburg | 12° |
| Loading capacity | 230kg（505 Ibs） |
