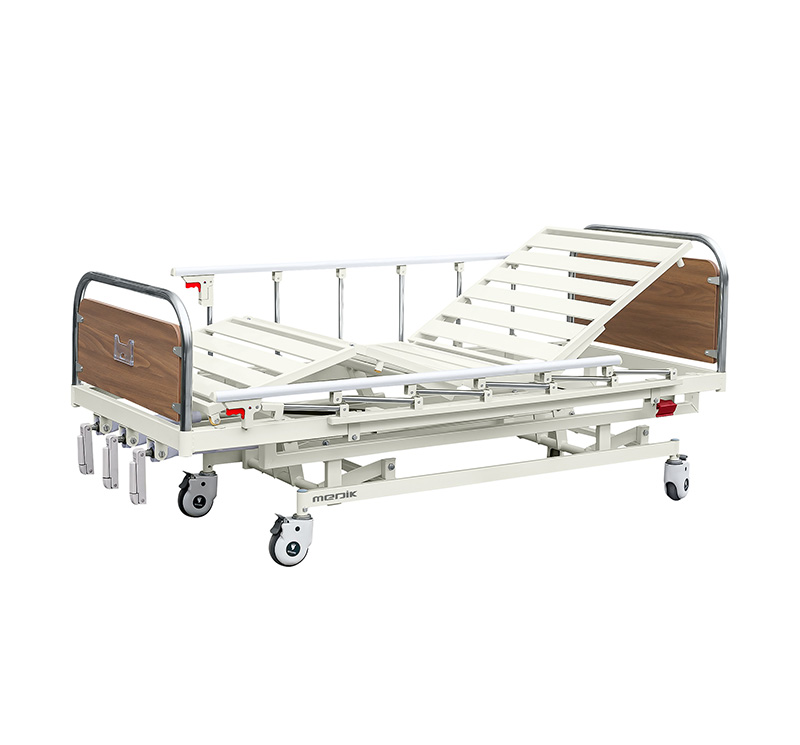

YA-M3-1 Manual Adjustable 3 Crank Hospital Type Bed

Share:

Model: YA-M3-1

Overall Size: 2165*985*550mm

Safe Working Load: 185kg

3 Functions: Backrest, Footrest adjustable, High-Low

Color options:  Green, Blue, Wood

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details
  • Downloads

The 3-Crank Hospital Bed is our standard manual bed for patient use, it is operated by the crank to get various positions. Users are able to adjust the back raise, leg raise, and height raise for better comfort.

Specification

- Bed Frame electrophoresis and powder coating

- Bed platform MS perforated platform with ventilation hole, molded

- Handrails collapsible aluminum railing with 6 bars

- Head and Footboard detachable head/footboard with easy lock

- 3 pieces foldable crank

- Caster diameter of 125mm with diagonal locking

- Bumper castors on 4 corners of the bed


Technical parameters

ModelYA-M3-1
Overall  Size(L*W*H)2150*980*500mm (84.6″ x 38.5″ x 19.6″)
Lying surface1900*830mm (75″ 32.5″ )
Overall Height500-750mm (19.6″ – 29.5″ )
Backrest adjustable0° to 75°
Footrest adjustable0° to 40°
Safe working load185kg(405 Ibs)

Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 2 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces
