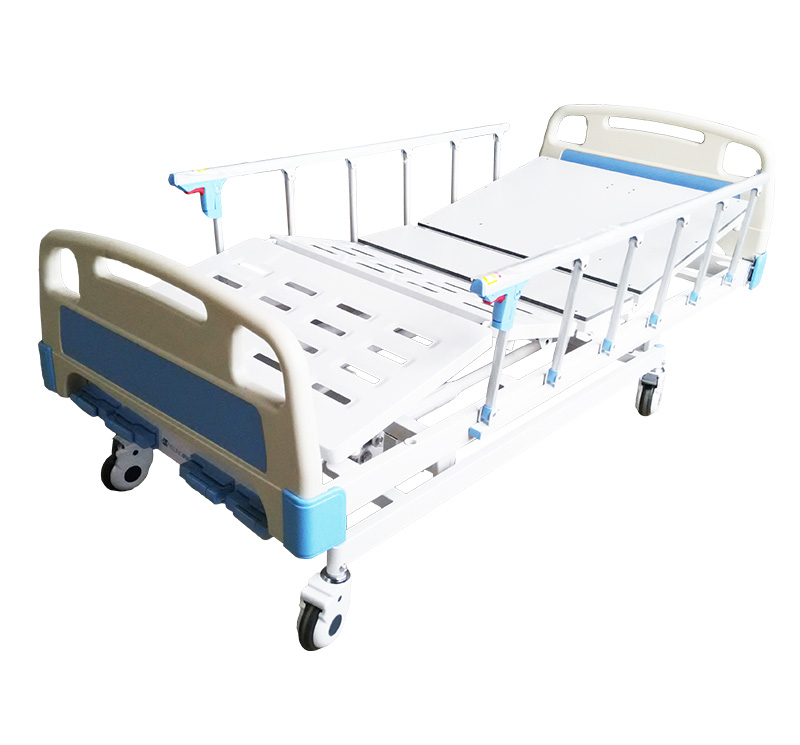

YA-M5-2 Four Crank Medical Hospital Bed

Share:

Model: YA-M5-2

Overall Size: 2160*960 *500-750mm

Safe Working Load: 195kg

Functions: Backrest, Footrest adjustable, High-low, Trendelenburg, Revere-Trendelenburg

Color options:  Green, Blue, Wood

After-sale Service: Online technical support

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

Main features

- Electrophoresis and powder coating

- X-ray translucent dorsal section for radioscopy

- Wholly molded cold steel knee & foot section

- Removable, ABS material, detachable

- Two Aluminum alloy side rails, collapsible

- Four 125mm castors and two with brakes

- Four cranks for the bed movements

- I.V.pole

Accessories

- IV stand

- Urine bag hook

Technical parameter

ModelYA-M5-2
Overall size(L*W*H)2160*960 *500mm (85″ x 37.7″ x 19.6″)
Lying size1900*840 mm (75″ 33″ )
Back section up/down0-75°
Foot section up/down0-40°
Height adjustment500-750mm (19.6″ – 29.5″ )
Trendelenburg0-10°
Revere-Trendelenburg0-10°
Safe loading capacity195kg(430 Ibs)
