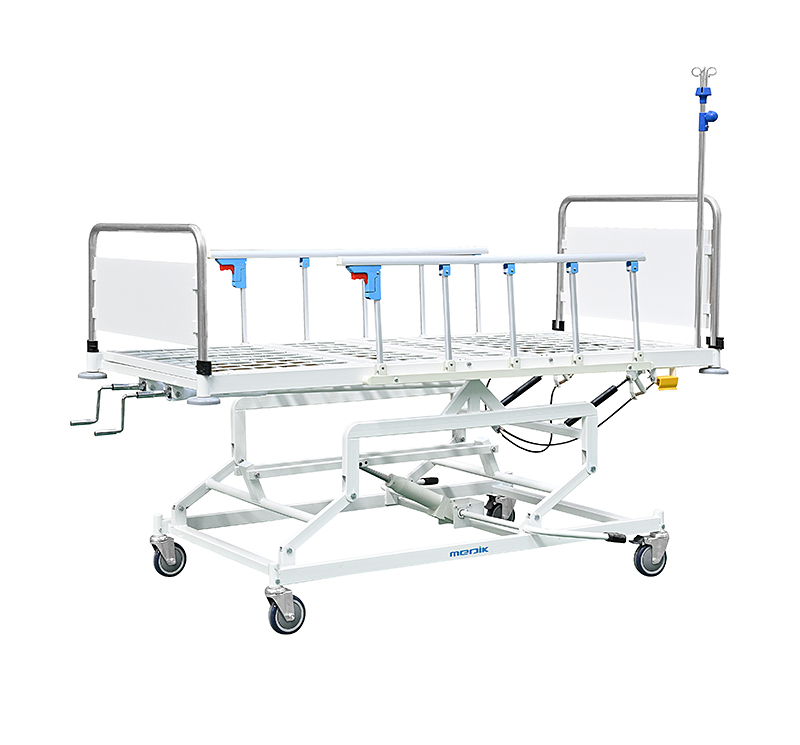

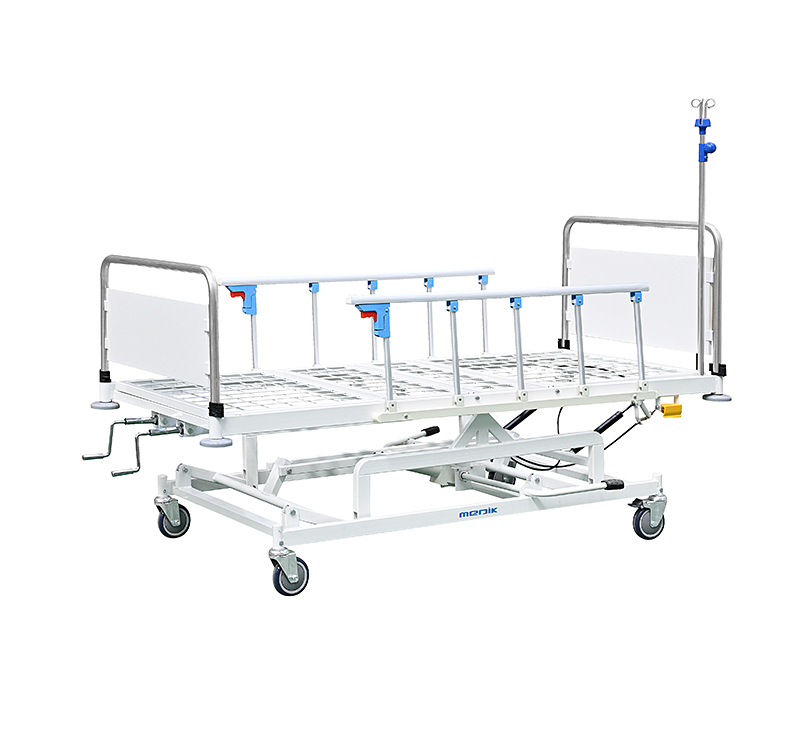

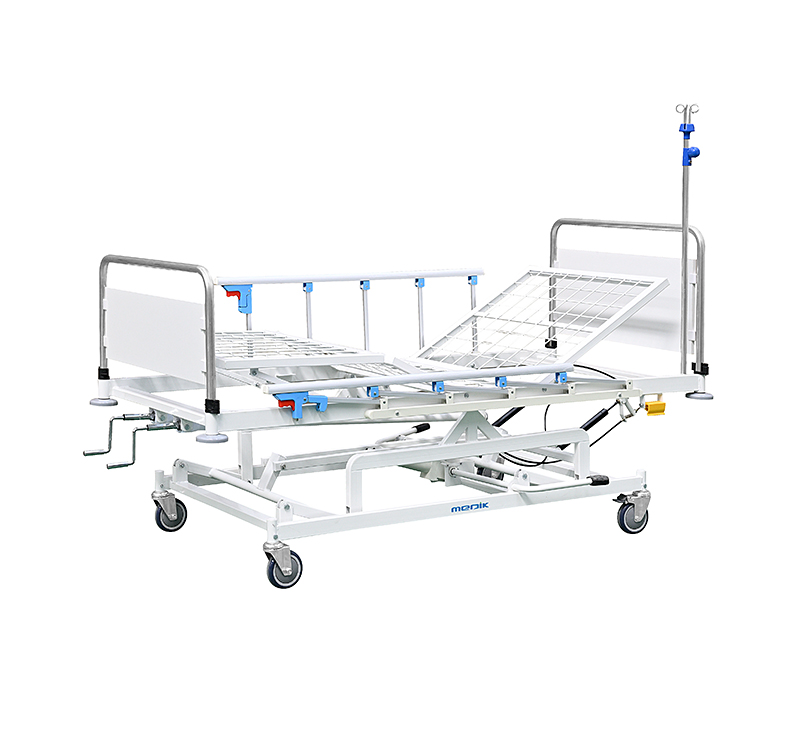

YA-H5-1 Five Function Hydraulic Hospital Bed

Share:

Model: YA-H5-1

Overall Size2100*950*500-850mm

Safe Working Load: 200kg

Functions: Backrest, Footrest adjustable, High-low, Trendelenburg, Revere-Trend

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts



  • Product Details

The YA-H5-1 is a hydraulic bed, with effortless adjustment for height and pneumatic adjusting Trendelenburg. The heavy-duty structure and easy adjustment are ideal for areas with power shortages.

Main features

- Bed Frame electrophoresis and powder coating

- Mesh bed platform, easy to ventilate

- Stainless steel with MDF headboard and footboard, removable

- Back section adjusted by the crank

- Knee section is adjusted by the crank

- Height adjusted by hydraulic pump

- Trendelenburg and Reverse Trendelenburg adjust by gas spring

- Castors 125mm diameter,2 guide and 2 with brake

Technical Specification

ModelYA-H5-1
Overall  Size2100*950*500-850mm
Lying surface1950*900mm
Back section adjustable0° to 60°
Foot section adjustable0° to 40°
Height adjustable500-850mm
Trend&reverse trend0°to 10°
Safe working load200kg
