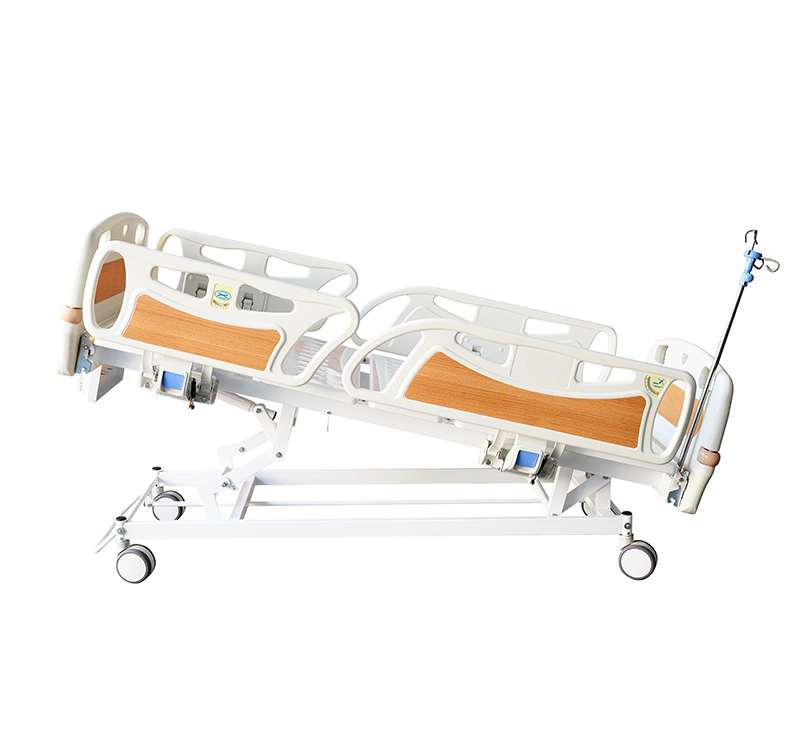

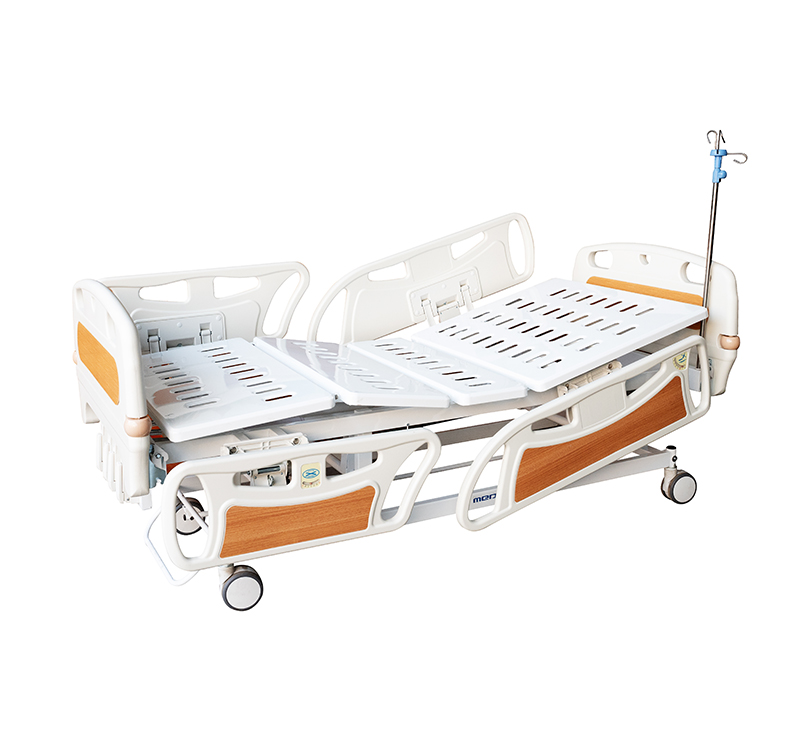

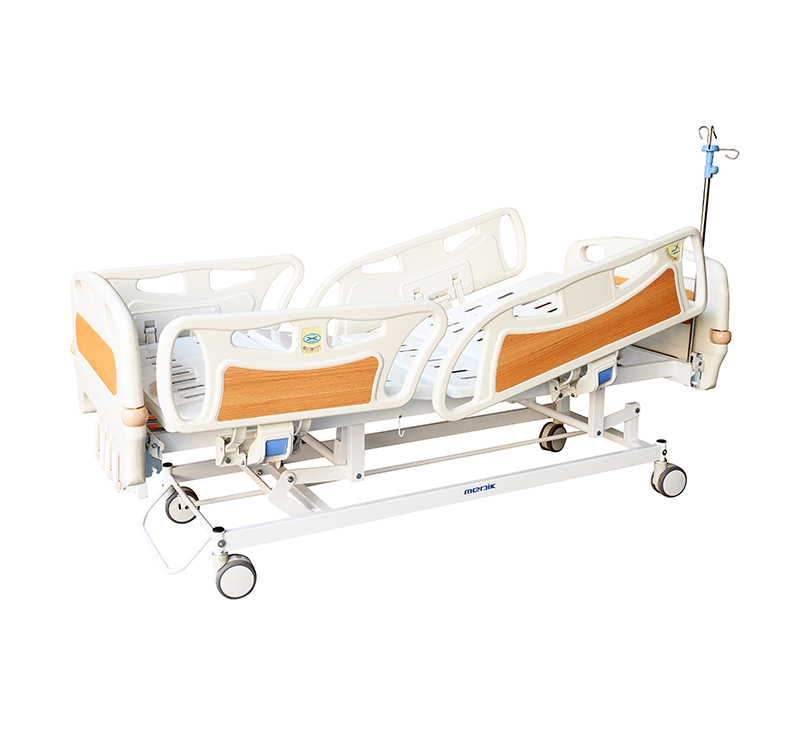

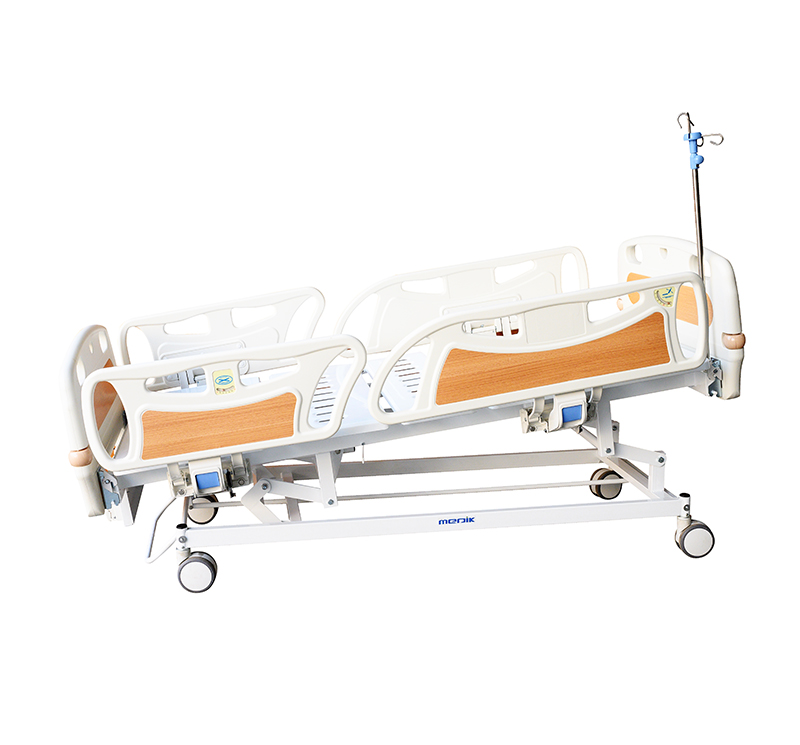

YA-M5-1 Lux 5 Functions Manual Hospital Bed

Share:

Model: YA-M5-1

Overall Size: 2490*1100*520-770mm

Safe Working Load: 195kg

Functions: Backrest, Footrest adjustable, High-Low, Trendelenburg, Reverse Trendelenburg

Color options:  Green, Blue, Wood

After-sale Service: Online technical support

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

Specification

- Bed Frame electrophoresis and powder coating

- With articulated ABS soft joint between different platform sections

- Handrails Four split side rails, drop down under the bed platform

- Detachable head/footboard with easy lock

- 4-piece foldable hand cranks

- Castors central brake system with a wheel diameter of 125mm

- Bumper castors on 4 corners of the bed

- With an angle indicator embedded in the railing for the back

Technical parameters

ModelYA-M5-1
Overall  Size(L*W*H)2490*1100*520mm (98″ x 43″ x 20.5″)
Lying surface2300*900mm (90.5″ 35.5″ )
High-Low520-770mm (20.5″ – 30.3″ )
Back section adjustable0° to 75°
Knee section adjustable0° to 40°
Trendelenburg0° to 12°
Reverse trendelenburg0° to 12°
Caster125mm  ( 5″ )
Safe working load195kg(430 Ibs)

Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 4 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces
