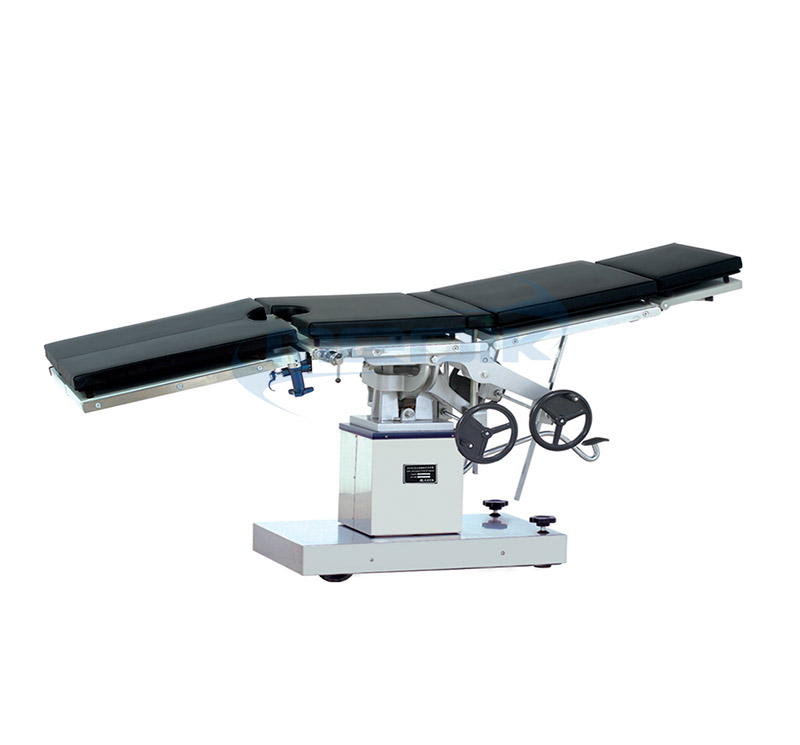

YA-05M Manual Surgical Table

Share:

Model: YA-05M

Overall Size: 2100*480*750-950mm

Loading capacity :180kg

Certificate: ISO/CE

  • Product Details

Main features

- Application: For various surgical operations(head, neck etc.) also orthopedic operations with traction frame

- Structure: Boasting double beds, control on both sides to achieve different positions

- Chassis: Stainless steel base

Specifications

ModelYA-05M
Overall size2100*480*750-950mm
HI-LOW(750-950)±50mm
Head board fold upward and fold downward≥45°/≥90°
Back board fold upward and old downward≥75/≥18°
Leg board fold downward and fold outward≥90°/≥90°
Trendelenburg and Reverse-Trendelenburg≥20°/≥30°
Left and right tilting angle≥18°
Waist board lifting≥120mm
Loading capacity180kgs
Packing126*78*105cm=1.03M3   G.W.:280kgs

Standard accessory

1 pair armrests

1 pair waist grab holder

1 pair shoulder supporter

1 pair leg holders

1pc anesthesia screen

Imported Y style hermetic ring

Hydraulic oil pump for elevation
