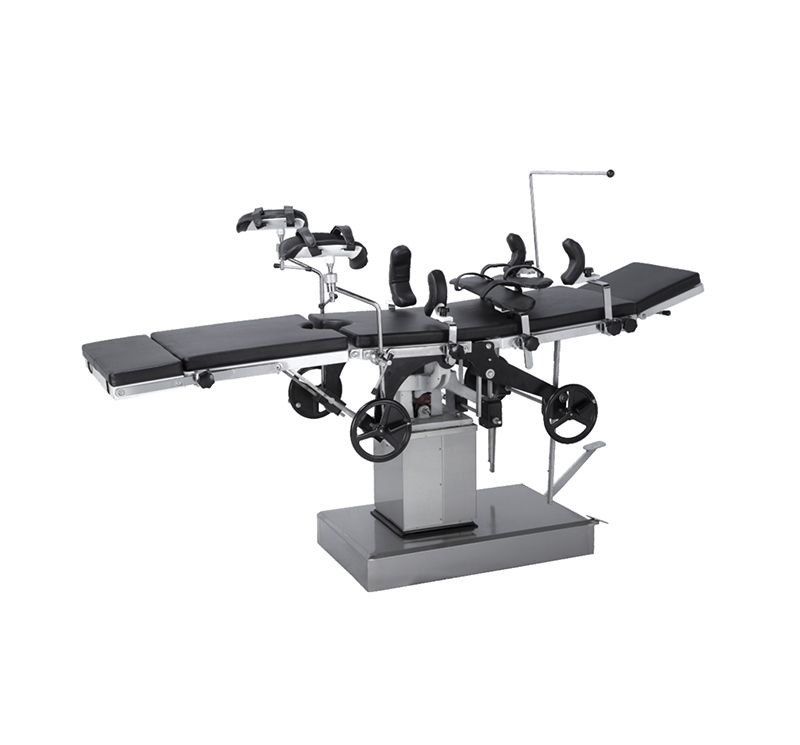

YA-06M Manual Operation Table

share

Model: YA-06M

Overall Size: 2010*480*750-950mm

Loading capacity 180kg


  • Product Details

Main features

- Operating table is used of general operations in chest surgery,department of ophthalmology, department of otolaryngology, department of obstetrics and gynecology,urological department.

- Reasonable structure, modern design and complete accessories.

- Simple and flexible operation, safe and reliable positioning.

- The leg board can be extended and downward folded 90°.

- Waist board lifting≥120mm.

- Left and right tilting angle≥18°.

- Hydraulic oil pump for elevation.

- Imported Y style hermetic ring.

- Chassis stainless steel

- Platform stainless steel

Technical parameter

ModelYA-06M
Overall size2100*480*750-950mm
HI-LOW(750-950)±50mm
Head board fold upward and fold downward≥45°/≥90°
Back board fold upward and old downward≥75/≥18°
Leg board fold downward and fold outward≥90°/≥90°
Trendelenburg and Reverse-Trendelenburg≥20°/≥30°
Left and right tilting angle≥18°
Waist board lifting≥120mm
Loading capacity180kgs
Packing126*78*105cm=1.03M3   G.W.:280kgs

Standard accessory

1 pair armrests

1 pair waist grab holder

1 pair shoulder supporter

1 pair leg holders

1pc anesthesia screen

Imported Y style hermetic ring

Hydraulic oil pump for elevation
