What is a 3 crank hospital bed?

First of all, 3 crank hospital bed is a manual bed, it is operated by the crank to drive the movement of the bed to get various positions for patient’s comfort or clinical need.

There are 3 cranks installed under frame near the bed foot panel, the articulated bed surface will move to have fowler or semi fowler positions by rotating the crank.

Normally, one crank is to move the back section from 0~75 degree, second crank is to move the foot section from 0~40 degree, while the third crank is to drive the height of the bed to different heights.

However, the third crank can also be designed to operate the bed trendelenburg or reverse trendelenburg instead of height adjustment.

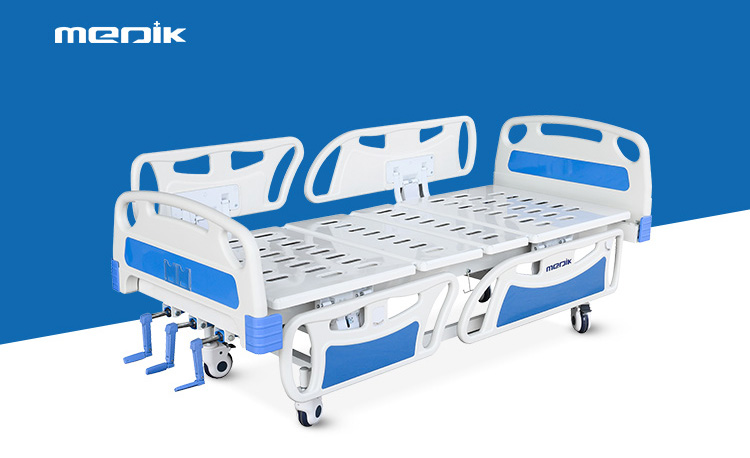

Medik 3 crank hospital bed

Model: YA-M3-1 Overall Size: 2165*985*550-750mm Safe Working Load: 185kg 3 Functions: Backrest, Footrest adjustable, High-Low Color options:  Green, Blue, Wood Caster:  Dia125 (5")	Model: YA-M3-2 Overall Size: 2160*1100*520-770mm Safe Working Load: 205kg Functions: Backrest, Footrest, High-Low Color options:  Green, Blue, Wood Caster:  Dia125 (5")	Model: YA-M3-3 Overall Size: 2160*960*500mm Safe Working Load: 175kg Function: Backrest, Footrest, Trendelenburg Color options:  Green, Blue, Wood Caster:  Dia125 (5")

Medik's custom design team can also track down other models.  Call or e-mail us with your custom needs at +86 15250358182 or info@medik-medical.com.
