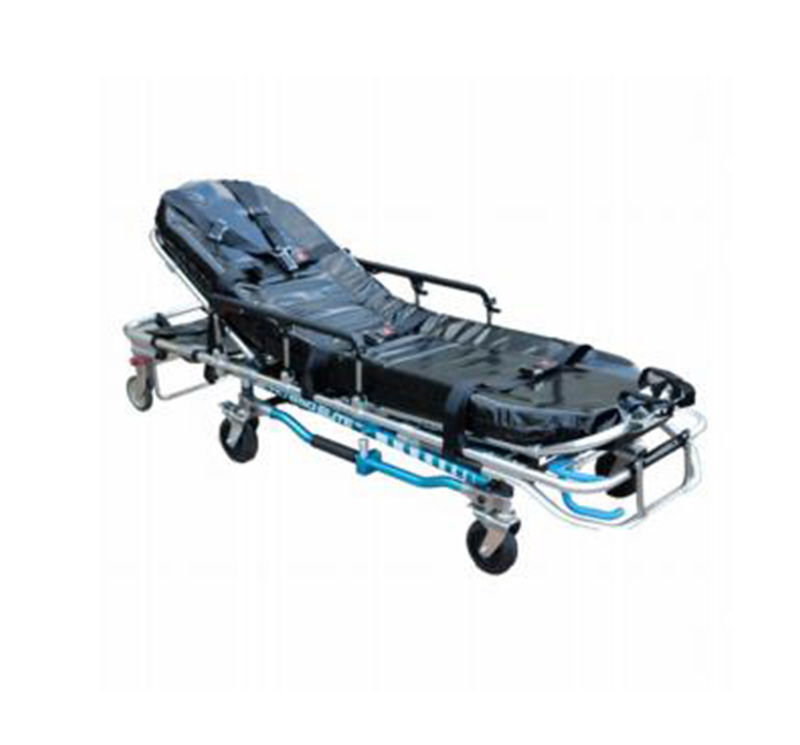

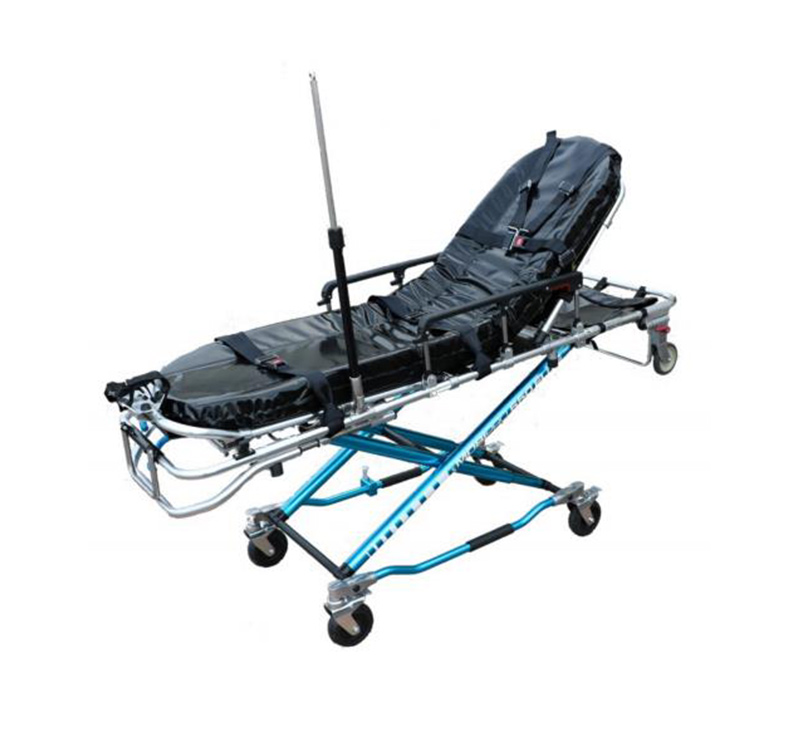

YA-AS15 Folding Manual Ambulance Stretcher Trolley

Model: YA-AS15

Size (High position)：2000x560x1000mm

Size (Low position)：2000x560x380mm

Material: Aluminum Alloy

Certificate: ISO/CE

Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

Next Product Inquire Now

Features

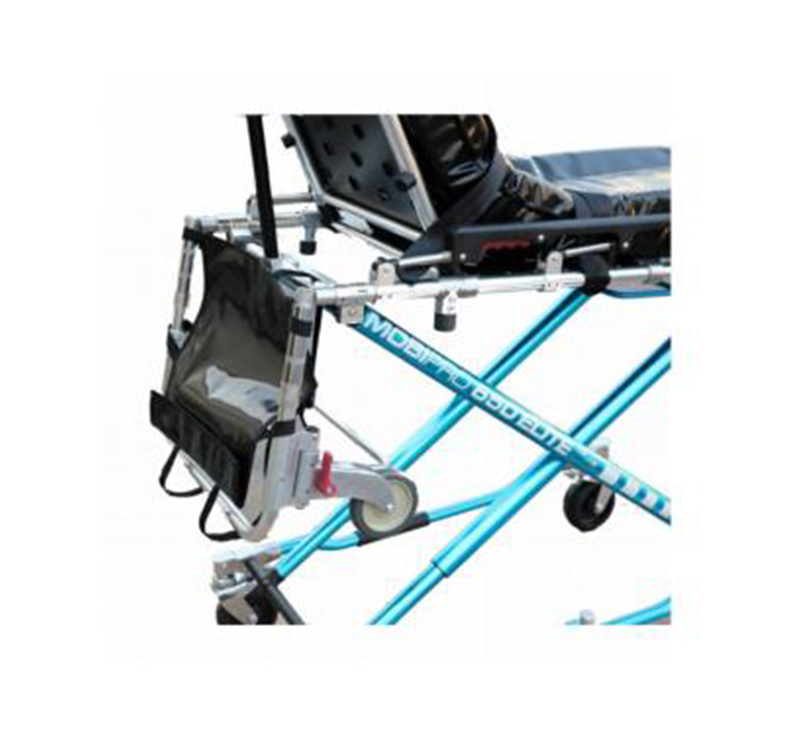

- X-frame undercarriage is easily raised when loading

- When unloading, the safety U-bar will hold the stretcher on the ambulance until the operator releases it

- Breakaway head section

- Adjustable height

- The backrest can be adjusted from 0-75 deg by gas spring

- Swing-down side rails to protect patient when the transfer

- Only one person or two-person can raise and slide the stretcher on to the ambulance

- The stretcher can be locked by the fixing device when ti is in the ambulance

- It is made of high-strength aluminum alloy

- 150mm wide rubber castors

- Used for ambulance, hospitals, emergency centers

Technical parameter

Model	YA-AS15
High position	2000x560x1000mm (78.7″ x 22″ x 39.3″)
Low position	2000x560x380mm (78.7″ x 22″ x 15″)
Maximum angle of the back	75°
Maximum angle of the Knee part	35°
Loading bearing	250kg（550 Ibs）
N.W.	43kg（94 Ibs）
Packing size	2020x690x440mm (79.5″ x 37.8″ x 17.3″)
G.W.	60kg（132 Ibs）
