YA-AS05 Ambulance Wheelchair Stretcher

Share:

Model: YA-AS05

Size (Low position):1960*550*250mm

Material: Aluminum Alloy

Feature: As a stair stretcher

Certificate: ISO/CE

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details
  • Downloads

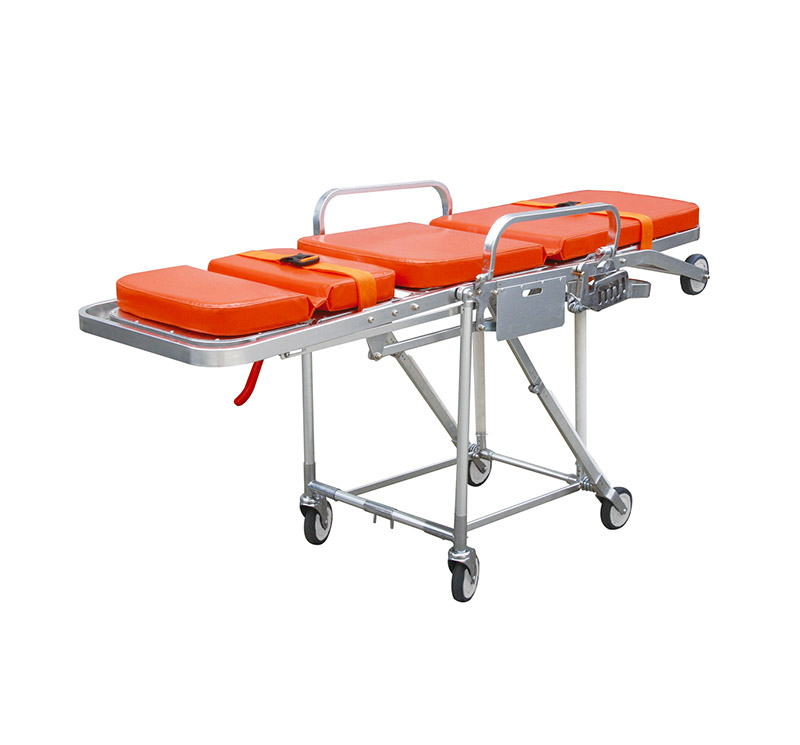

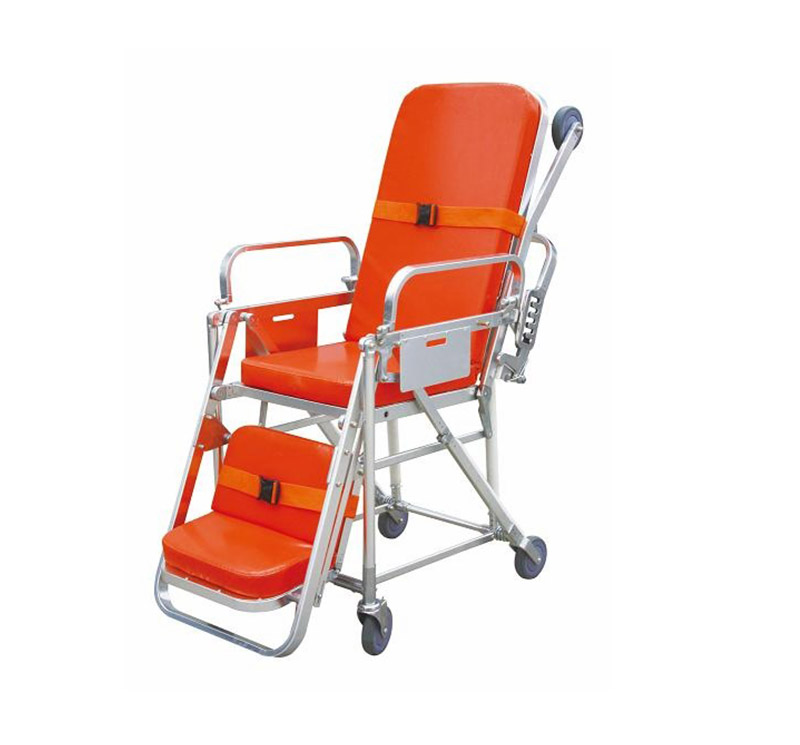

Stretcher for ambulances that can be turned into a chair. Made with structure of aluminum alloy, easy to clean and sterilize and with water-resistant upholstery. Also, it has an adjustable backrest to adapt to the patient's position.

Main features

- Foam mattress with waterproof cover.

- Adjustable backrest for higher comfort.

- The folding legs are controlled by a handle placed on both sides of the stretcher.

- Equipped with braking system.

- Regulated by a pneumatic spring.

- Stair stretcher.

- Material:aluminum alloy

- Anti-corrosive and easily cleaned and sterilized.

Technical parameter

ModelYA-AS05
Size (High position)1960*550*860mm (77.1″ x 21.6″ x 33.8″)
Size (Low position)1960*550*250mm (77.1″ x 21.6″ x 9.8″)
Back section adjustable0 - 85°
Loading capacity159kg(350 Ibs)
Carton Size (1pc/carton)1980*620*260mm (78″ x 24.4″ x 10.3″)
N.W.34kg(74 Ibs)
G.W.40kg(88 Ibs)
