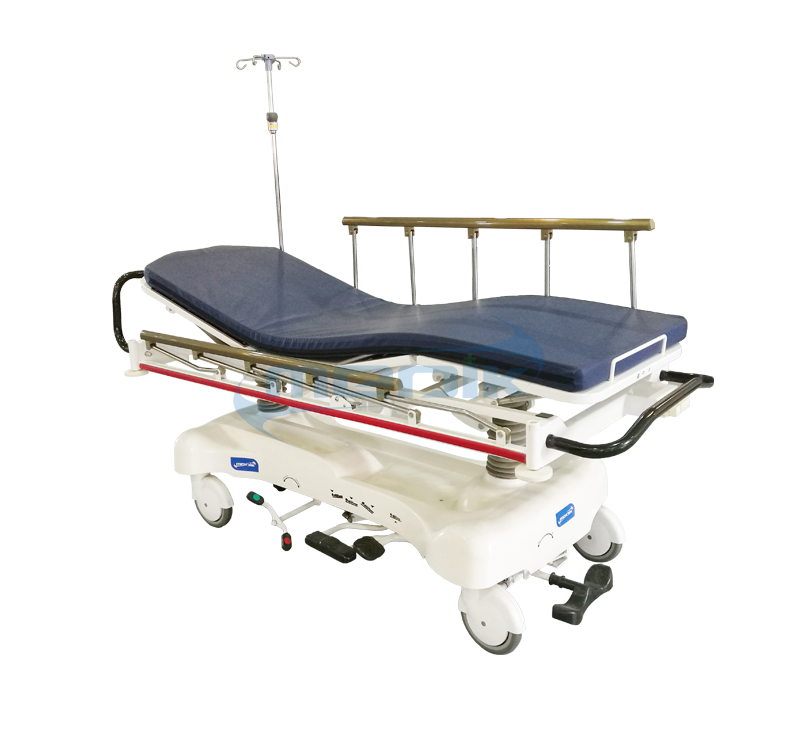

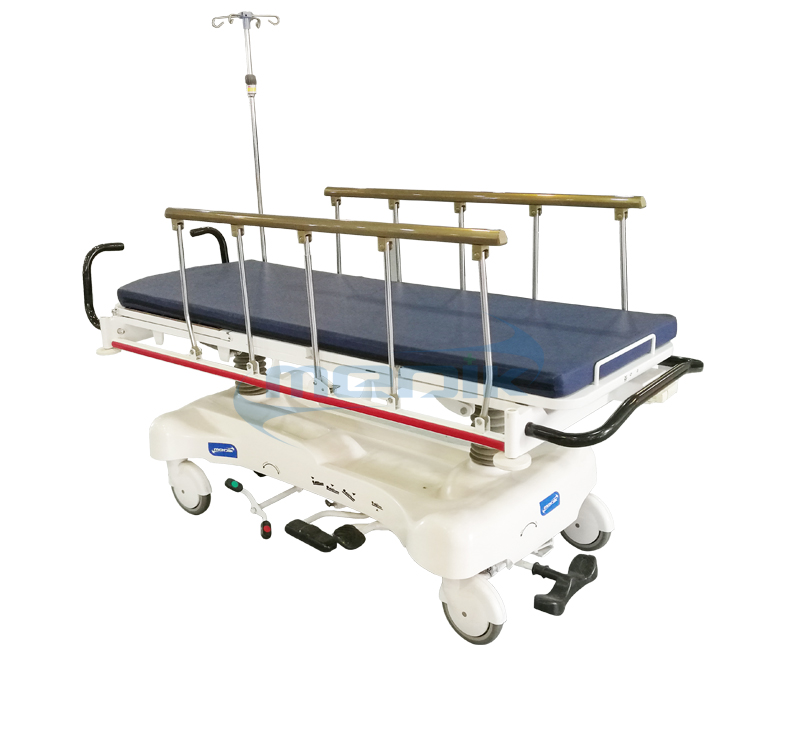

Model: YA-111B-E
Overall Size: 210*85*68-98cm
Safe Working Load: 180kg
Functions: Back section adjustable,Knee section adjustable, High-low, Trendelenburg ,Reverse trendelenburg
Key features:
Reliable hydraulic pump of Power-packer brand
Two column structure, accessible for C-arm
Foldable pushing handle on both ends
Robust collapsible railing, easy to lock up
Central locking system with 200mm diameter, easy for transportation
With 5th retractable wheel in the middle for direction
Moulded base chassis with reservation for oxygen cyliner and patient belongings
Foot operation padel on available on both sides
Central brake padel located on bed end side, can brake it easily
Bumper caster located on the four corners
X-ray translucent platform (optional)
Monitor shelf (optional)
Technical Specifications:
| Specification | |
| Model | YA-111B-E |
| Size | 210*85*68-98cm |
| Weight(without surface/accessories) | 128kg |
| Safe Weight Load | 180kg |
| Functions: | |
| High-Low: | 68-98cm |
| Back section adjustable | 0° to 70° |
| Knee section adjustable | 0° to 30° |
| Trendelenburg | 0° to 12° |
| Reverse trendelenburg | 0° to 12° |
| Standard Accessories: | |
| X-ray translucent function of platform is available | |
| With pushing handle on the head end, With a crank to operate the foot section | |
| Side rails: 2pcs, Aluminum alloy, collapsible | |
| Back section is operated by gas spring | |
| With US Acutant hydraulic pump and storage bin for oxygen tank | |
| Equipped with 1 I.V. pole,1 mattress, urine hooks | |
| With the middle castor for steer direction, Bumper castors on 4 corners | |
| Castors: Dustproof castors with central locking system Castor diameter of 200mm | |
